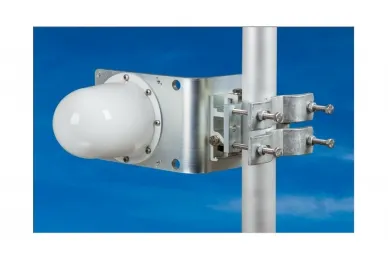

Jirous Directional antenna JCMA-17

Product code: #43199
Manufacturer: Jirous
  • Frequency range: 17.1 – 17.3 GHz
  • Beam width: 11°
  • Input/output: Circular waveguide Ø 11 mm
  • Polarization: Vertical / Horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Directional antenna JCMA-17


The JCMA-17-50 dual-polarization directional antenna is designed for links in the 17 GHz frequency band. The antenna was designed as a small antenna for short-range directional links.

Electrical Parameters:

  • Frequency Range: 17.1 – 17.3 GHz
  • Gain: 22.6 ± 0.6 dBi
  • Return Loss: ≥ 18 dB
  • Beamwidth -3 dB: 11°
  • Front-to-Back Ratio: ≥ 45 dB
  • Cross-Port Isolation: ≥ 45 dB
  • Polarization: Vertical / Horizontal

Mechanical Parameters:

  • Input / Output: Circular Waveguide Ø 11 mm
  • Housing: UV-resistant ABS plastic
  • Mounts on a Ø 40 - 120 mm mast
  • Antenna weight: 2.2 kg (4.9 lbs)
  • Bracket weight: 3.5 kg

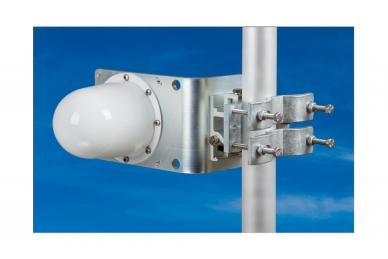

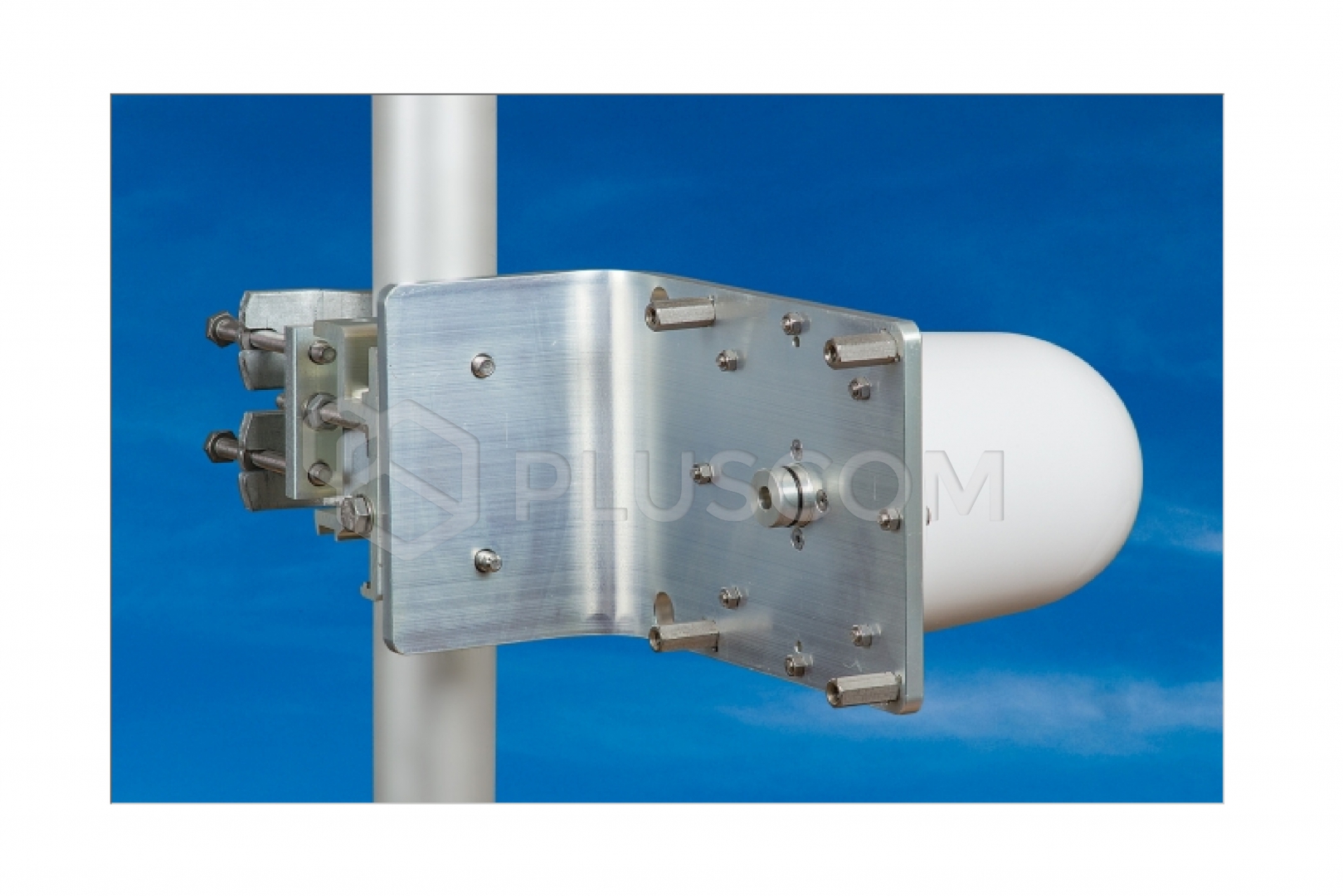

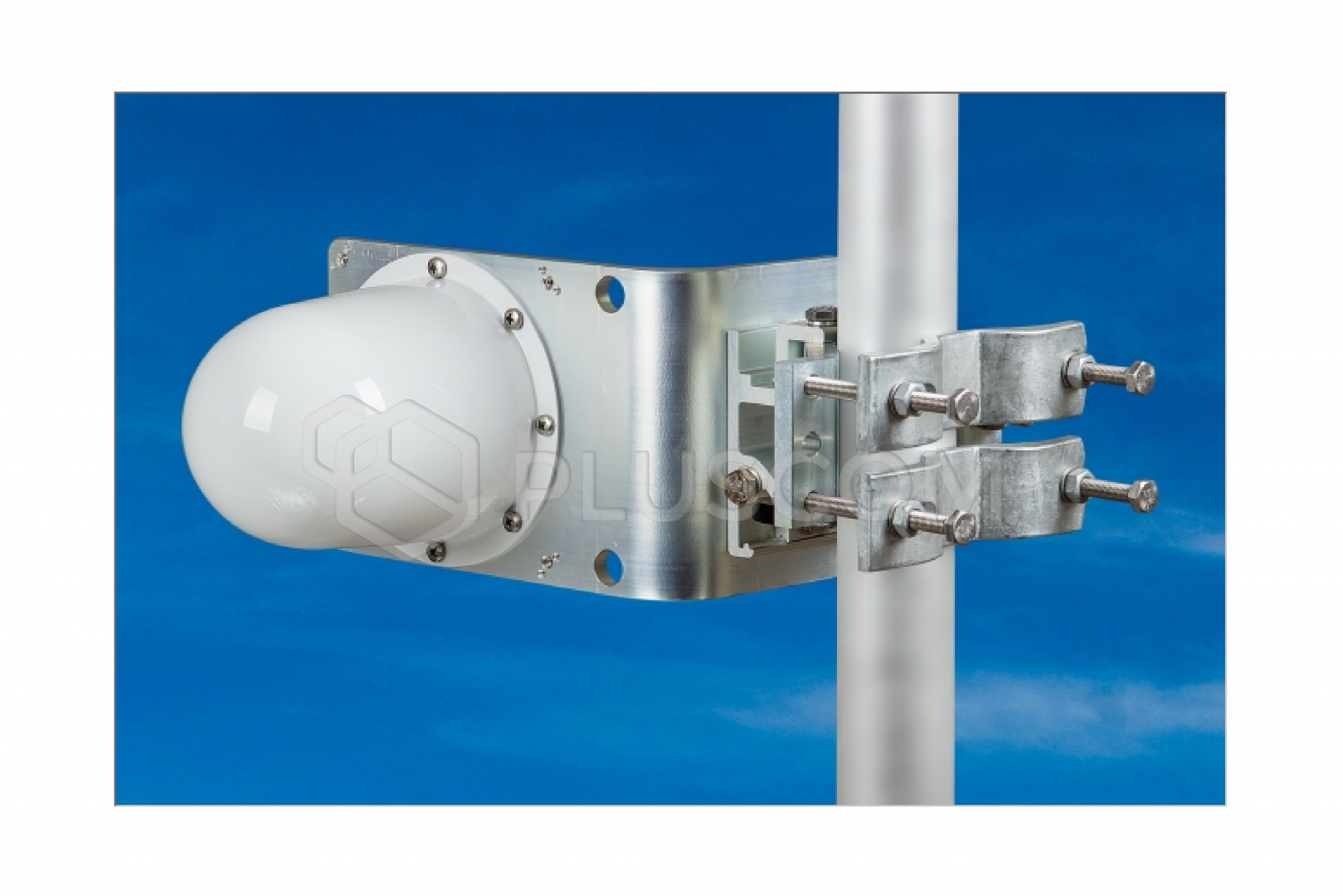

The antenna is supplied with a robust bracket that allows for easy mast mounting. The bracket can be mounted separately on the mast.

Then simply hang the antenna with the built-in microwave module. The entire antenna system is characterized by exceptional stability in wind. The bracket allows for precise elevation (gradient) and azimuth adjustment within a range of ±20°.
Download
Datasheet 0.51 MB
