Jablotron JA-180PB wireless PIR and glass-break combined detector

Out of stock. Archived Product.

Items bought with this product:
LS14500 3.6V lithium battery

The JA-180PB combines the JA-180P PIR motion sensor with a glass-break sensor inone housing. Each sensor is enrolled to the control panel separately.

Detection characteristics of the PIR sensor

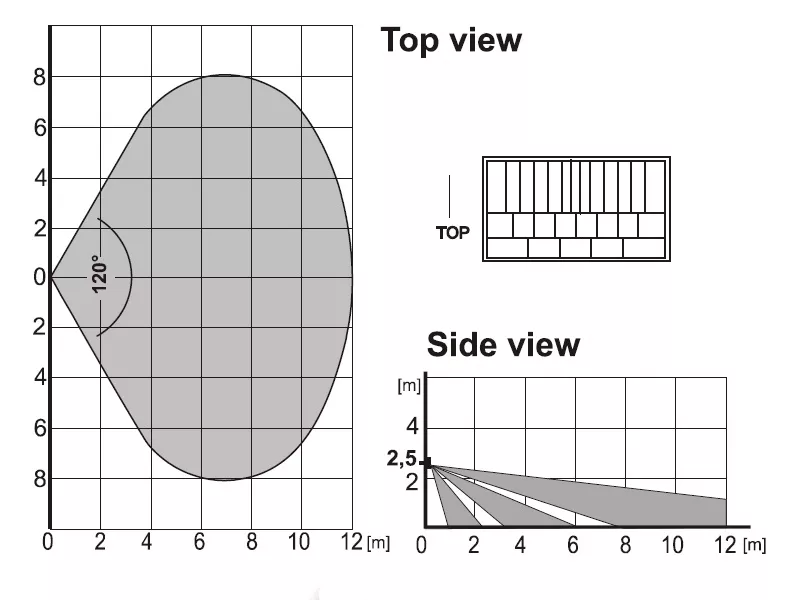

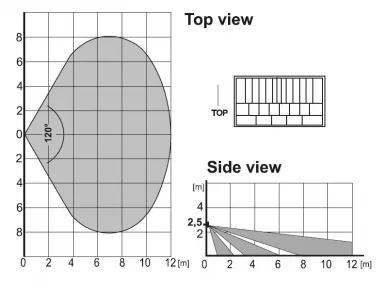

The default lens supplied covers an angle of 120° and a distance of12 metres. The area is covered by three beams as shown in thefollowing picture.

Jablotron JA-180PB wireless PIR and glass-break combined detector

Jablotron JA-180PB wireless PIR and glass-break combined detector

Detection characteristics of the glass-break sensor

The directional response of the glass-break sensor has near spherical characteristic and it is possible to detect breaking glass up to 9 metres away as can be seen in the below diagram. The size of glass should be at least 60 by 60 cm. For smaller sizes thedetection range can be shorter.

Only breaking glass forming part of the walls within the protected area can be detected. All kinds of glass can be protected including windows covered with unbreakable folio.

Warning: This type of detector is not suited to sensing holes beingcut through glass by glass cutters. For this reason, valuables nearwindows should be covered by PIR sensors.
