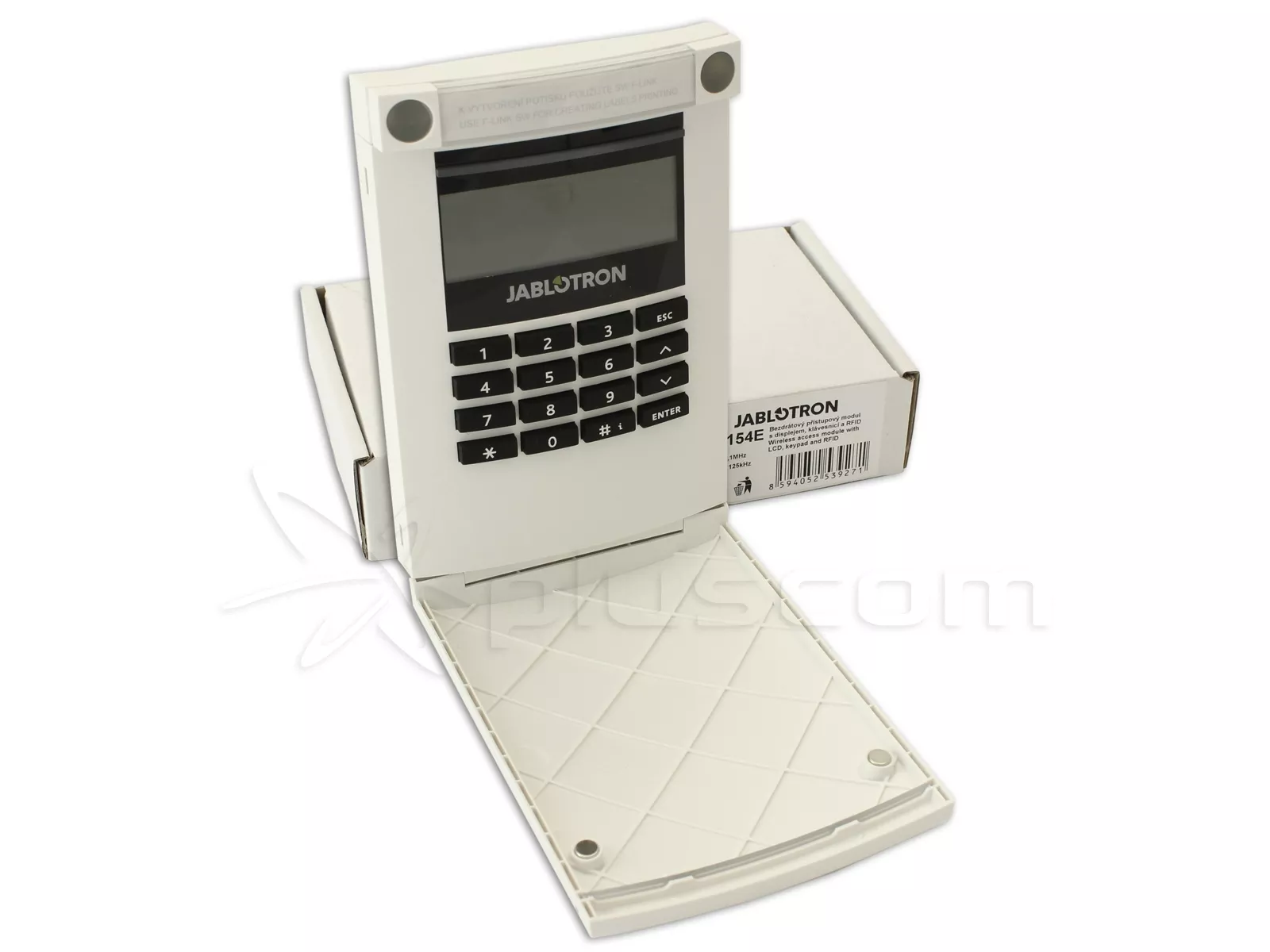

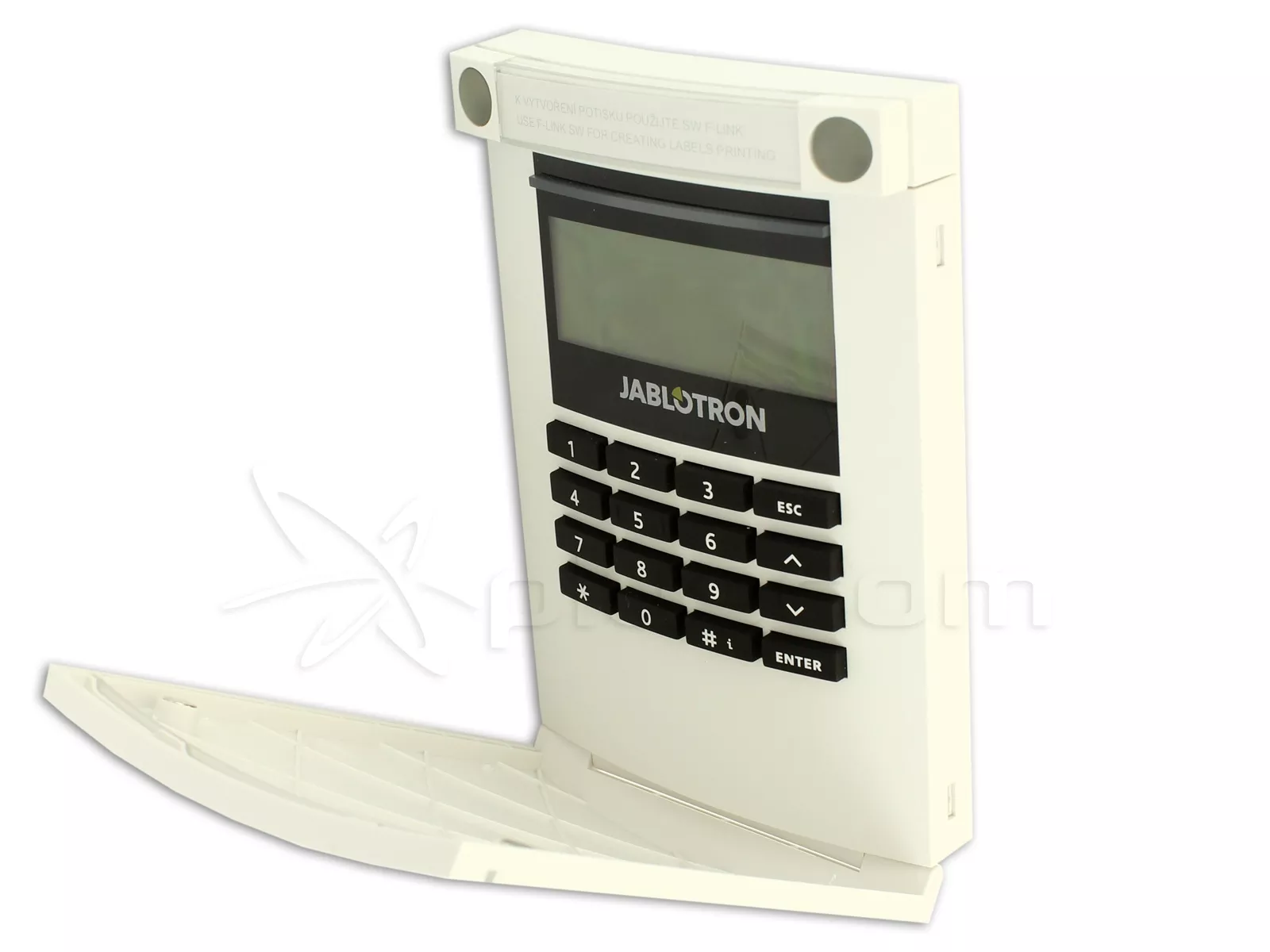

The JA-154E is a two-way wireless access module with an LCD display, a keypad and an RFID reader for security system control. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments.
The unit allows simple system control using interlocking segments. It features Smart Radio Wake-up (SRW) which reacts to, for example, a wireless door detector being triggered and effects the automatic termination of sleep mode in a set system during the entrance delay.

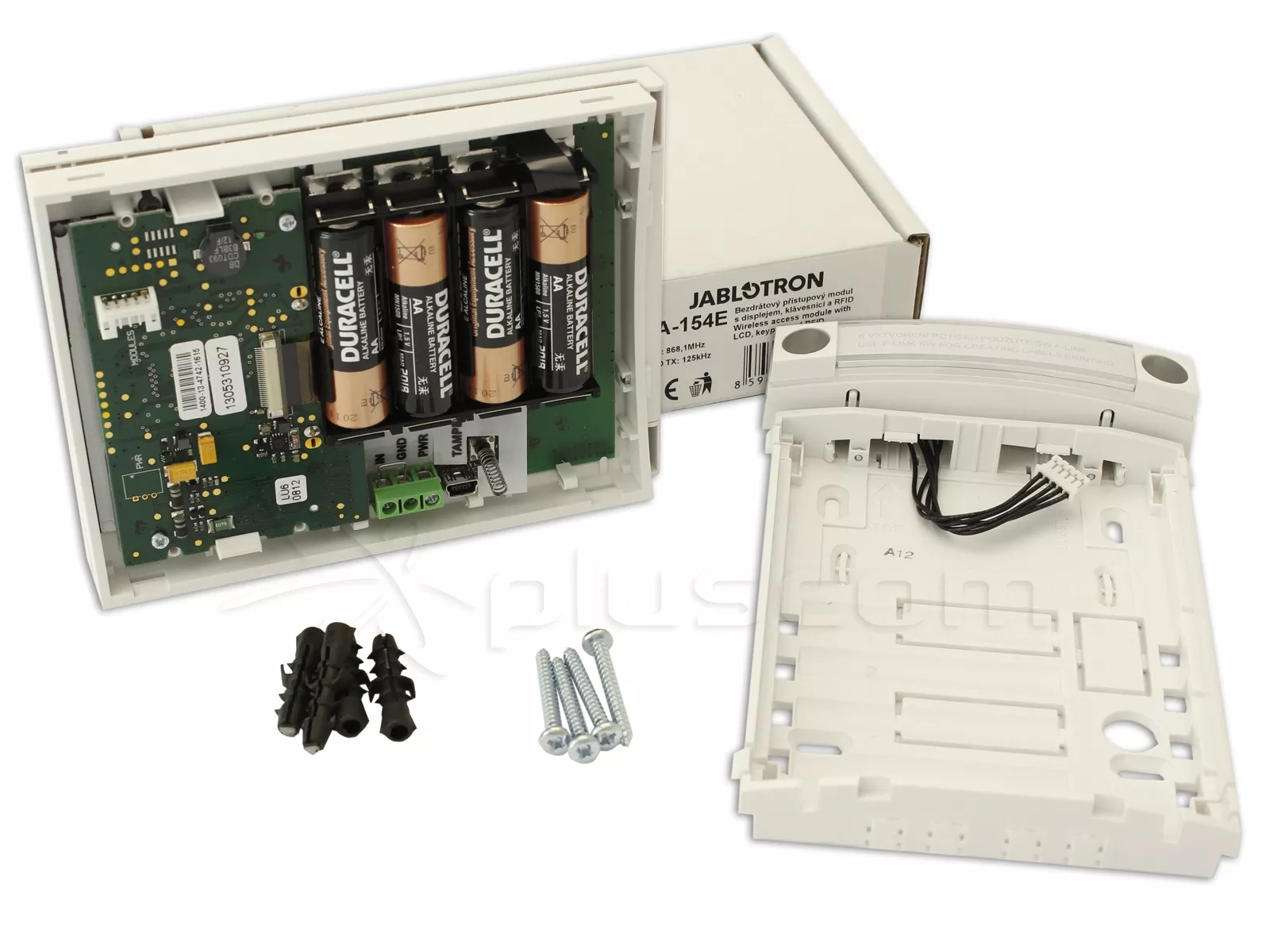

The module is powered by 4pcs AA alkaline batteries.
Alternative power
The keypad can be powered from an external 12V DC power supply via the PWR and GND terminals. The DE 06-12 powersupply has the advantage of hidden installation.
The keypad does not sleep if external power is used. It permanently communicates with the control panel and it indicates the system status according to the Devices / Internal settings. Leave the batteries inside the keypad.
When the mains power is cut off, the keypad will work from the batteries.
Battery replacement
The system automatically reports a Low Batt from the keypad.
Before you change the batteries, switch the system to service mode, otherwise a tamper alarm will be triggered.
Unit modifications
If you need to change the segments (add or take out), release them by levering on both sides of the segment near the buttons. When you havefinished changing the amount of segments the new JA-192Es are not always immediately visible in the F-Link software. For synchronization,click on the Upload button.
