Jablotron JA-152E wireless access module with RFID

Out of stock. Archived Product.

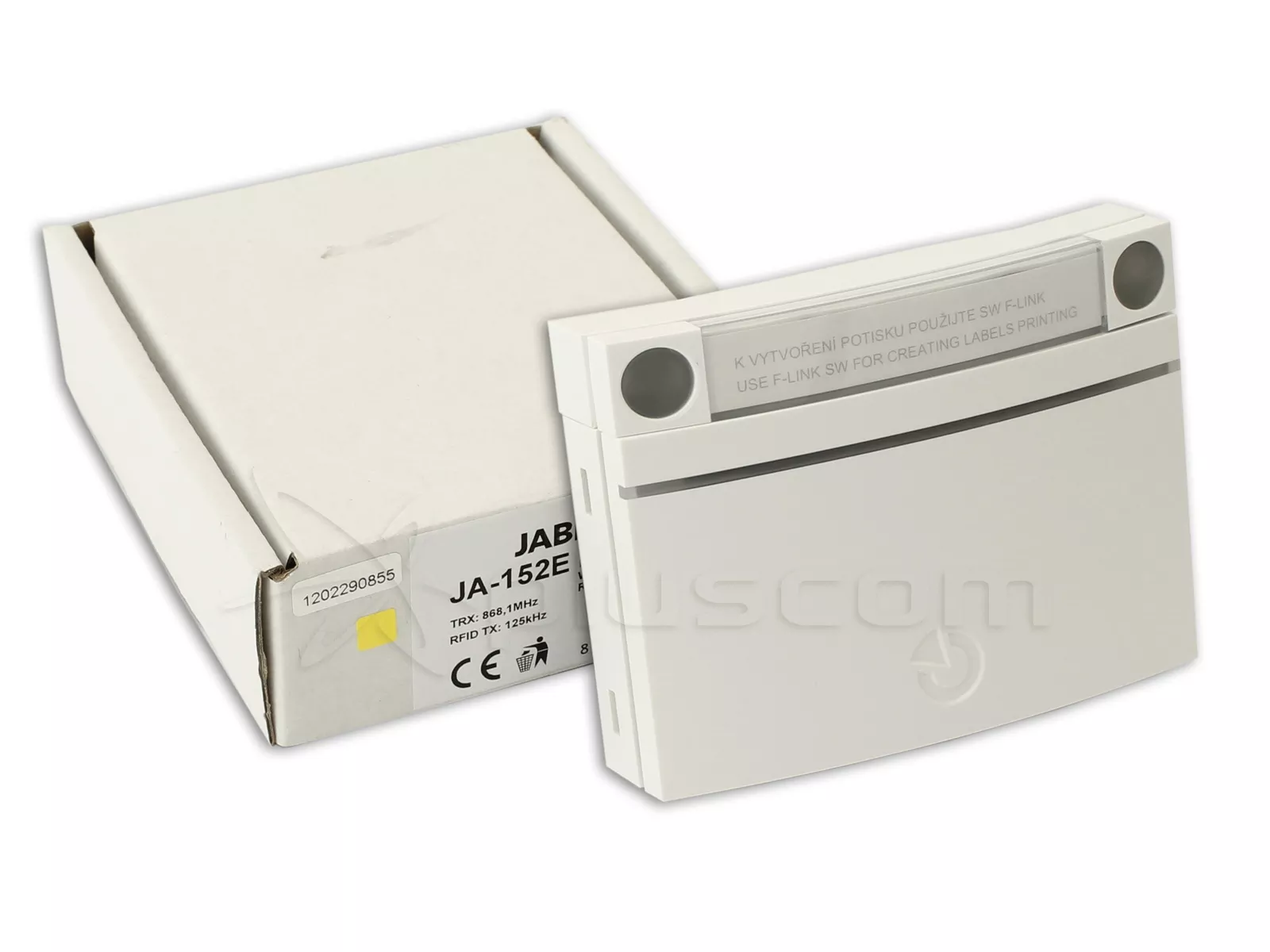

The JA-152E is a two-way wireless access module with RFID reader to operate a security system.

Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments.

{REL_1745}

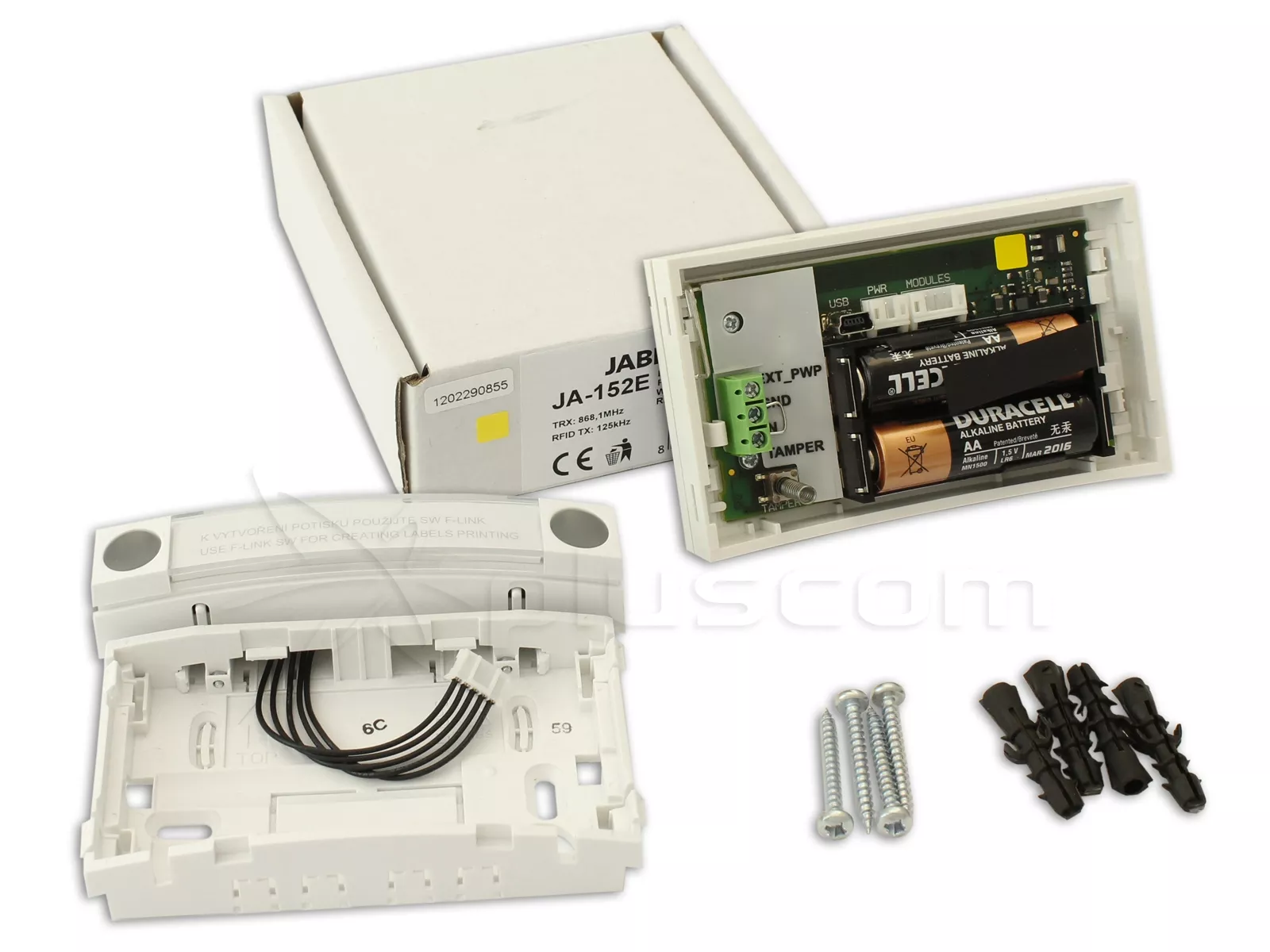

Battery replacement

The system automatically reports a Low Batt from the access module. Before you change the batteries, switch the system toservice mode, otherwise a tamper alarm will be triggered.

Alternative power

The module can be powered from an external 12V DC power supply via the PWR and GND terminals.

The DE 06-12 power supply has the advantage of hidden installation.

The access module does not sleep if external power is used. It permanently communicates with the control panel and it indicates the system status according to the Devices / Internal settings.

Leave the batteries inside the module. When the mains power is cut off, the module will work from the batteries.

Specification
Range: 200m
Download
