Jablotron JA-110N-DIN Bus DIN power output module

Out of stock. Archived Product.

PG output module JA-110N-DIN connector is used to connect to the DIN rail and control devices supplied with 230V/16A.

Jablotron JA-110N-DIN Bus DIN power output module

Jablotron JA-110N-DIN Bus DIN power output module

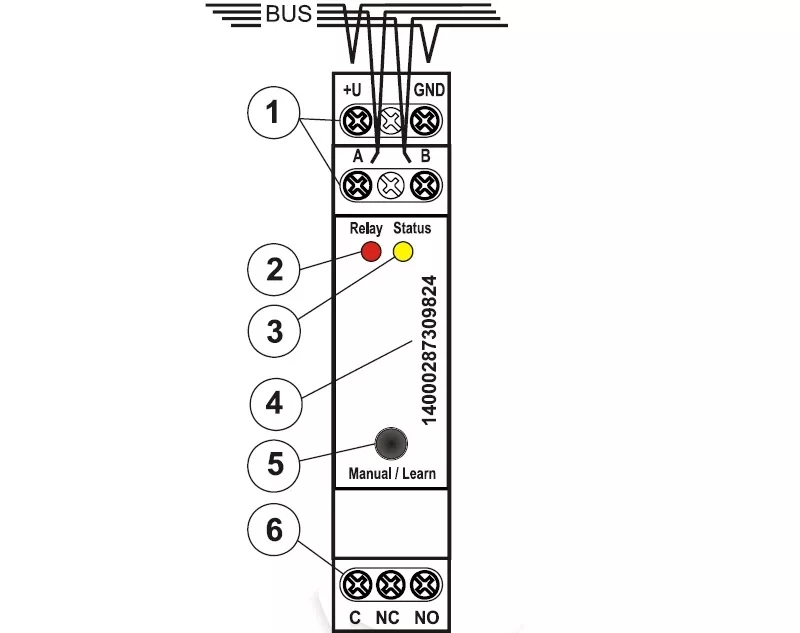

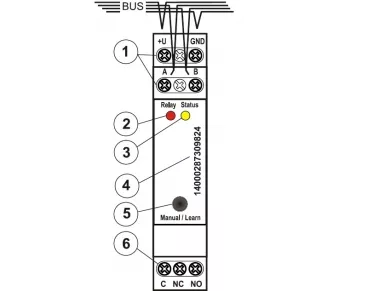

Figure:
1 = bus terminals (CC-01(02) cable): +U red, GND black, A yellow, B green);
2 = red LED – relay triggering;
3 = yellow LED - failure;
4 = production code;
5 = enrollment or manual trigger button;
6 = relay terminal
Specification
Download
