Jablotron JA-106KR control panel with GSM/GPRS/LAN and radio

Out of stock. Archived Product.
Jablotron JA-106KR is extended Jablotron 100 system control panel. It is designed to protect large buildings, offices and businesses. It is equipped with a JA-110R module and is recommended for large buildings with many wired equipment.

Connectors onboard:
  • 1 connector for PSTN (JA-190X) module
  • 2 BUS terminas
  • 1 connector for radio (JA-110R) module
Set contain:
  • control panel JA-101K
  • radio module JA-110R
  • enclosure
  • transformer
  • GSM antenna

Battery is sold separately - recommended is 12V 18Ah.

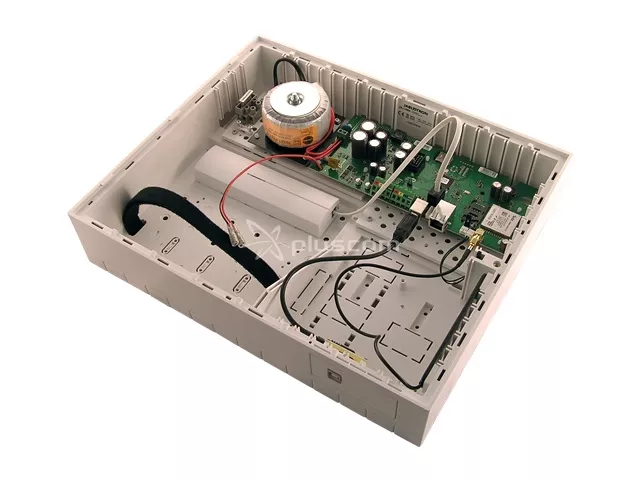

Jablotron JA-106KR control panel with built-in GSM/GPRS/ LAN communicator and radio module

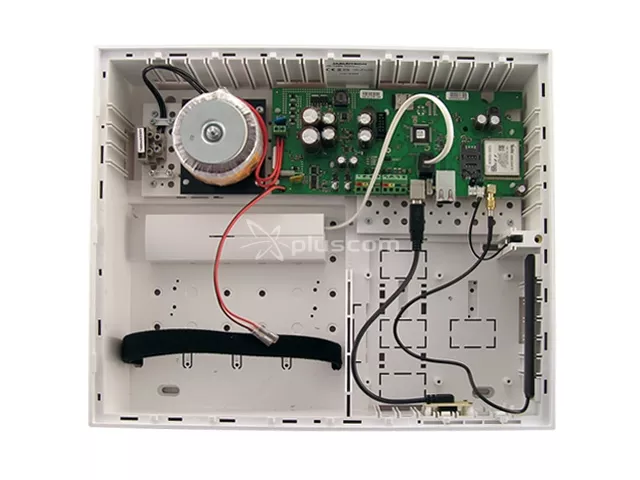

Jablotron JA-106KR control panel with built-in GSM/GPRS/ LAN communicator and radio module

System should be installed by a trained Jablotron technician with valid certificate issued by authorized distributor only.
Myjablotron service can be enabled by trained Jablotron technician with valid certificate issued by authorized distributor only.
Configuration software IS NOT SUPPLIED with control panel.

Specification
Pamięć wydarzeń : 1000000,00
Max. battery capacity: 12V, 18Ah
