HLG-80H-12B Mean Well 12V/60W/5A LED power supply

70,55 EUR including 23.00% VAT
Product code: #22625
Manufacturer: Pulsar
  • Output parameters: DC 12V 5A max 60W
  • Possibility of remote control of output current
  • Built-in Active PFC function
  • 3 in 1 dimming
  • Lifetime > 62000h

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply Pulsar HLG-480H-24B HLG 24V/480W/20A LED power supply HLG-150H-48B Mean Well 48V/150W/3.2A LED power supply Pulsar HLG-320H-48B HLG 48V/320W/6.7ALED power supply Pulsar HLG-150H-12A HLG 12V/150W/12.5A LED power supply HLG-320H-24A Mean Well 24V/320W/13.34A LED power supply Pulsar HLG-480H-24 HLG 24V/480W/20ALED power supply HLG-150H-12B Mean Well 12V/150W/12.5A LED power supply Pulsar HLG-240H-24B HLG 24V/240W/10A LED power supply Pulsar HLG-120H-24A HLG 24V/120W/5A LED power supply

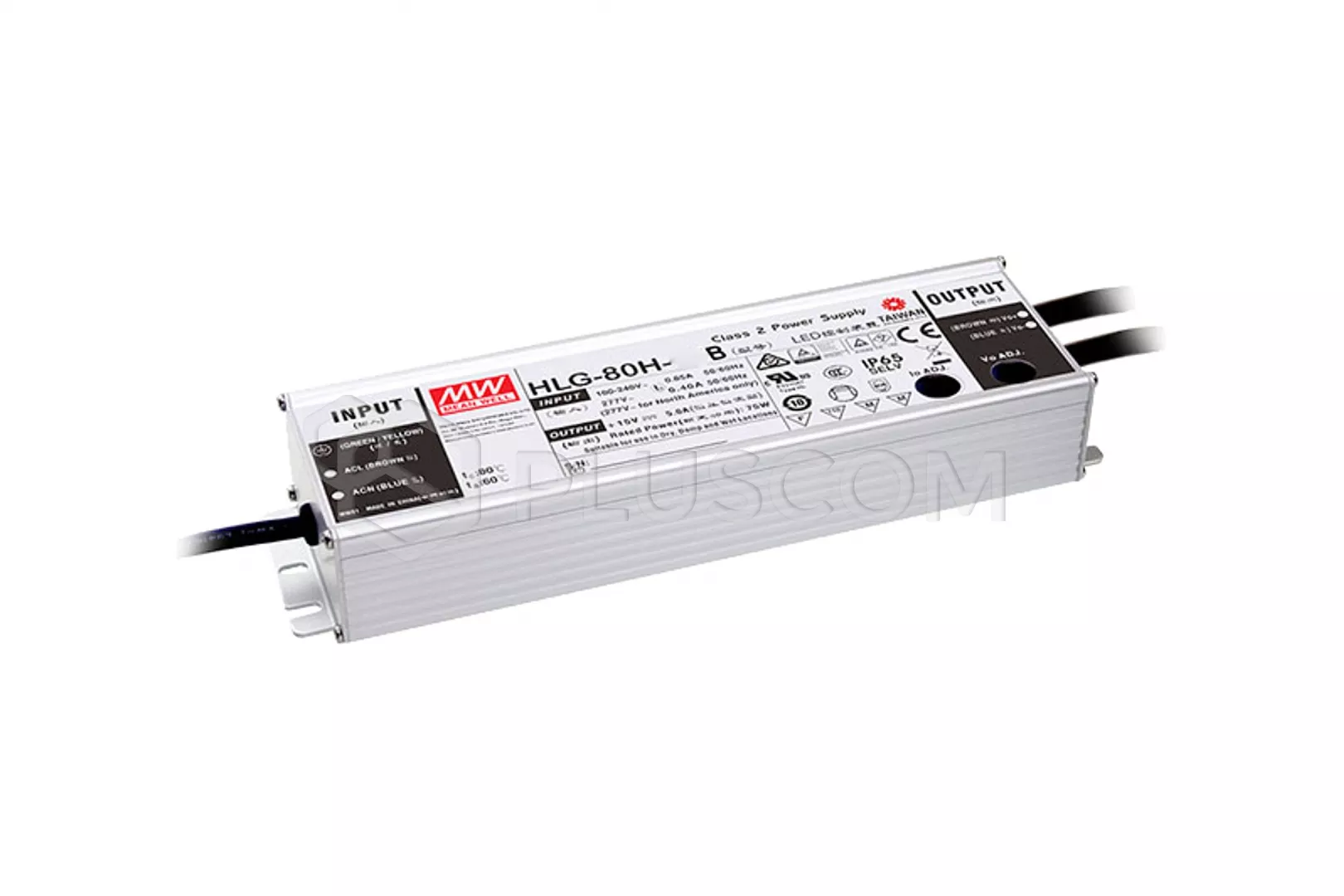

MEAN WELL HLG-80H-12B LED power supply 12V/60W/5A


The HLG-80H-12B constant-current power supply for lighting systems has a power of 80W and the output voltage of 12V. It is closed in a metal housing IP67 and is cooled with open air circulation .
HLG-80H-12B has the ability to remotely adjust the output current - input DIN 3W1 (1 ÷ 10VDC / PWM / resistance). It also has an active PFC function built in and 3in1 dimming function.

PARAMETERS AND FEATURES:
  • output voltage: DC 12V
  • output voltage adjustment range: 7.2-12VDC
  • output current: 5A
  • output current adjustment range: 3-5A
  • power: 60W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 88%
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 80 ° C
  • dimensions: 195.6x61.5x38.8mm
  • weight: 0.84kg

Download
Datasheet 0.74 MB
CE Declaration 0.11 MB
