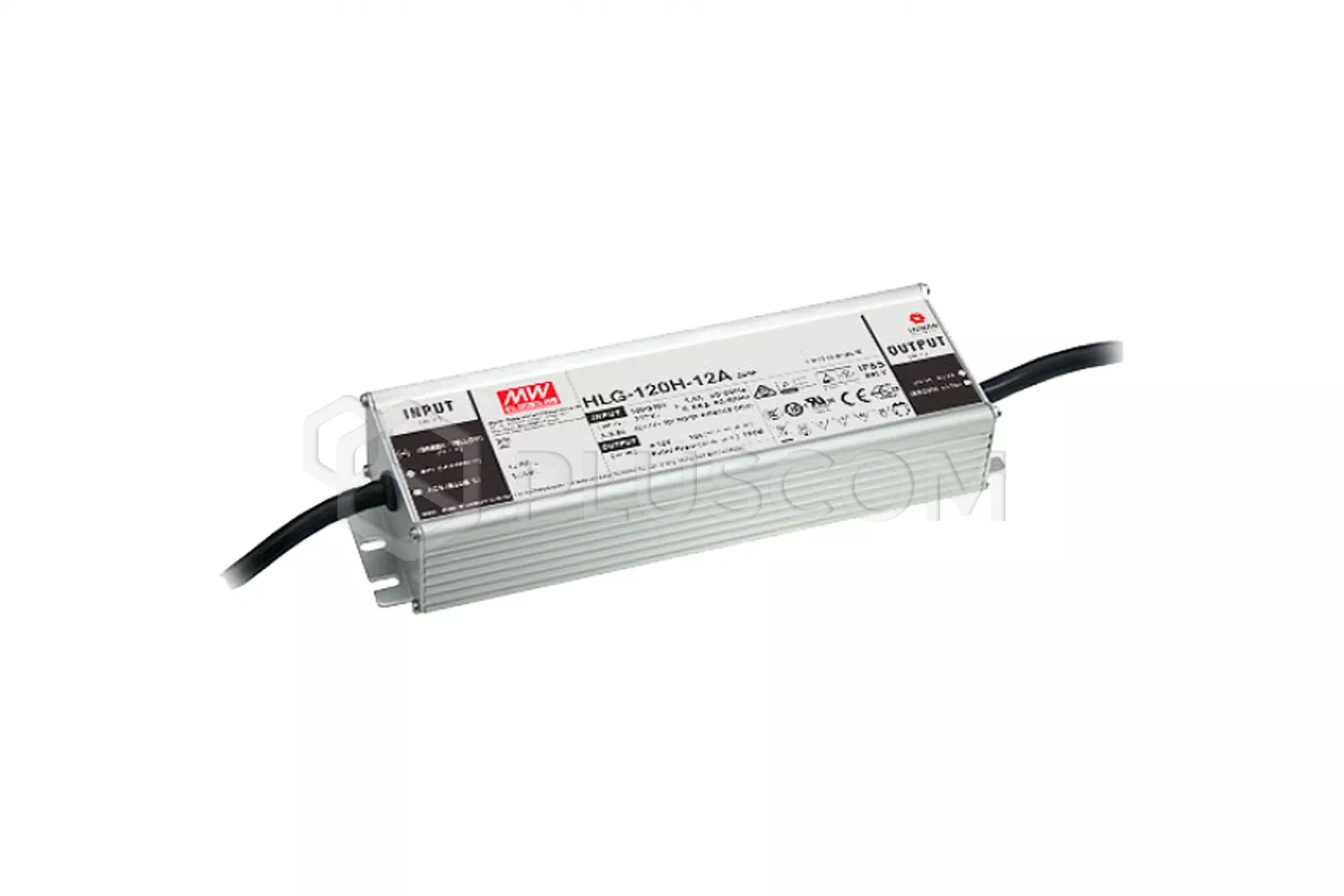

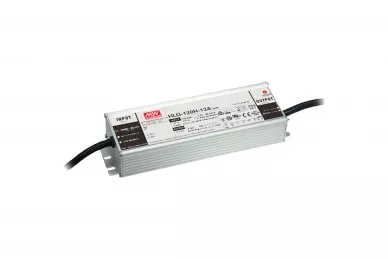

HLG-120H-12A Mean Well 12V/120W/10A LED power supply

86,56 EUR including 23.00% VAT
Product code: #22603
Manufacturer: Pulsar
  • Output parameters: DC 12V 10A max 120W
  • Output current can be adjusted by internal potentiometer
  • Built-in Active PFC function
  • Lifetime > 62000h
  • IP65
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply Pulsar HLG-60H-24B HLG 24V/60W/2.5A power supply Pulsar HLG-240H-12A HLG 12V/240W/16A LED power supply Pulsar HLG-320H-C1050A HLG 320W/1050mA LED power supply Pulsar HLG-600H-24AB HLG 24V/600W/25A LED power supply Pulsar HLG-600H-48 HLG 48V/600W/12.5A LED power supply Pulsar HLG-240H-12 HLG 12V/240W/16A LED power supply HLG-320H-54B Mean Well 54V/320W/5.95A LED power supply Pulsar HLG-480H-48B HLG 48V/480W/10ALED power supply HLG-185H-12A Mean Well 12V/185W/13A LED power supply

MEAN WELL HLG-120H-12A LED power supply 12V/120W/10A


Constant voltage / constant current power supply HLG-120H-12A for lighting systems has a power of 120W and an output voltage of 12V. It is closed in a housing with IP65 and cooled by free air circulation .
HLG-120H-12A has current and output voltage regulation with a potentiometer and built-in active PFC.

PARAMETERS AND FEATURES:
  • output voltage: DC 12V
  • output voltage adjustment range: 6-12VDC
  • output current: 10A
  • output current adjustment range: 10.8-13.5A
  • power: 120W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 92%
  • IP65
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 80 ° C
  • dimensions: 220x68x38.8mm
  • weight: 1.12kg
Download
Datasheet 0.77 MB
CE Declaration 0.32 MB
