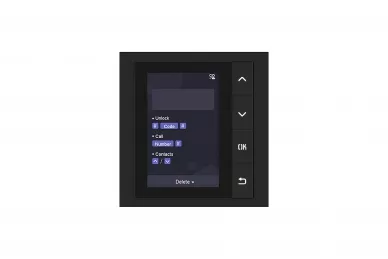

Hikvision DS-KD-DIS Display module

170,01 EUR including 23.00% VAT
Product code: #22489
Manufacturer: Hikvision
  • 4 buttons with backlight
  • Ability to add up to 500 contacts
  • Display: 3.5" TFT LCD (320 × 480px)
  • Programming with iVMS-4200
  • Requires the DS-KD8003-IME1 or DS-KD8003-IME2 module
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Hikvision DS-KD-ACF2 / Plastic Flush-mounted housing Hikvision DS-KD-ACW3 Surface-mounted housing Hikvision DS-KD-ACF3/Plastic Flush-mounted housing Hikvision DS-KD-ACW2 Surface-mounted housing Hikvision DS-KD-KP Keypad module

HIKVISION DS-KD-DIS Video Intercom Display Module



DS-KD-DIS is a display module dedicated to work with the video intercom module DS-KD8003-IME1 or DS-KD8003-IME2 through which the power is supplied.
The device is designed to work in the Hikvision video intercom system 2nd generation. The main tasks of the module include:
  • informowaniu o statusie stacji bramowej
  • displayed information: call duration, door opening, doorphone switching to message recording mode after missed call
  • calling the indoor station from the displayed contact list
  • displaying the indoor station number entered with the module DS-KD-KP keypads
DS-KD-DIS is equipped with four illuminated buttons, two connectors RS485, intended for communication and powering another module and 3.5 '' bright display with a resolution of 320x480px.
HIKVISION DS-KD-DIS Display module

HIKVISION DS-KD-DIS Display module


Specification:
  • processor: Embedded MCU Processor
  • storage: 64 MB
  • flash: 8 MB
  • screen: 3.5-inch TFT LCD screen
  • resolution: 320 × 480p
  • backlight: Supported
  • operation method: Physical buttons
  • module-connecting: 2 (1 input, 1 output)
  • power input: 12VDC( From the other module)
  • power output: 12VDC( For the other module)
  • physical buttons: 4( Up, Down, OK, Back)
  • debugging port: 1
  • power consumption: ≤ 3 W
  • working temperature: -20°C to +60°C
  • protection level: IP65
  • installation: flush mounting, surface mounting
  • dimension:98 x 100 x 34.2 mm
Download
Datasheet 0.93 MB
CE Declaration 0.39 MB
