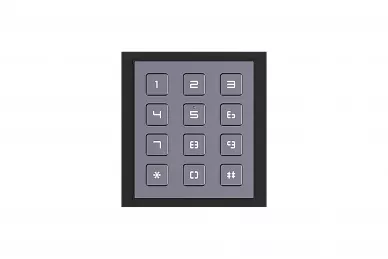

Hikvision DS-KD-KP Keypad module

116,17 EUR including 23.00% VAT
Product code: #22490
Manufacturer: Hikvision
  • 12 buttons with backlight
  • Combination lock function
  • Configured with iVMS-4200
  • Requires the DS-KD8003-IME1 or DS-KD8003-IME2 module
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Hikvision DS-KD-ACF2 / Plastic Flush-mounted housing Hikvision DS-KD-ACW2 Surface-mounted housing Hikvision DS-KD-ACW3 Surface-mounted housing Hikvision DS-KD-ACF3/Plastic Flush-mounted housing

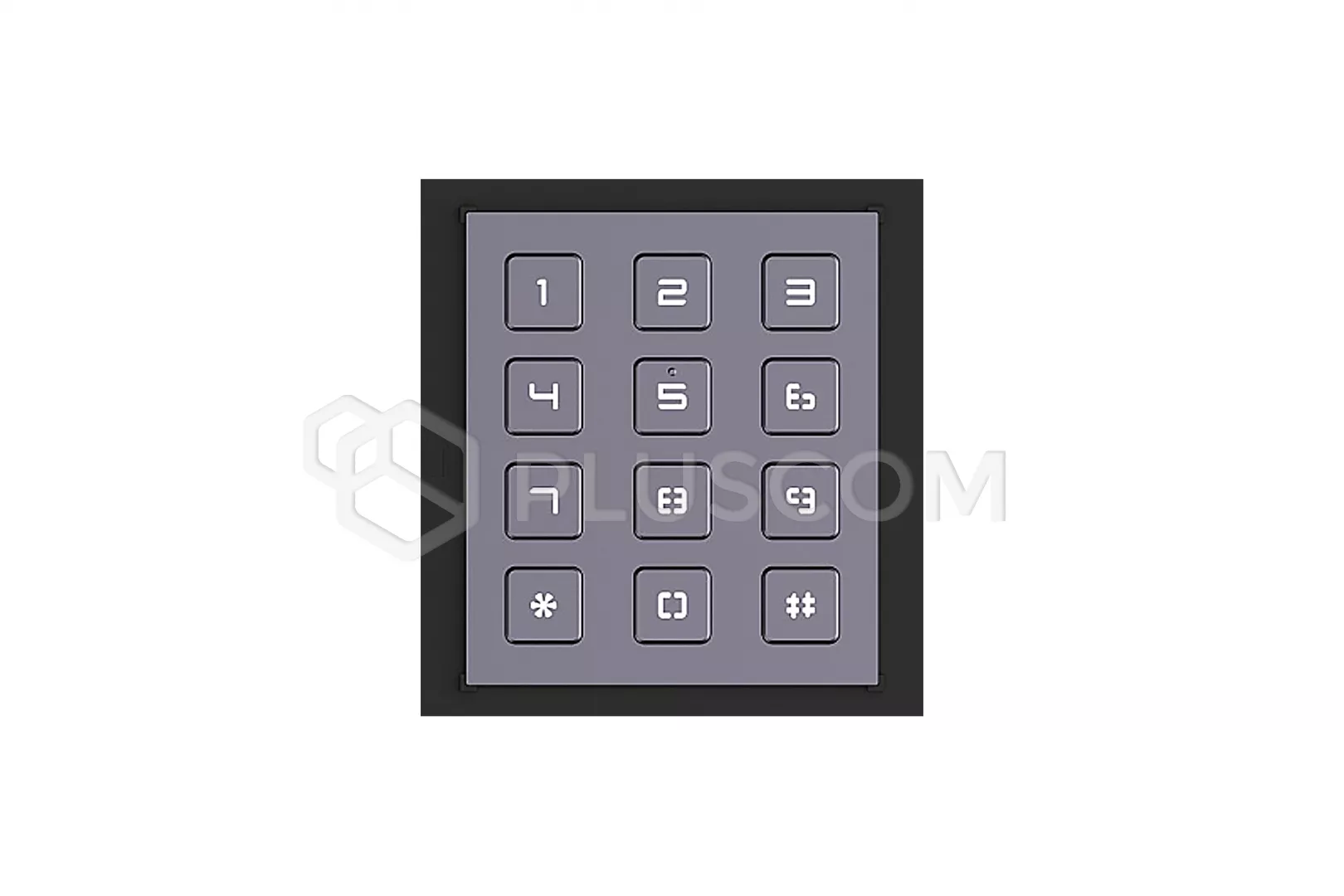

HIKVISION DS-KD-KP Keypad module


DS-KD-KP is a numeric keypad module, dedicated to work with the module DS-KD8003-IME1 or DS-KD8003-IME2 video intercom, through which the power supply in the second generation Hikvision IP video intercom system. Down the main features and tasks of the module include:
  • calling the subscriber's number
  • door opening with code
  • 12 backlit keys
  • combination lock function
  • configuration with iVMS-4200
  • two RS485 connectors

HIKVISION DS-KD-KP Keypad module

HIKVISION DS-KD-KP Keypad module


TECHNICAL PARAMETERS:
  • Processor: Embedded MCU Processor
  • Operation method: Physical Button
  • Interfaces:
    • Module-connecting: 2(1 Input, 1 Output)
    • Debug: 1
  • Physical button: 12
  • DIP Switch: 8
  • Power Input: 12 VDC(Powered by the other module)
  • Power Output: 12 VDC(Powered for the other module)
  • Power consumption: ≤2 W
  • Working temperature: -40° C to +60° C
  • Protection level: IP65, IK7
  • Installation: Flush Mounting, Surface Mounting
  • Dimensions: 98.5 x 100 x 34.2 mm
Download
Datasheet 0.66 MB
CE Declaration 0.42 MB
User manual 3.59 MB
