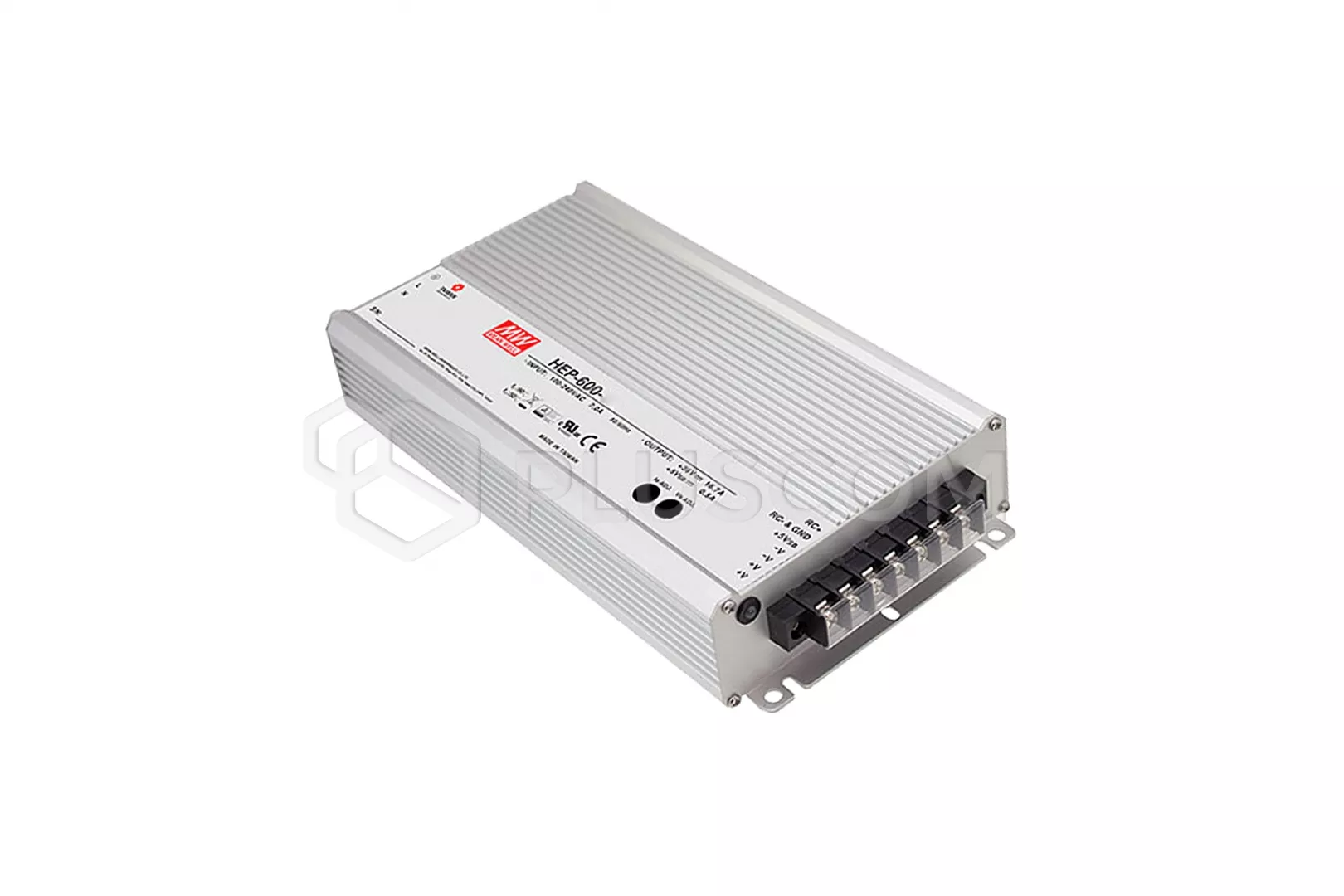

HEP-600-24 Mean Well 24V/600W/25A caged power supplies

377,77 EUR including 19.00% VAT
Product code: #22602
Manufacturer: Pulsar
  • Output parameters: DC 24V 25A max 600W
  • Output current can be adjusted by internal potentiometer
  • Built-in Active PFC function
  • No load power consumption <0.5W at remote OFF
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
18,23 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HEP-600-12 Mean Well 12V/600W/40A caged power supplies HEP-240-24A Mean Well 24V/240W/10A caged power supplies HEP-240-12A Mean Well 12V/240W/16A caged power supplies HEP-150-54A Mean Well 54V/150W/2.8A caged power supplies HEP-100-24A Mean Well 24V/100W/4A caged power supplies

MEAN WELL HEP-600-24 Caged power supplies 24V/600W/25A


The constant voltage/constant current HEP-600-24 caged power supplie has an power of 600W and a voltage output 24V. It is closed in an aluminum casing, filled thermally conductive adhesive. Power supply it is cooled by free air circulation .

HEP-600-24 has 10G vibration resistance, wide temperature range work, making it suitable for harsh environmental conditions.

PARAMETERS AND FEATURES:
  • output voltage: DC 24V
  • output voltage adjustment range: 20.4-25.2VDC
  • output current: 25A
  • range of output current regulation: 12.5-25A
  • regulation of the output current with an internal potentiometer
  • power: 600W
  • no load power consumption <0.5W at remote OFF
  • wide range of input voltage: 85-264VAC, 120-370VDC
  • protections:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC function
  • LED indicator for power on
  • efficiency: 95%
  • working temperature: -40 ° C ÷ 70 ° C
  • dimensions: 280x144x48.5mm
  • weight: 3.9kg
Download
Datsheet 0.12 MB
CE Dclaration 0.45 MB
