HEP-240-24A Mean Well 24V/240W/10A caged power supplies

158,57 EUR including 20.00% VAT
Product code: #22600
Manufacturer: Pulsar
  • Output parameters: DC 24V 10A max 240W
  • Output current can be adjusted by internal potentiometer
  • Built-in Active PFC function
  • IP65
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HEP-600-24 Mean Well 24V/600W/25A caged power supplies HEP-600-12 Mean Well 12V/600W/40A caged power supplies HEP-240-12A Mean Well 12V/240W/16A caged power supplies HEP-150-54A Mean Well 54V/150W/2.8A caged power supplies HEP-100-24A Mean Well 24V/100W/4A caged power supplies

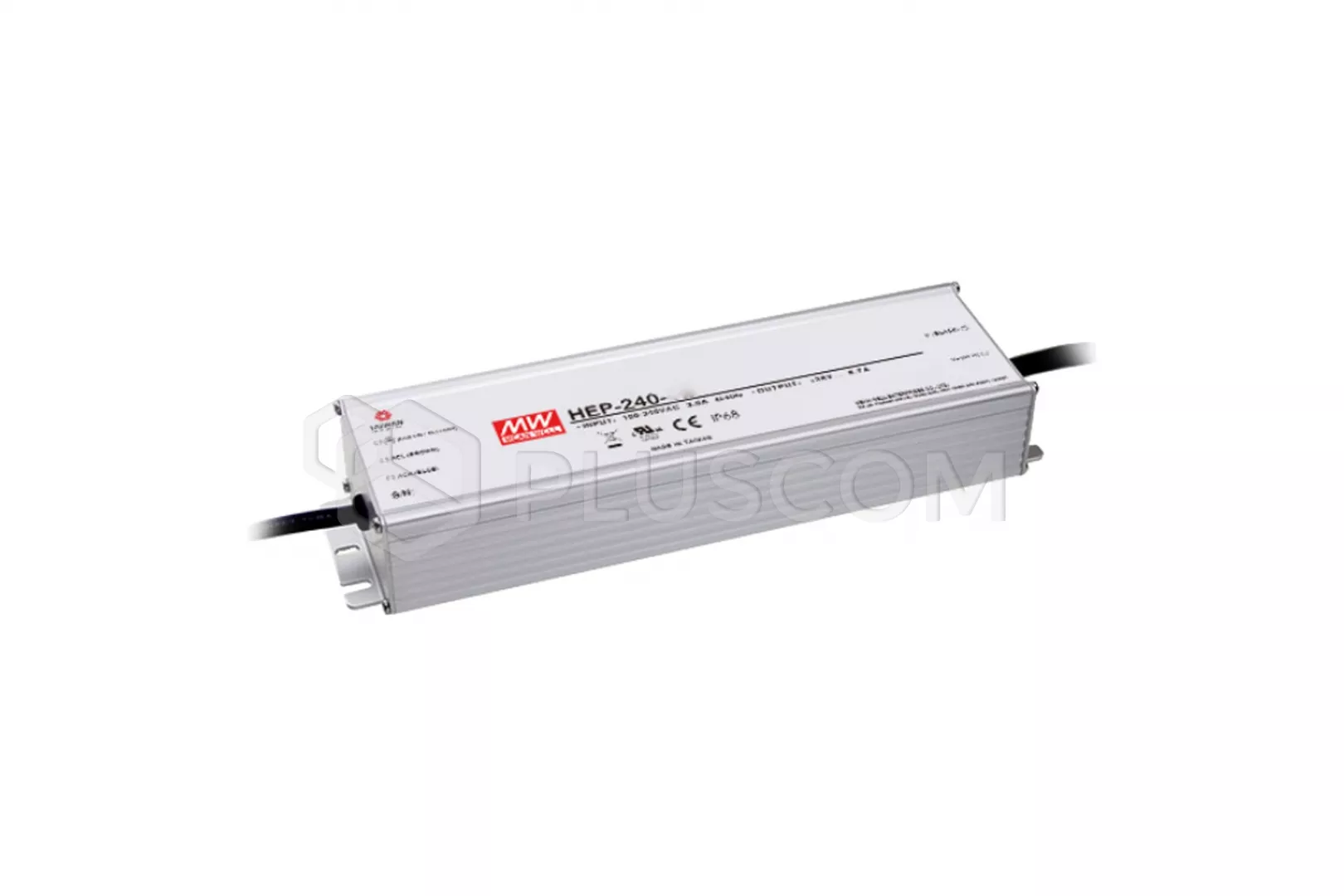

MEAN WELL HEP-240-24A Caged power supplies 24V/240W/10A


The constant voltage/constant current HEP-240-24A caged power supplie has an power of 240W and a voltage output 24V. It is closed in an aluminum casing, filled thermally conductive adhesive. The housing has a tightness class of IP65 and a power supply it is cooled by free air circulation .

HEP-240-24A has 10G vibration resistance, wide temperature range work, making it suitable for harsh environmental conditions.

PARAMETERS AND FEATURES:
  • output voltage: DC 24V
  • output voltage adjustment range: 22.4÷25.6VDC
  • output current: 10A
  • range of output current regulation: 5-10A
  • regulation of the output current with an internal potentiometer
  • power: 240W
  • wide range of input voltage: 85-264VAC, 120-370VDC
  • protections:
    • short circuit protection
    • overload
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC function
  • efficiency: 92.5%
  • IP65
  • working temperature: -55 ° C ÷ 70 ° C
  • dimensions: 244.2x68x38.8mm
  • weight: 1.3kg
Download
Datasheet 0.54 MB
CE Declaration 0.45 MB
