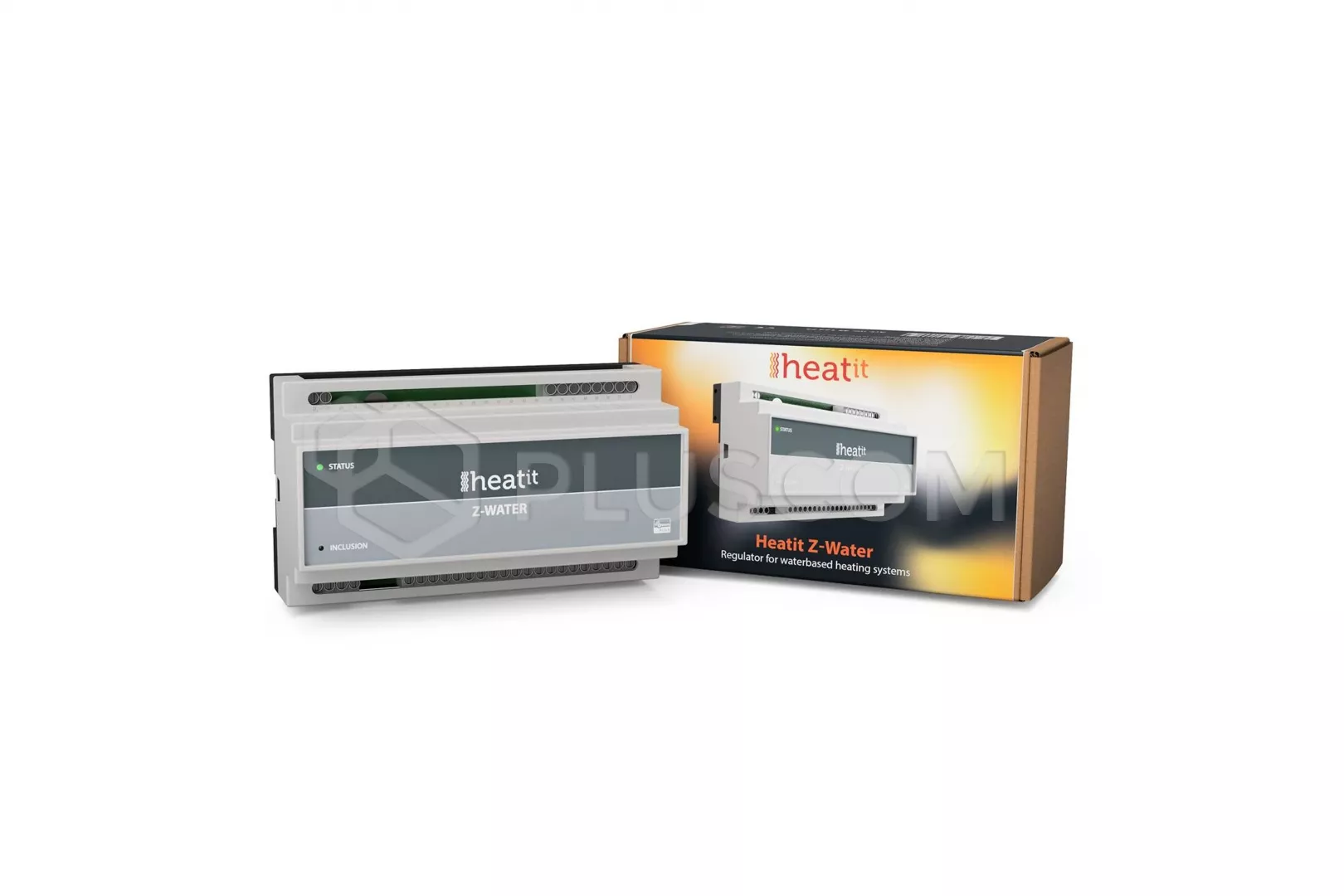

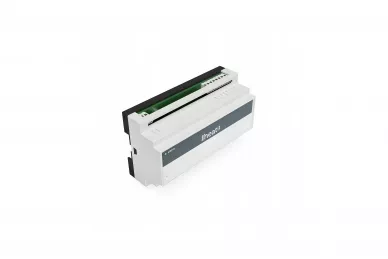

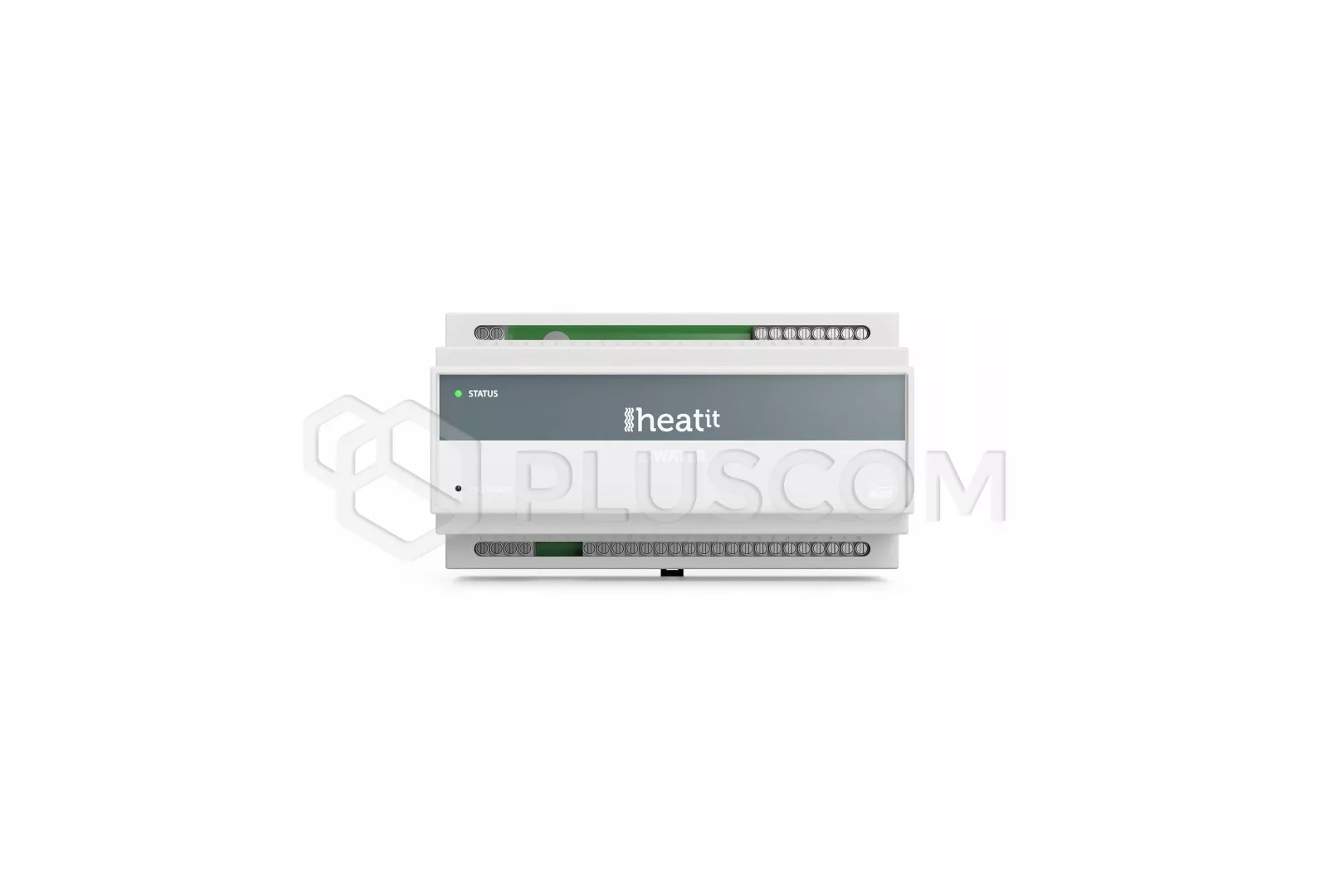

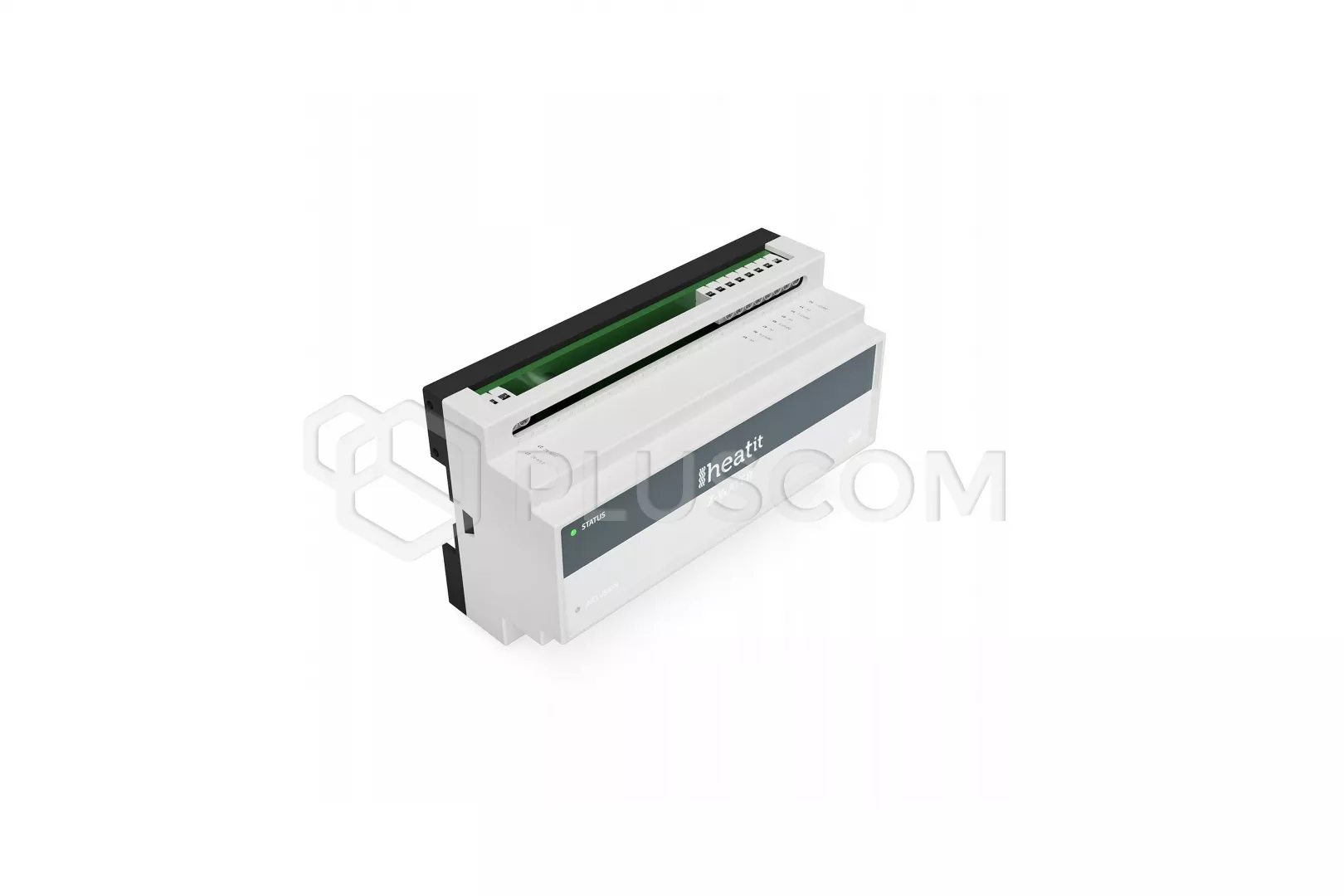

Heatit Z-WATER Water heating controller

Heatit Z-WATER Water heating controller

Heatit Z-Water is a DIN-rail regulator for controlling waterbased heating systems. The module clips right onto a DIN-rail to add a variety of functions to your wireless Z-Wave network. Heatit Z-Water is equipped with 10 relay outputs and it has 4 analog inputs. The module is power supplied from a 230VAC mains connection and is able to deliver an output supply of 24VDC or 230VAC. Heatit Z-Water relay outputs may be freely controlled from the Z-Wave network, and may be used for several purposes, e.g. on/off control of lights, controlling valve actuators in an underfloor heating system, or controlling other home automation systems. Should not be placed in steel cabinets as this will reduce the range.

FEATURES

• Regulator for waterbased heating systems
• Relay outputs can control actuators in a waterbased floor heating system
• May be used to control both 24V actuators and 230VAC actuators
• May be used with a Heatit Z-Temp2 or Heatit Z-TRM3 thermostat in each zone
• DIN-rail mounting
• Works as a Z-Wave repeater to improve the Z-Wave network range
• Firmware update (OTA)
• Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class

TECHNICAL DATA:

• Protocol Z-Wave
• Chip Z-Wave 500 chip
• Rated voltage 100VAC - 240VAC 50/60Hz
• Power consumption 0.6W standby
• Ambient temperature 5°C to 40°C
• Humidity Max. 90% RH
• Fuse 3.15A Quick-Acting, UMF 250
• Schurter Inc., part no.: 3405.0171.11
• 24V DC output Maximum 1.17A, 28W
• Max. switching current 5A
• Max load per relay 150W
• Max voltage 250VAC 30VDC
• Inputs Max. input voltage: 10VDC
• Input impedance: 10 KΩ
• Loop output voltage: 5VDC
• IP Code IP 21
• Size (LxHxW) 160 x 86 x 58mm
