Gorke TDN-07 Battery Call Set

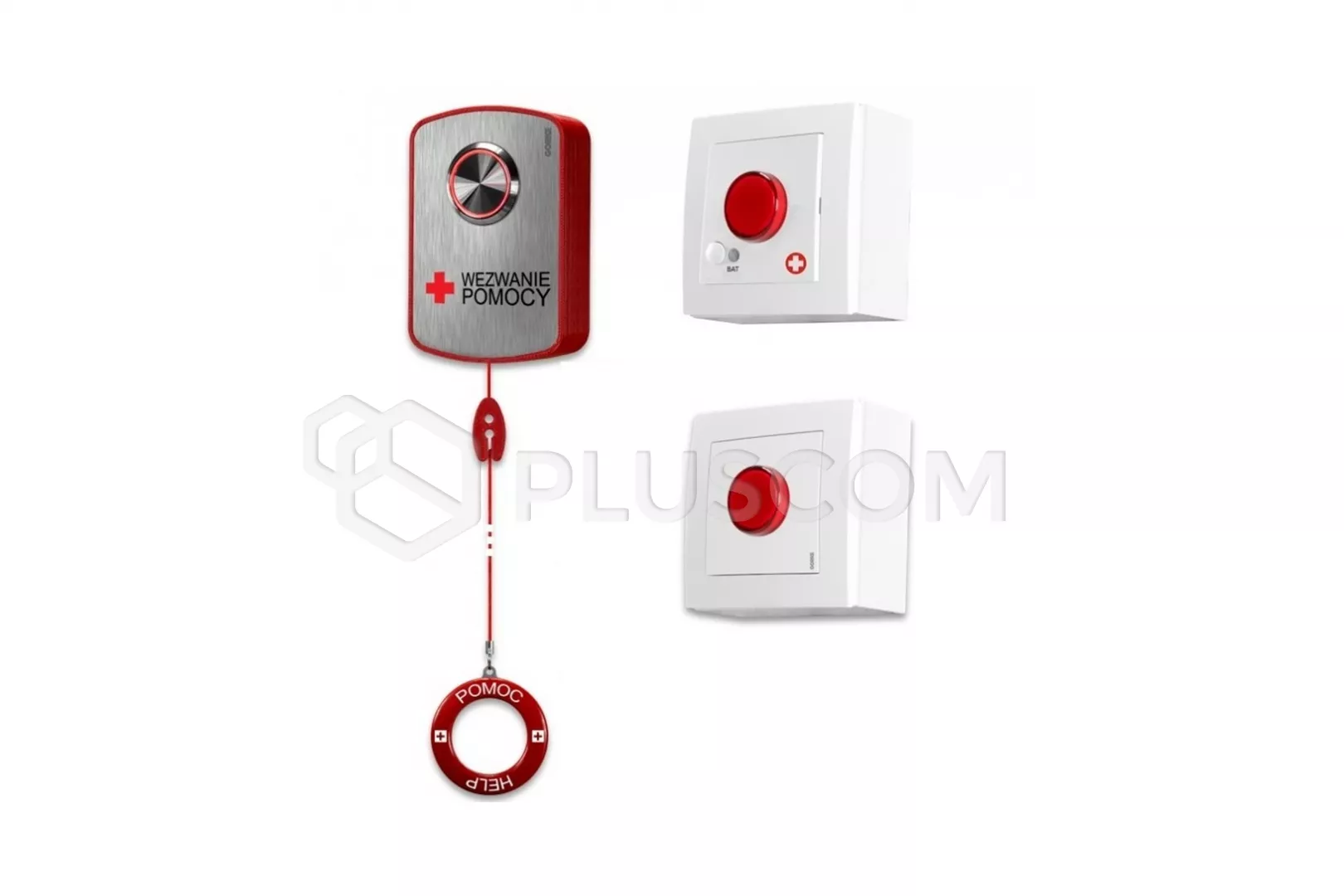

The set is intended for surveillance of
one room, consists of the SPX-PK1C paging transmitter, BSX-400 signaling
device, SPX-CS1 receiver. All devices are battery-powered.
This solution is a great advantage for all those situations where no has the
ability to run power cables, forge walls, etc. Assembly is possible easy and
instant.
The design of the set's components uses the LX z receiving module LoRa
technology used for advanced wireless communication. The range of applications
includes cases of difficult radio conditions, which do not standard radio
solutions can meet. Ability to communicate effectively in conditions with
numerous obstacles or between floors allows for use in an urbanized area.
MODE OF OPERATION

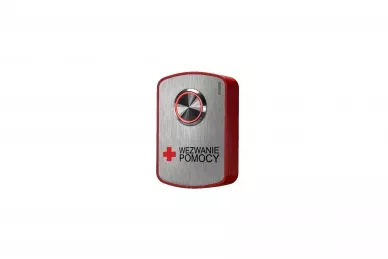

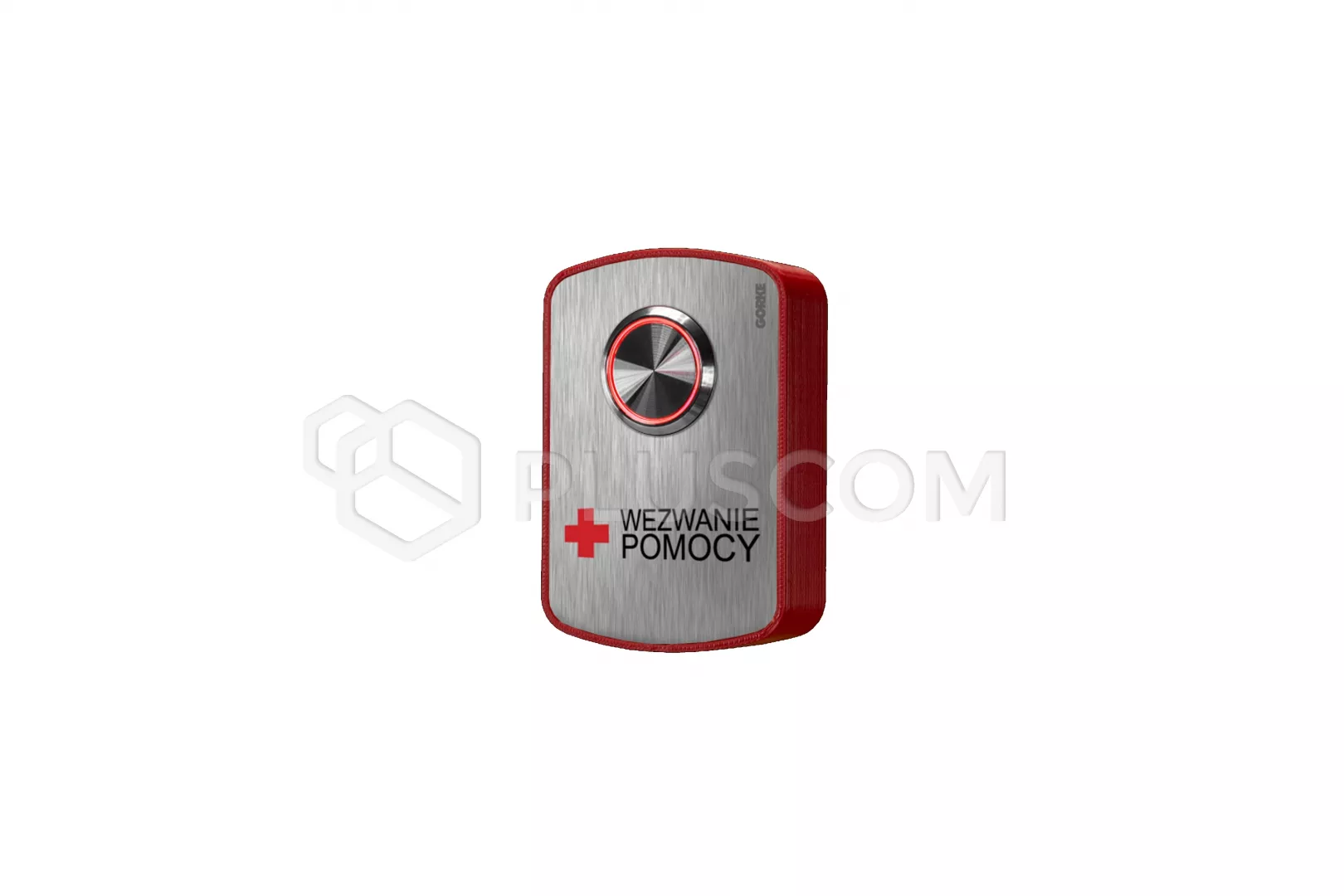

Using the SPX-K1C button installed in the toilet (pressing the or key pulling
the cable) engages the one mounted from the outside room (corridor) of the

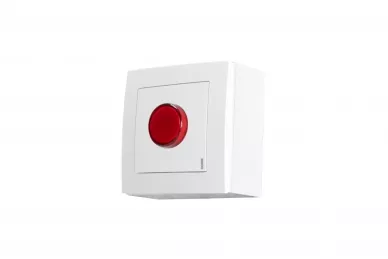

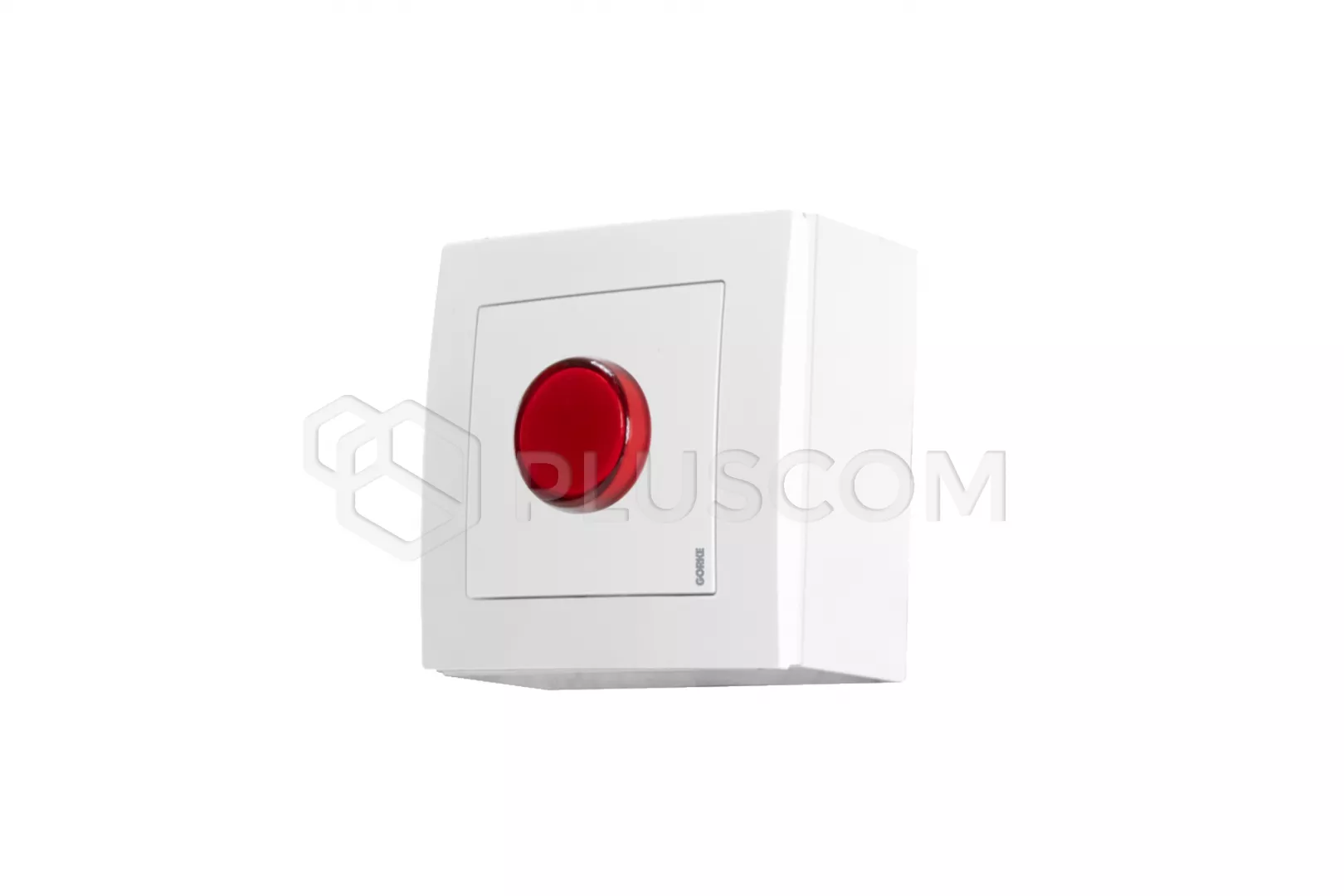

BSX-400 optical and acoustic signaling device and signaling of a distress call

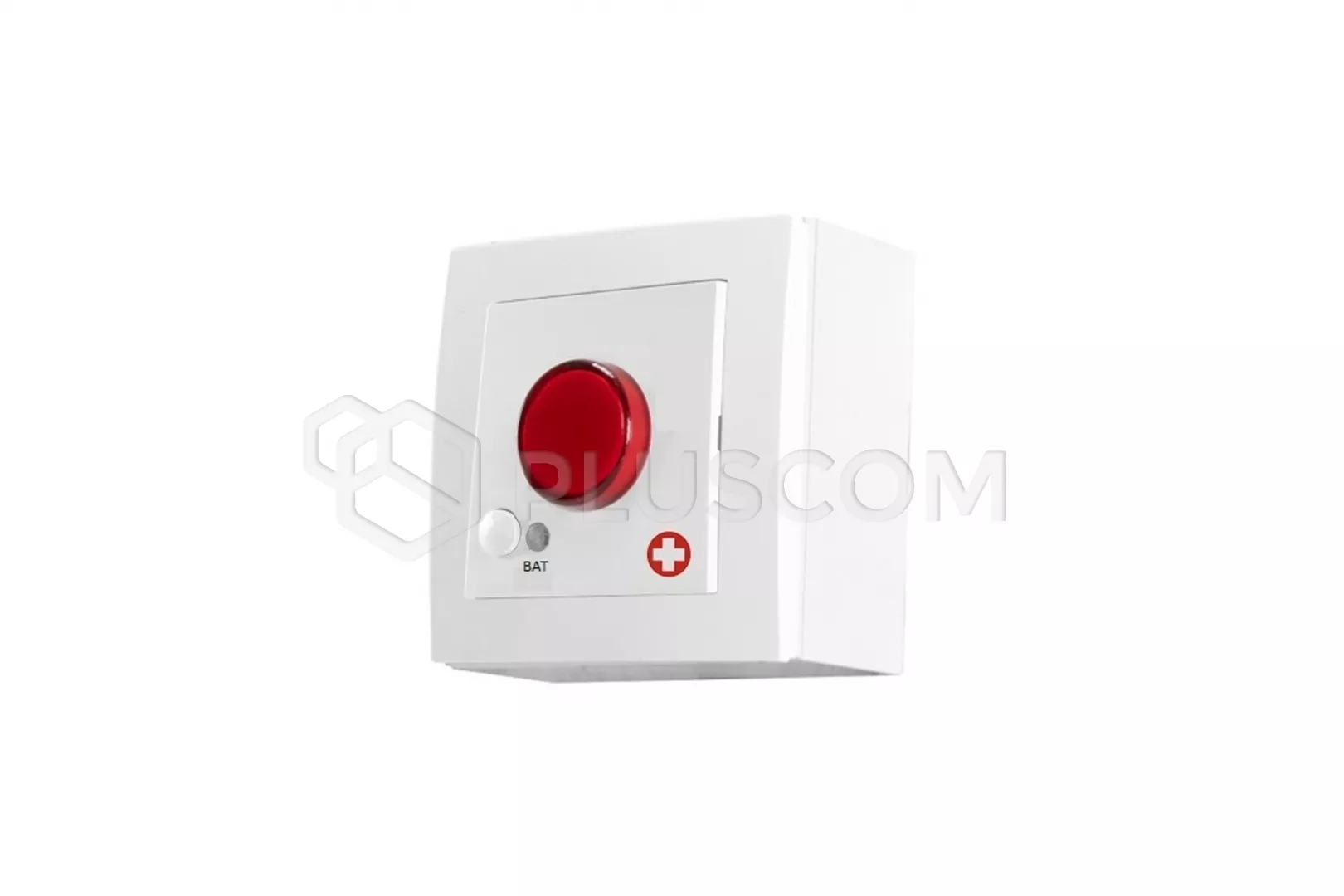

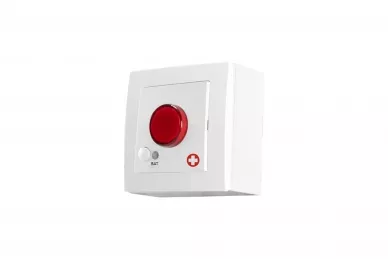

message on the SPR-CSX1 receiver, mounted in surveillance room.
Signaling:
After an SOS call, the signaling device lights up continuously, at full power
and a sound will be activated (pulsating every 0.5 s). This state lasts 15
minutes. If in During this time, the alarm will not be cleared - the siren goes
into working mode economy, which means that the BSX-400 stops lighting
constantly and turns on it flashes at full power at an interval of 2 seconds.
Acoustic signal every 1 min. Time The duration of this mode is 45 minutes. If
still not used within this time call validator, the siren switches to the
super-saving mode (after hour after the alarm occurred). In this mode, the
siren will work until battery depletion (~800 hours).
SPECIFICATIONS:
- frequency: 433.05 ÷ 434.79 MHz
- encoding: variable code
- the set includes:
-
- 1x SPX-PK1C push-pull transmitter
- 1x BSX-400 signaling device
- 1x SPX-CS1 receiver
- number of channels: 1
- receiving module: LX/ ST3/ST7 ; transmitting/receiving
- power supply: 3.6V lithium battery type LS14505 (2500mAh) or LS18505
(4000mAh)
- power consumption - in standby mode:
-
- transmitter: 50uA
- signaler: 100uA
- receiver: 100uA
- max current consumption: 105 mA
- sound: 2450 Hz / intensity adjustment, 0-80 dB??
- light source: LED
- light color: red
- operating modes: pulsating
- operating temperature: -10ºC ÷ +55ºC
- humidity (max): 93 ± 3%
- dimensions:
- 84×84×56 (signaler and receiver
- 106x70x35mm (transmitter)
