Gorke SWR-108 Optical and acoustic alarm

16,81 EUR including 23.00% VAT
Product code: #25708
Manufacturer: Gorke
  • Optical signaling: 4 x LED
  • Sound intensity adjustment: max. 108dB
  • Traffic light color: red
  • Power supply: DC 12V
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

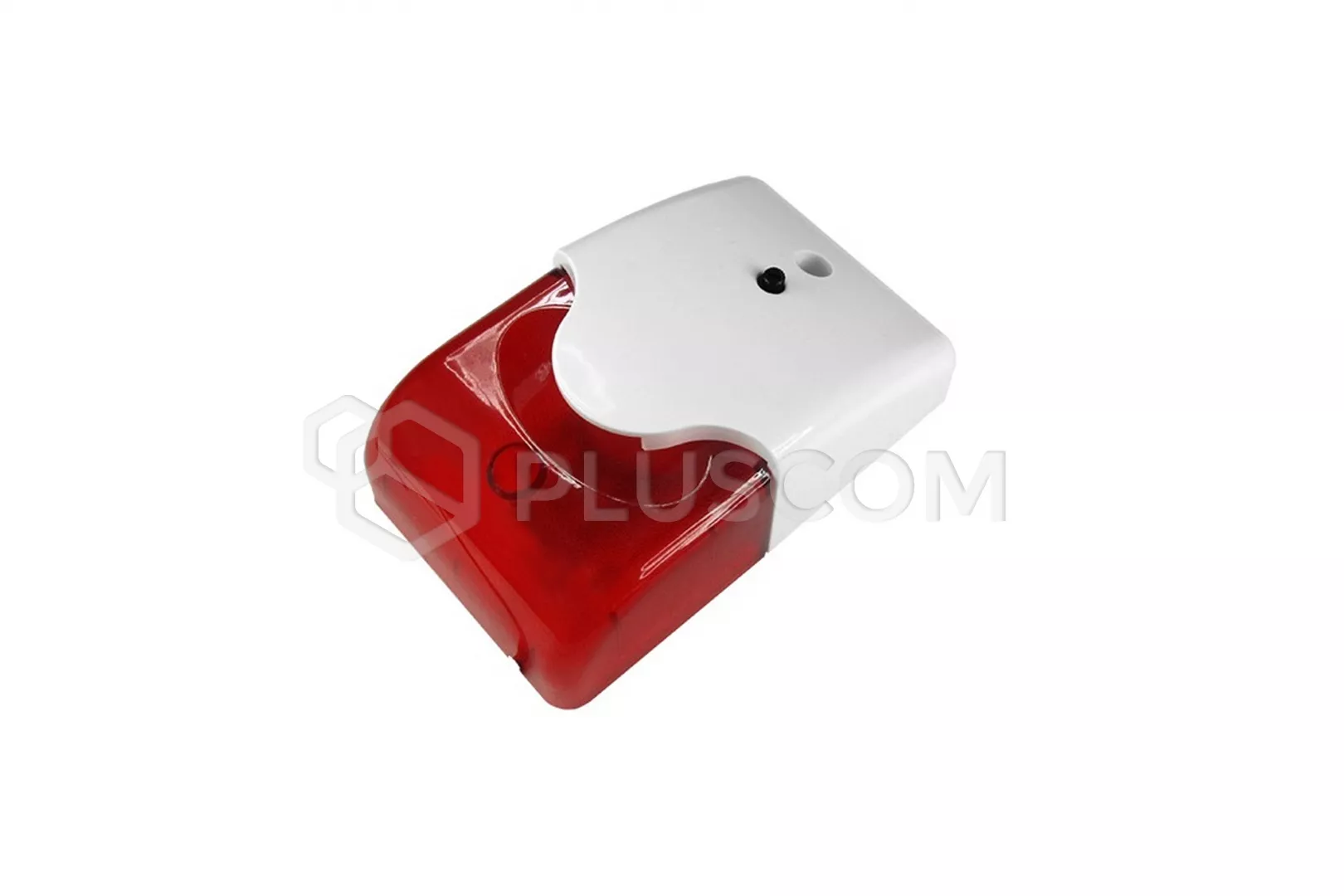

Gorke SWR-108 Optical and acoustic alarm

SWR-108 is optical and acoustic signaling device intended for indoor use.
The signaling device has a knob available on the outer surface of the housing a buzzer that can be used to adjust the volume level.
Setting the maximum value causes the sound level to be the same as standard in this extremely loud siren (approx. 108 dB), and setting the minimum value does not completely turn off the sound signaling, but lowers it to a level appropriate for the immediate surroundings. The ability to adjust the volume is used in situations where it is not possible or not necessary to use the full volume of the siren.
The sound source is a piezoceramic transducer and the light source is 4 efficient LED diodes emitting pulsating light. The siren is located application, among others in alarm systems. Tor optyczny jest wykonany w postaci 4 wydajnych diod LED o małym poborze prądu.

TECHNICAL DATA:
  • loudness level: max 108 dB
  • volume control range: 20-100%
  • power supply: 12 V DC (9-15V DC)
  • current consumption: max 160 mA
  • light source: 4 x LED
  • flash frequency: approx. 120Hz
  • traffic light color: red
  • operating temperature: -10÷ +55 °C
  • humidity (max): 93±3%
  • dimensions: 122 x 73 x 45 mm
