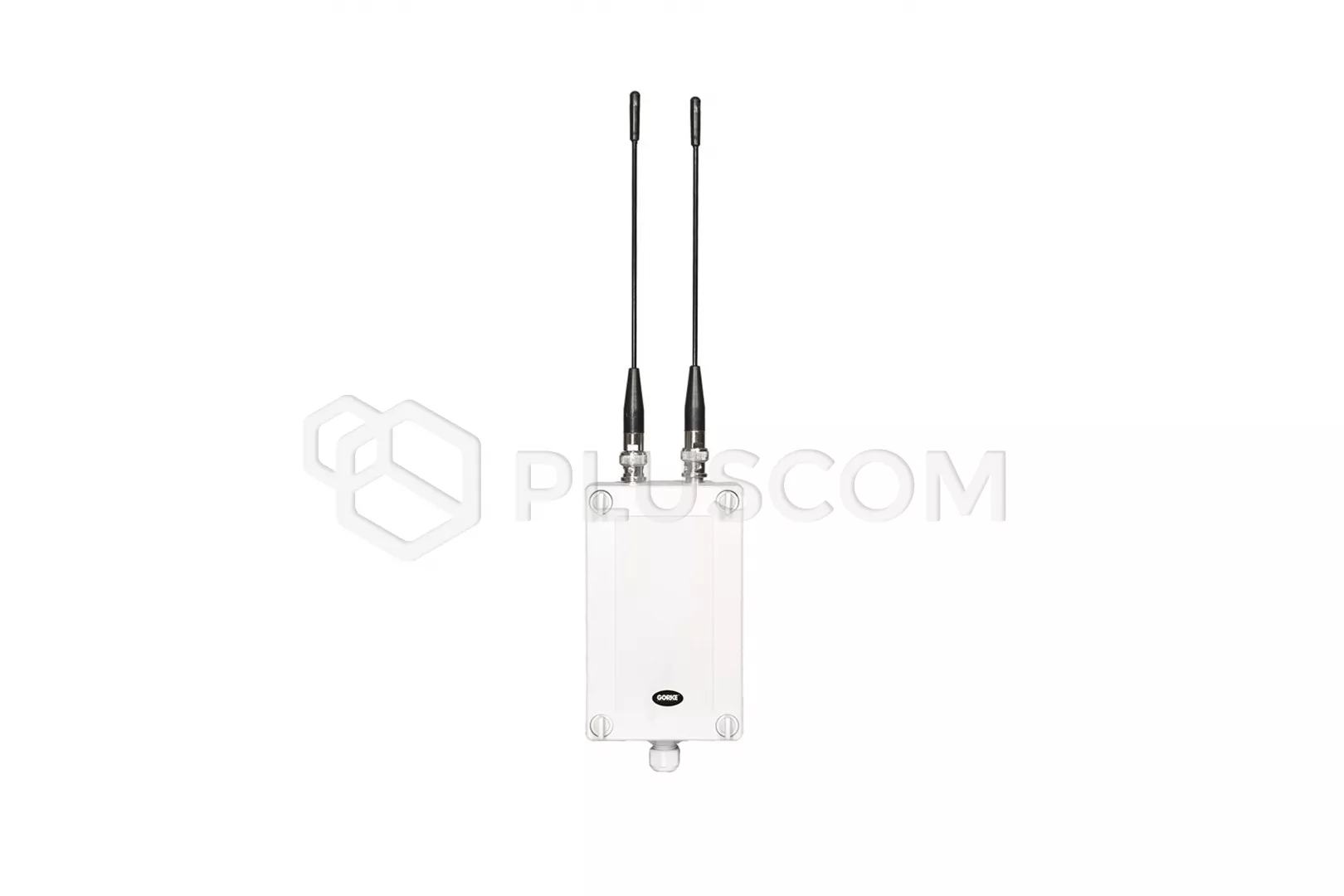

Gorke RTS-1000K Signal repeater with connection control

Gorke RTS-1000K Signal repeater with link control

The RTS-1000K repeater is an element that expands the functionality and reliability of radio systems. It allows you to increase the range of radio transmission of alarm signals and controls.

Supports all types of transmitters/remote controls manufactured by GORKE Electronic (including NRP102K). The reception range depends on the type of transmitter, whose signal is to be amplified (see range table). Boost range is 1000 meters.

Application:

• increasing the operating range of radio devices
• cost reduction in multi-user installations the need to transmit a signal over a considerable distance (several hundred meters). And here instead of using long-range remote controls, you can use cheaper remote controls, e.g. type PUK
• as a radio relay station, transmitting information from remote object to several receivers

The device operates at a frequency of 433.92 MHz and has a link control function.
The radio transmission between the transmitter and the receiver is based on variable code, which ensures high safety of use and immunity to radio signals from other devices. Every transmitter has its own individual code. The repeater responds (and amplifies) only to these transmissions that come from transmitters programmed into its memory.

TECHNICAL DATA:

• frequency: 433.92 MHz
• encoding: variable code
• receiving module: heterodyne H2
• memory capacity: 1000 keys
• power supply: 12V DC(9-15V DC)
• power consumption:
• • quiescent 26 mA (voltage 12V DC)
  • maximum 45 mA
• operating modes: immediate or delayed
• operating temperature: -10÷ +55 °C
• humidity (max): 93±3%
• dimension: 130x80x35 mm
• cooperation: any GE transmitter
• housing tightness: IP 65
• antenna: 2x independent, receiving and transmitting rod, BNC connector 50 Ohm
