RADIO CONTROL 1-CHANNEL GORKE RSU-N1/2
Set RSU-N1/2 contains
- 1pc 1-channel receiver superreactive RSU-KO1
- 2pc 2-key remote control PUK-112-1 type range up to 100m

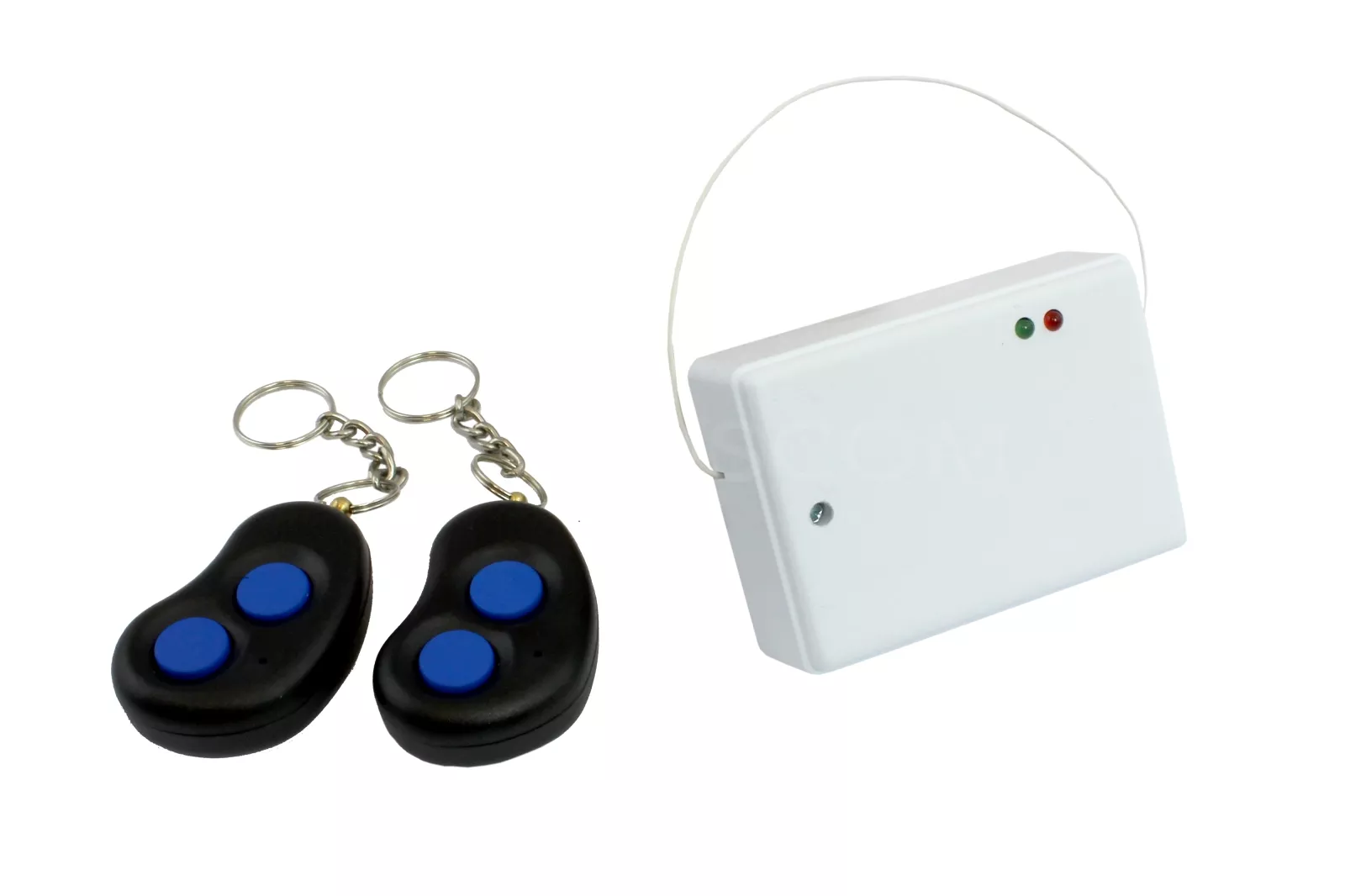

GORKE RSU-N1/2 1-channel radio remote control + 2x remote control PUK-112-1
MODE RECEIVER
- monostable mode (timer maximum time: 4min 20s)
- bistable mode (on - off)
PILOT's
Pilot PUK-112-1 has a range of up to 100m working at a frequency of 433.92 MHz.
- pilot dimensions: 37x51x12mm
- power supply: 6V

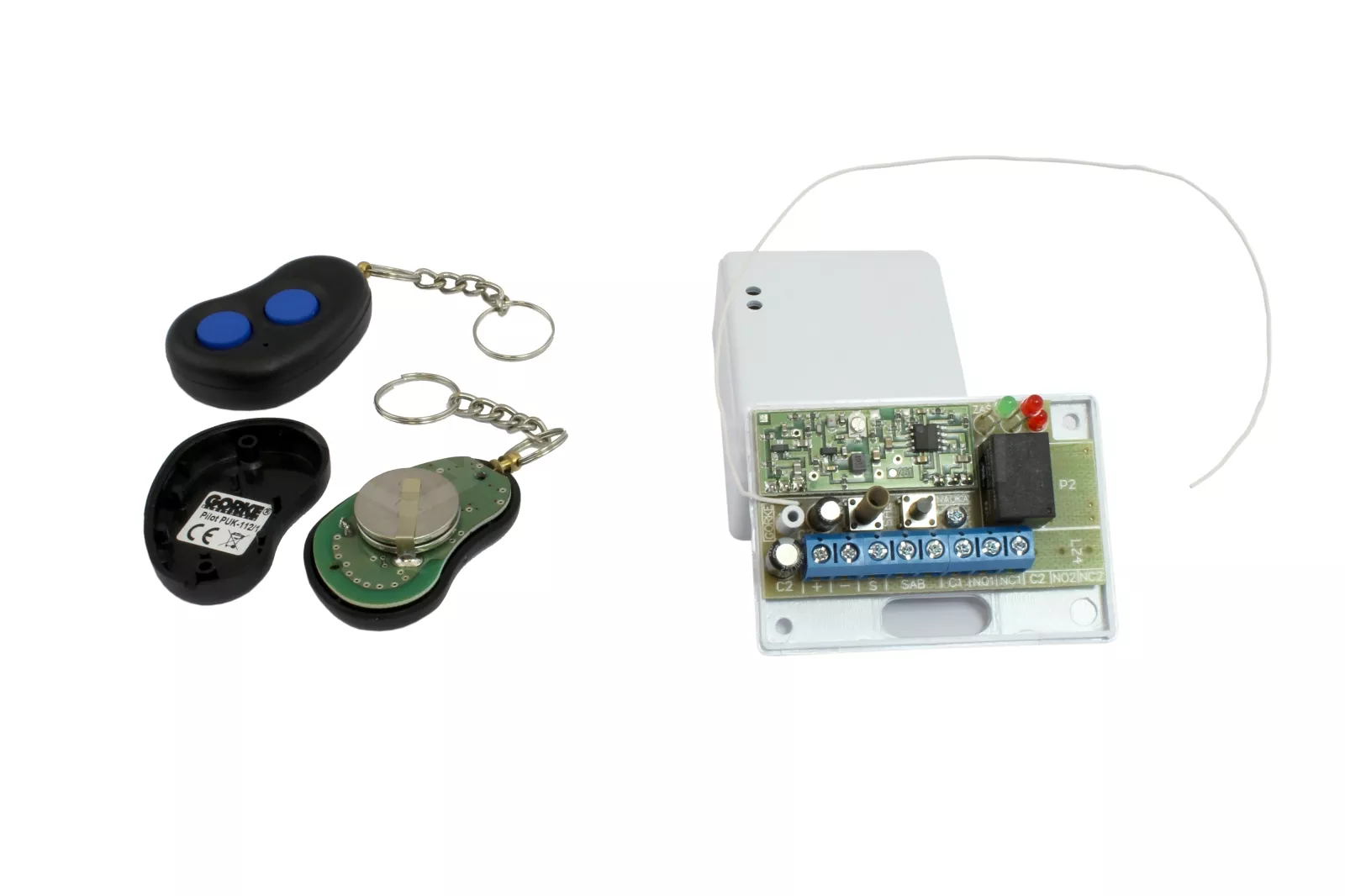

Inside the remote control and the transmitter:
APPLICATIONS
The main application is a work in alarm systems and wireless control system
components. The controller can be used for remote control of home automation
devices, garage doors, blinds, lighting. The pilot may function as an
anti-panic button.
Remote control and receiver works with any other device's Hill. The remote
control can control any number of receivers if you just stay with them
programmed.
Programming mode, additional pilots is performed by pressing
"SCIENCE" placed on top of the receiver and programmed remote
control.
The receiver has one relay output NO / NC type that can be loaded to 30V/1A DC.
In addition, the S-type transistor output with a maximum load of 12V 0.5A which
is used for connecting an audible siren by means of which the user is informed
of the change of status of the relay. (1 or 2 short beeps)
RANGE
Technical parameters specified in the scope of work determines the maximum
distance in open area where the receiver and transmitter to the viewer. In the
case of buildings or other obstructions should be made to reduce coverage.
We recommend mounting the receiver as high as possible and away from metal
objects and electrical appliances used for superreactive receiver is sensitive
to electromagnetic interference.
