Gorke PNH-201S towed transmitter

71,70 EUR including 19.00% VAT
Product code: #25651
Manufacturer: Gorke
  • 1-channel transmitter
  • Range: do 400m
  • Transmission after pulling the chain
  • Coding: rolling code
  • Hermetic casing
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke IDO-1000 Receiver identification

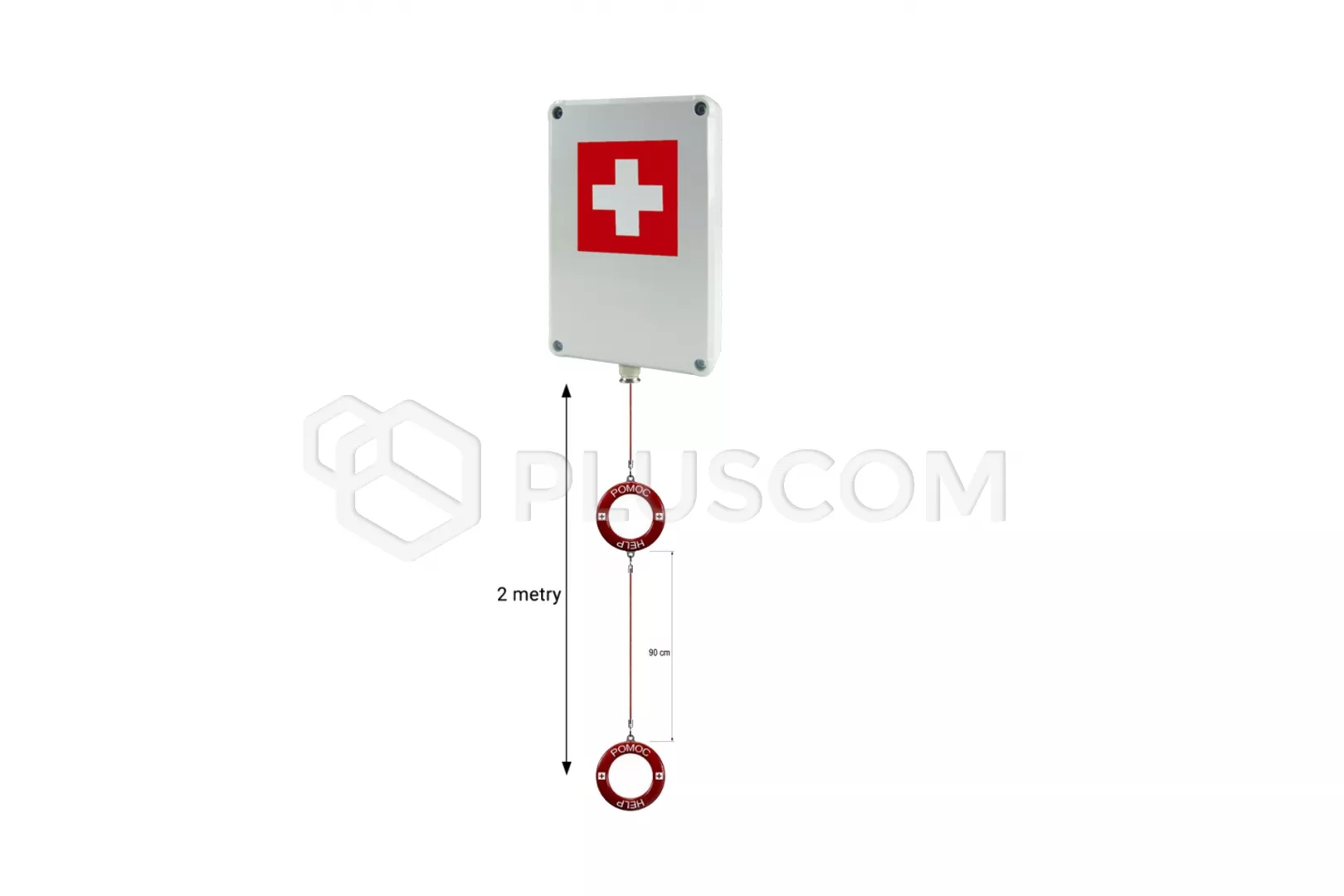

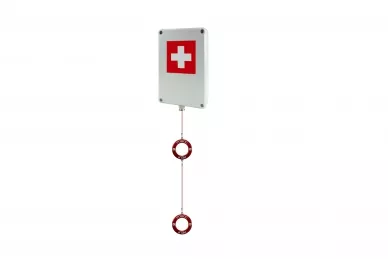

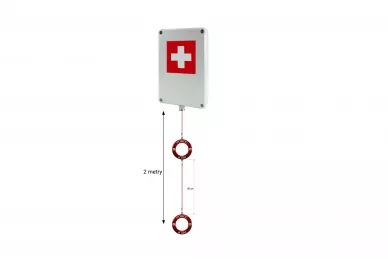

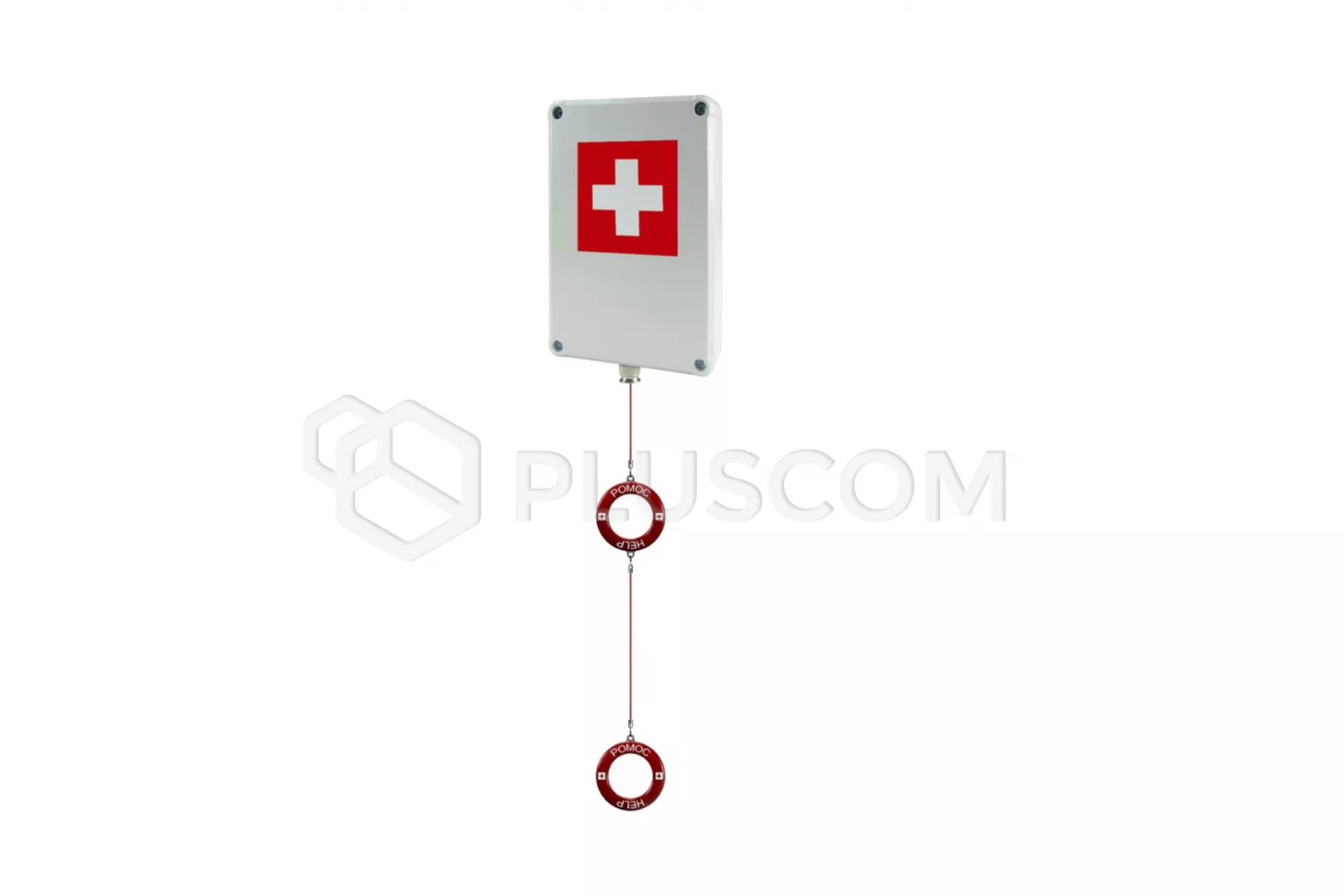

Gorke PNH-201S towed transmitter with two wheels


PNH-201S is a 1-channel transmitter dedicated to the Calling System. The main purpose of the device is assembly in bathrooms, saunas or swimming pools.
The PNH-201S has a hermetic housing, which allows it to work in an environment with high humidity or indoors cold (brines).

The transmission is based on a rolling code ensuring high security use and immunity to radio signals from other devices. Each transmitter has its own individual code. The receiver only responds to these transmissions that come from transmitters programmed into its memory. The transmitter can be programmed to an unlimited number of receivers.

TECHNICAL DATA:
  • frequency: 433.92 MHz
  • transmission power: ≤+8 dBm
  • encoding: rolling code
  • power supply: 12V/MN21, 23A battery
  • scope:
    • 200 m – with a receiver with H1 module (e.g. RSU)
    • 400 m – with a receiver with H2 module (e.g. OPC)
  • cooperation: any sA series receiver
  • operating temperature: -10 ÷ +55 °C
  • humidity: max. 93% ± 3%
  • dimensions: 130 x 80 x 35
