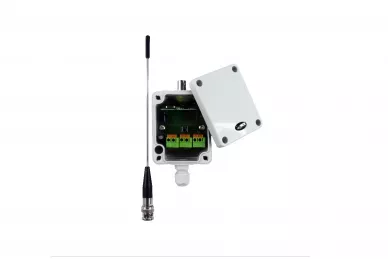

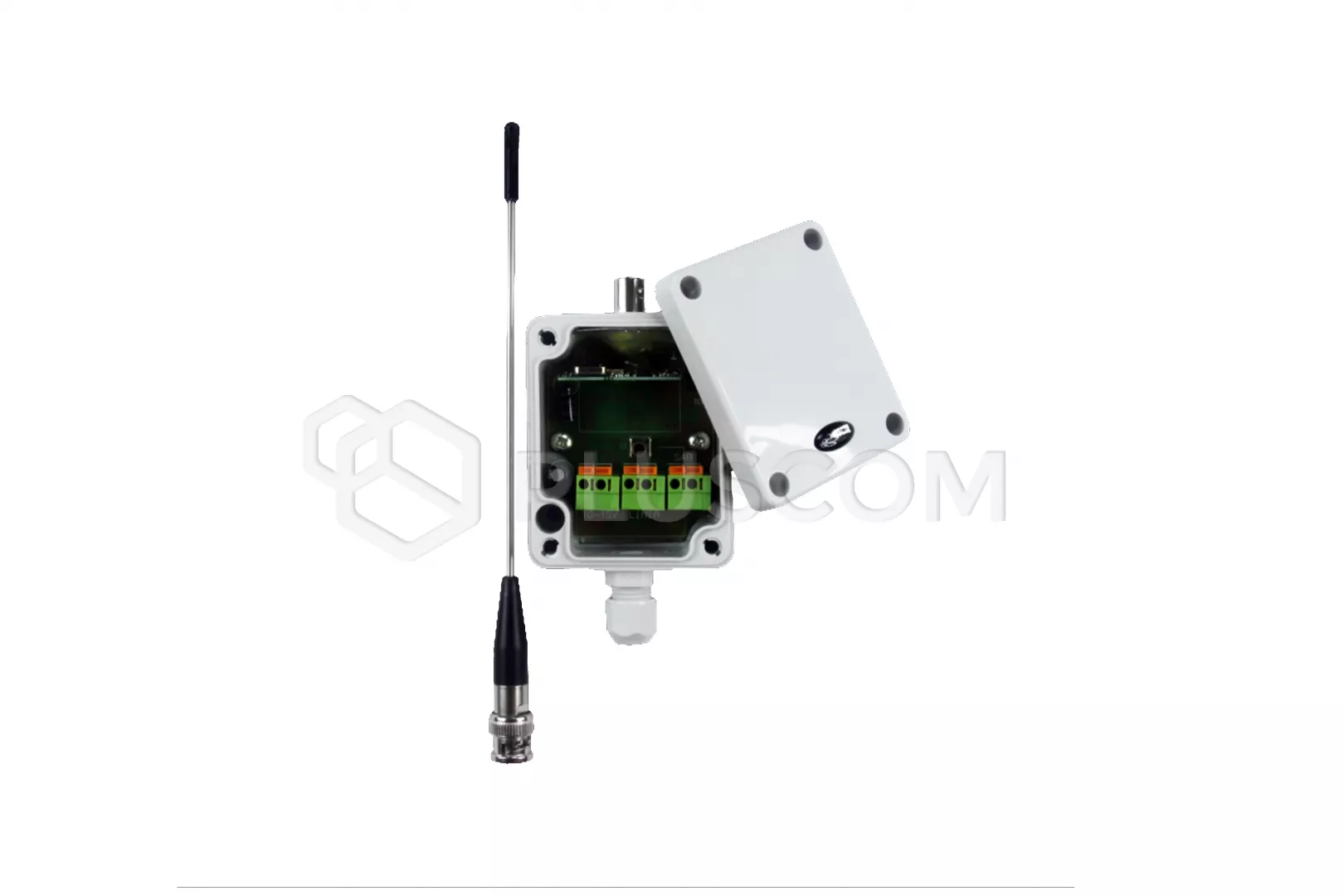

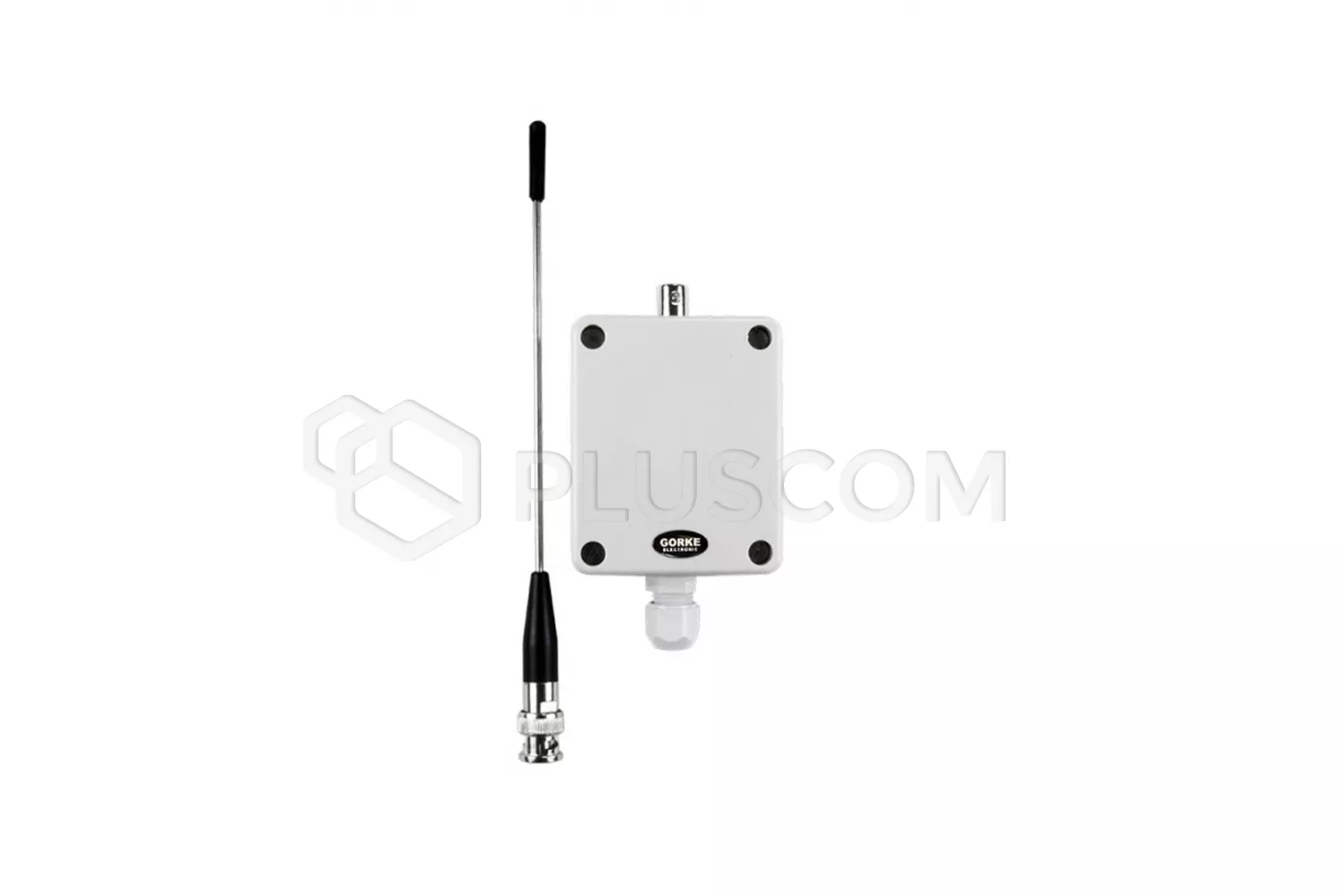

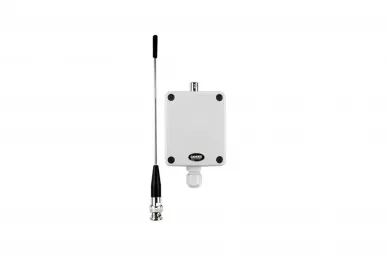

Gorke ORW/All WIEGAND ALL receiver

Gorke ORW/All Radio receiver, 3 x WIEGAND26/34 output

ORW/All is a receiver whose role is to receive radio transmissions from Gorke transmitters, transform them into the WIEGAND 26/ 34 protocol, and then send them via digital outputs to a controller supporting WIEGAND 26 (e.g. ACCO-KP0WG by Satel) or WIEGAND 34 (e.g. PR402 series by Roger). The controller recognizes transmissions from transmitters saved in its memory and reacts according to programming.

ORW/All is based on a heterodyne (H2) receiving module, which makes it resistant to electromagnetic interference. Ranges (on the receiving side) can range from 200 to 1000 meters, depending on the type of transmitter used. A hermetic housing is used for ORW - it can work outdoors. The cable length (outputs-controller) can be up to 200 meters. The receiver is usually installed in a place convenient for receiving radio signals or in the vicinity of readers.

The receiver is used wherever there is a need for expansion access control systems, remote controls or 433.92 MHz radio transmitters, KeeLog Microchip Technology.

DANE TECHNICZNE:

• częstotliwość: 433,92 MHz
• kodowanie: kod zmienny
• moduł odbiorczy: heterodyna H2
• zasilanie :12V DC(9-15V DC)
• pobór prądu: 50 mA
• protokół wyjściowy: WIEGAND 26 lub WIEGAND 34
• Wyjście sabotażowe: 50 mA/ 12V DC
• temperatura pracy :-10÷ +55 °C
• wilgotność (max): 93±3%
• wymiar :99x58x33 mm
• współpraca: Wersja GE—dowolny nadajnik Gorke
• Wersja All—dowolny nadajnik 433,92 MHz, kod zmienny
• przewód: UTP wkrętka komputerowa, max długość 200 metrów
