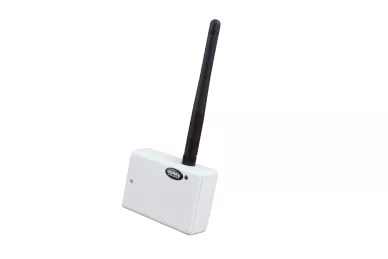

Gorke GSU-K02 GSM Controller

GORKE GSU-K02 is a GSM-pink controller is designed to drive for control of the entrance gate, garage or opening electro goal.

The controller can be supplied with a wide voltage range 9-30V DC or AC

The control panel has an LED that indicates the status of the GSM network.
Control is via a mobile phone. By calling or sending an SMS with a preset number controls the relays.

The controller can store 10 phone numbers. In addition, the controller has a "CLIP for each" service is then possible from any phone number.

Activities such as:

• adding, deleting authorized lines
• delete all users except the administrator
• time setting of the relay PK1, PK2

• ON / OFF CLIP for everyone function


performed via SMS sent to the controller

PREPARATION SIM
Card has to be prepared as follows:

• disable the PIN code or set 1111 otherwise the card will be blocked
• turn off your voicemail service
• install a SIM card with disconnected power supply
• GSM connection status LED informs
• after installing the SIM card controlling its work is done by CLIP calls (calls do not generate any cost to the user of the phone) or by sending an SMS
