Gorke BSO-400 Optical and acoustic alarm

Gorke BSO-400 Optical and acoustic alarm

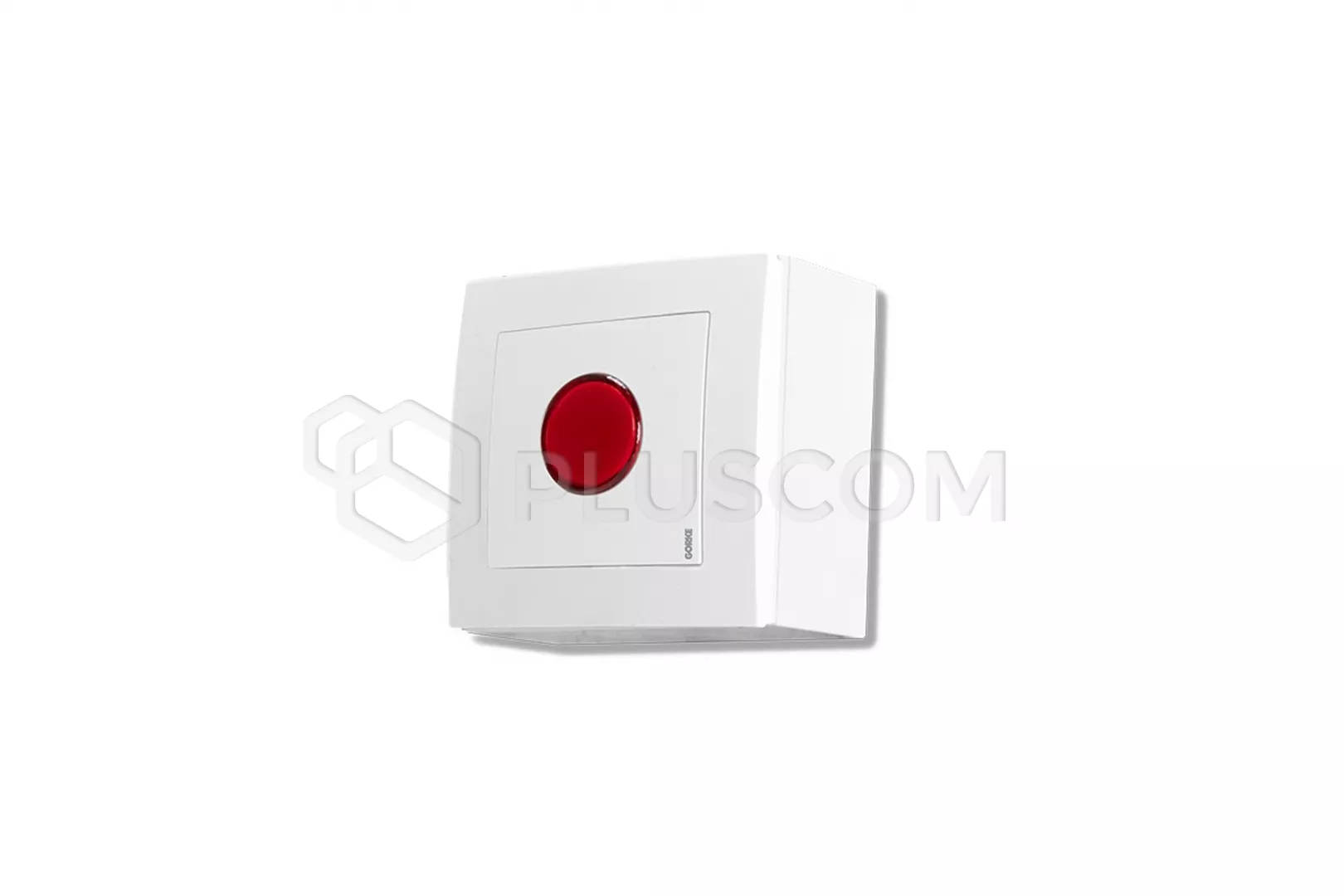

BSO-400 optical and acoustic signaling device is dedicated primarily to medical Emergency Call Systems. Maybe in they can act not only as a corridor signal but also as a lamp control at the patient's bedside. Available in a version for surface or surface mounting flush-mounted (fi60 box).

Features:

• provide clear signaling even in strong lighting conditions external (above 500 lux)
• smooth regulation of light and sound intensity
• assigning remote controls to two different signaling modes - P Mode / C
• mode
• programming the reset keys of Mode P - Mode C or both Mode P and C
• two night modes: turning off the acoustics / lowering the brightness
• storage of the siren state in the event of a power failure

The operation of the siren is controlled by sending signals from remote controls, transmitters or buttons that have been programmed to it memory. The way the signaling device responds to each device being taught (remote control, button) is determined by the selection of the learning type used for its programming.

Types of signaling:

• P MODE (pulse)
• • light 0.5s / break 0.5s / light 0.5s ...
  • sound 0.5s / pause 0.5s / sound 0.5s ...
• MODE C (continuous)
• • continuous light
  • sound 0.5s / pause 15s / sound 0.5s ...

TECHNICAL DATA:

• power supply: 12V DC (10 - 15V DC)
• current consumption - in standby: 25 mA
• current consumption - acoustics (min) - optics (max): 35 mA
• current consumption - maximum: 90 mA
• frequency: 433.92 MHz
• encoding: variable code
• memory capacity: 32 keys
• receiving module: heterodyne H1; sensitivity -108 dBm
• sound: 2450 Hz / adjustable 0-82 dB
• light source: smooth regulation. brightness (40 x LED)
• light color: red
• operating modes: day I / day II / night I / night II
• housing color: white
• cooperation: sA series remote controls and transmitters
• operating temperature: -10 ÷ +55 ºC
• humidity (max): 93 ± 3%
• dimensions: 84×84×40mm
• weight: 73 g
