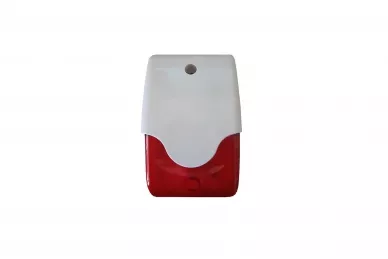

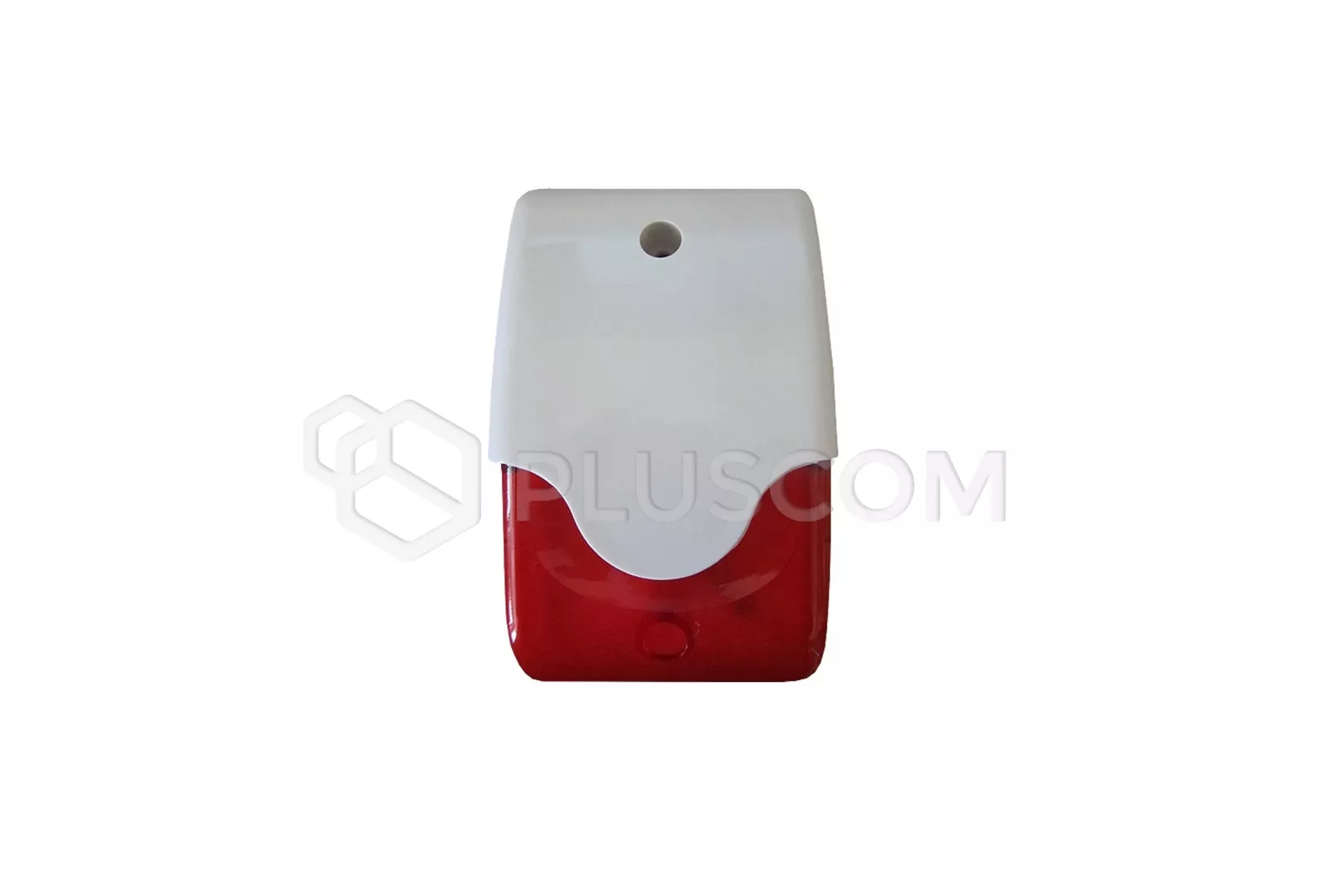

Gorke BSO-2H2 Radio optical signaling device

Gorke BSO-2H2 Radio optical indicator

High brightness optical indicator, switchable on/off using any sA series remote control/transmitter manufactured by Gorke Electronic. Any button on the remote control can be configured to turn optical signaling on or off.

Operating ranges of sets based on the BSO-2/Hx signaling device depend on the type of transmitter that cooperates with the siren i may be:

• for the H1 module - from 100 to 500 meters
• for the H2 module - from 200 to 1000 meters

(applies to open space).

Application: in the Paging System (signal placed above door of the room, facilitates the work of medical staff), wherever there is a need to turn on/off the siren via radio (signaling gates, cash registers, silent alarm).

The transmission is based on a variable assurance code high safety of use and resistance to radio signals from other devices. Each transmitter has its own individual code. Traffic light responds only to transmissions that come from transmitters programmed into his memory.

TECHNICAL DATA:

• frequency: 433.92 MHz
• encoding: variable code
• receiving module: heterodyne H1 or H2
• memory capacity: 40 keys
• power
• 12V DC(10-15V DC)
• power consumption:
• resting 22 mA
• maximum 180 mA
• operating modes: two-state (possibility to configure the remote control/key as an on or off key)
• cooperation: any sA series transmitter
• operating temperature: -10÷ +55 °C
• humidity (max): 93±3%
• dimensions: 70x120x45 mm
