Gorke AYK-437 BNC Directional antenna

104,00 EUR including 23.00% VAT
Product code: #25722
Manufacturer: Gorke
  • Frequency band: 420-442 MHz
  • Impedance: 50 Ohms
  • Connector: BNC
  • Cable length: 3m
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

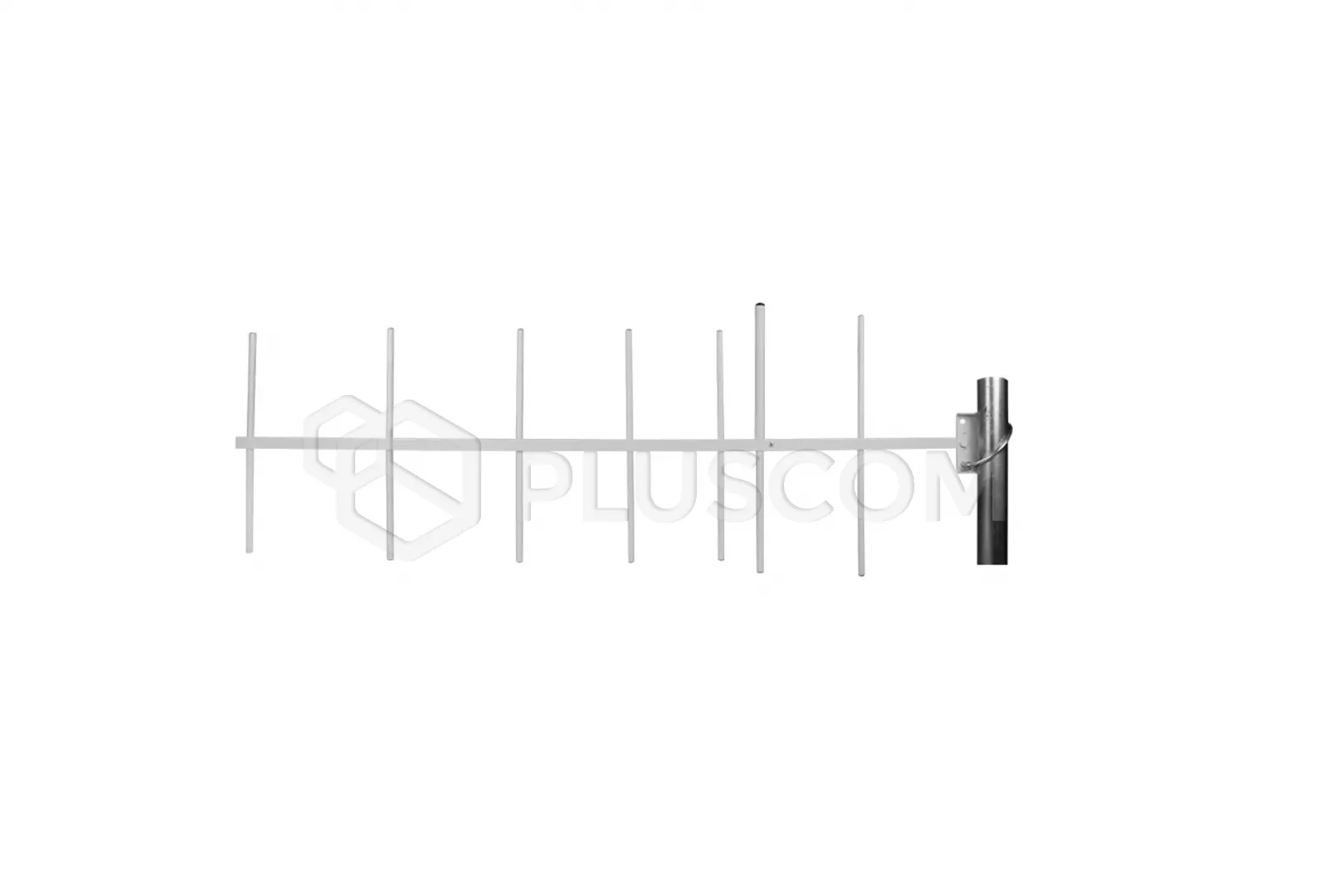

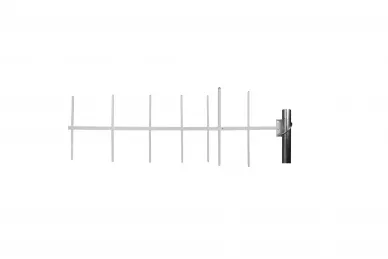

Gorke AYK-437 BNC directional antenna

AYK-437 is a Yagi directional antenna, 7 elements, supplied with a 3m RG58 cable with a BNC plug.

The antenna has a gain of 11.5 dB and, in accordance with applicable regulations, in When using it for cooperation with transmitters, this principle should be followed not to exceed the permissible radiated power of 10 dBm (EIRP). The transmitters we produce (NRP, RNB or RTS) have a set output power 10 dBm - measured on the BNC socket. To meet the requirements, the antenna path must be in place insert a 10dB attenuator or, for example, use an additional section of coaxial cable, which will reduce the radiated power to an acceptable level. IN case of using the RG58 cable, which has an attenuation of 35dB/100m for frequency 435MHz, a minimum of 28m of cable should be used. It is assumed that the remaining 1.5 dB will be lost on additional connectors.

TECHNICAL DATA:
  • frequency band: 420 - 442 MHz
  • type: directional Yagi 7-element
  • gain: 11.5 dBi
  • VSWR: ≤ 1.2 : 1
  • cable length: RG58 3m
  • connector: BNC
  • impedance: 50 Ohm
  • temperature operating range: -20 ÷ +55 °C
  • Radiation angle in the vertical plane (E): 45°
  • Radio angle in the horizontal plane (H): 65°
  • Antenna dimensions: 990x360x16mm
