Genius RAINBOW FAST 724 C Kit with 7m Arm

3771,07 EUR including 23.00% VAT
Product code: #43804
Manufacturer: Faac
  • KIT COMPOSITION:
  • 6130035 - RAINBOW FAST 724 C Barrier Unit
  • 428048 - L-arm 4m and 428050 - L-arm 3.3m
  • 6100293 - Hard spring black 520mm x 2 pcs
  • 6100294 - Mounting base
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Genius 6100297 Arm lighting kit (connection + lighting strip) RAINBOW Genius 6100300 RAINBOW Battery Charging Cable Kit Genius 6100278 RAINBOW Underarm Apron Faac 428806 Adjustable boom arm support Faac 390993 LED lighting strip 12 m for barrier Faac 390992 S/L boom lighting kit for barrier Faac 737621 Foundation base for fixed support Faac 428805 Adjustable barrier arm support Faac 6100299 RAINBOW Barrier lighting kit

Genius RAINBOW FAST 724 C Kit with 7m Arm


The set includes:
Genius RAINBOW FAST 724 C Kit with 7m Arm

Genius RAINBOW FAST 724 C Kit with 7m Arm

The Rainbow Fast 724 C self-locking barrier is an excellent solution for areas with high traffic: entrances to parking lots, garages or industrial areas. The use of an encoder enables obstacle detection during movement.

FEATURES:

  • Automatic arm balancing thanks to 2 springs
  • Lamps for the arm and barrier body
  • Control unit in an ergonomic and easily accessible housing
  • Encoder for obstacle detection
  • User-friendly unlocking mechanism with a dedicated key
  • Certified for continuous operation (over 1,000,000 cycles)

FAST self-locking barrier with encoder and integrated LYNX07 control unit.

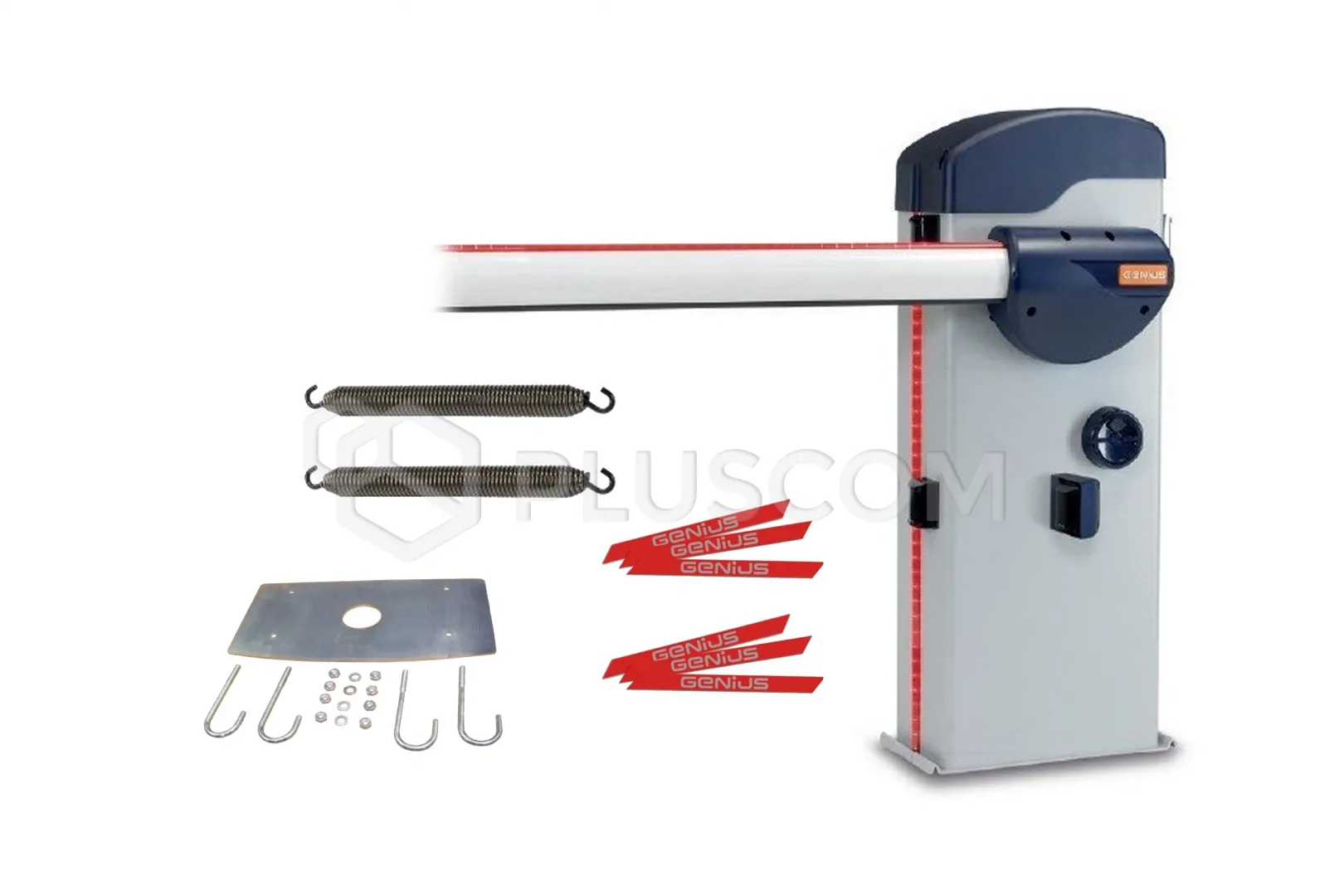

The set includes a 4300mm elliptical arm, a 3300mm elliptical arm with stickers, an arm connector, 2 x Ø 8.5 balancing springs and a mounting base.

TECHNICAL DATA

  • Power supply: 230 V
  • Electric motor: 24V
  • Max. power at thrust: 280 W
  • Nominal motor power: 160 W
  • Max. torque at 24Vdc: 155 Nm
  • Rated operating torque: 30 Nm
  • Nominal opening/closing time: 2 to 3 sec
  • Use frequency at -20°C: continuous
  • Ambient operating temperature: -20°C to +55°C
  • Noise: >70 dBA
  • Protection class: IP 54
  • Drive weight: 66 kg
  • Dimensions: 1225 x 415 x 268 mm
