Genius 6130035 RAINBOW 724 C Automatic barrier 24V

2563,37 EUR including 22.00% VAT
Product code: #26943
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Nominal opening/closing time: 7 sec. to 11 sec
  • Max. arm length: 7m
  • Encoder for obstacle detection
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 428616 L-arm Connector for B680H and RAINBOW 724 C barrier Faac 428050 Faac 428048 Elliptical L-shaped arm 4m Faac 6100293 Balancing spring for barrier arms Faac 428047 Single piece Faac 6100292 Balancing spring for barrier arms Faac 428806 Adjustable boom arm support Faac 6100299 RAINBOW Barrier lighting kit Faac 428444 Oval arm break kit Genius 6100297 Arm lighting kit (connection + lighting strip) RAINBOW

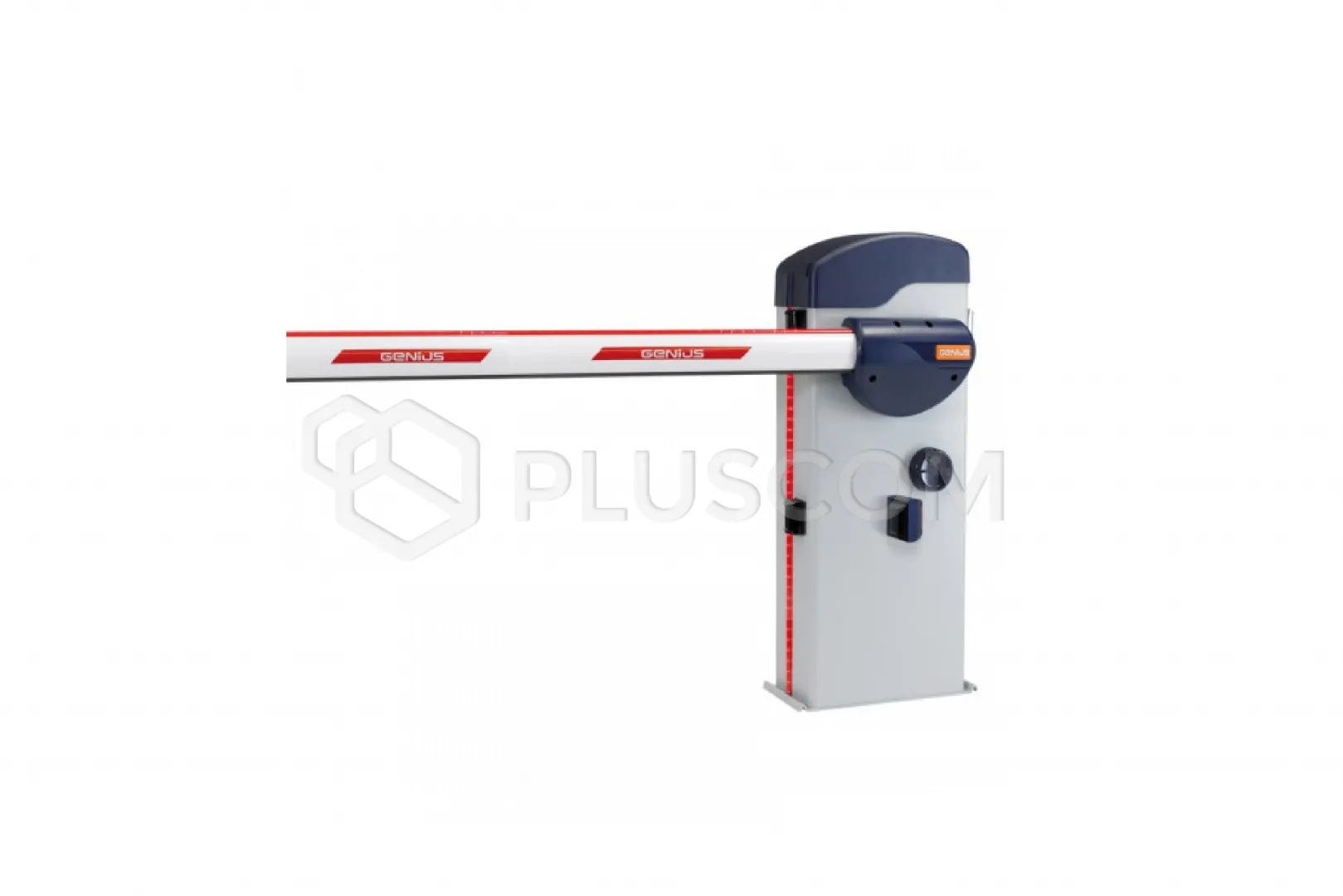

Genius 6130035 RAINBOW 724 C Automatic barrier 24V


The Rainbow 724 C self-locking barrier for arms with a maximum length of 7m is an excellent solution for areas with high traffic: entrances to parking lots, garages or industrial areas. The use of an encoder allows obstacle detection during movement.

FEATURES:

  • Latest generation electronic unit with power supply switching.
  • Prepared for the installation of accessories such as photocells.
  • Rotary unlocking mechanism accessible from the outside of the barrier body.
  • 24V version available for passages up to 3.5 and 7 m.
  • The 7 m arm is supplied in two elements with a connector.
  • Automatic arm balancing thanks to 1 or 2 springs.
  • Lamps for the arm and barrier body.
  • Control unit in an ergonomic and easily accessible housing.
  • Encoder for obstacle detection.
  • User-friendly unlocking mechanism with a dedicated key.
  • Certified for continuous operation (over 1,000,000 cycles)

Self-locking barrier with encoder and integrated LYNX08 control unit.

Technical data:

  • Power supply: 230 V
  • Electric motor: 24V
  • Max. power at thrust: 480 W
  • Nominal motor power: 220 W
  • Max. torque at 24Vdc: 370 Nm
  • Rated operating torque: 140 Nm
  • Nominal opening/closing time: 7 to 11 sec
  • Use frequency at -20°C: continuous
  • Ambient operating temperature: -20°C to +55°C
  • Noise: >70 dBA
  • Protection class: IP 54
  • Drive weight: 72 kg
  • Dimensions (H/W/D): 1225 x 470 x 278 mm
