Fuse module Pulsar AWZ 576 4x F0,5A

11,83 EUR including 23.00% VAT
Product code: #7617
Manufacturer: Pulsar
  • Outputs: 4x
  • Input: 2, plug the DC 5.5 / 2.1, screw terminals
  • Fuse: F0,5A
  • Input voltage: 10-30V DC

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fuse module Pulsar AWZ 580 8x F0,5A

Pulsar AWZ576 - fuse module, a power distribution module
  • 2 inputs the DC 5.5/2.1, screw connection
  • 4 outputs, screw connection
  • safety: fuse F0,5A
Fuse module Pulsar AWZ 576 4x F0,5A

Fuse module Pulsar AWZ 576 4x F0,5A


The module enables the power supply section 4 independent channels. Short circuit, sabotage or other attempt to damage the terminal does not affect the operation of other devices connected to the same power source.

The correct work function is indicated by LED.

Protections against:
  • a short circut SCP
  • an overload OLP
  • a surge
The module will check the alarm installations, CCTV systems.
An additional advantage is that by using the divider can reduce and arrange the amount of power cables in the installation.

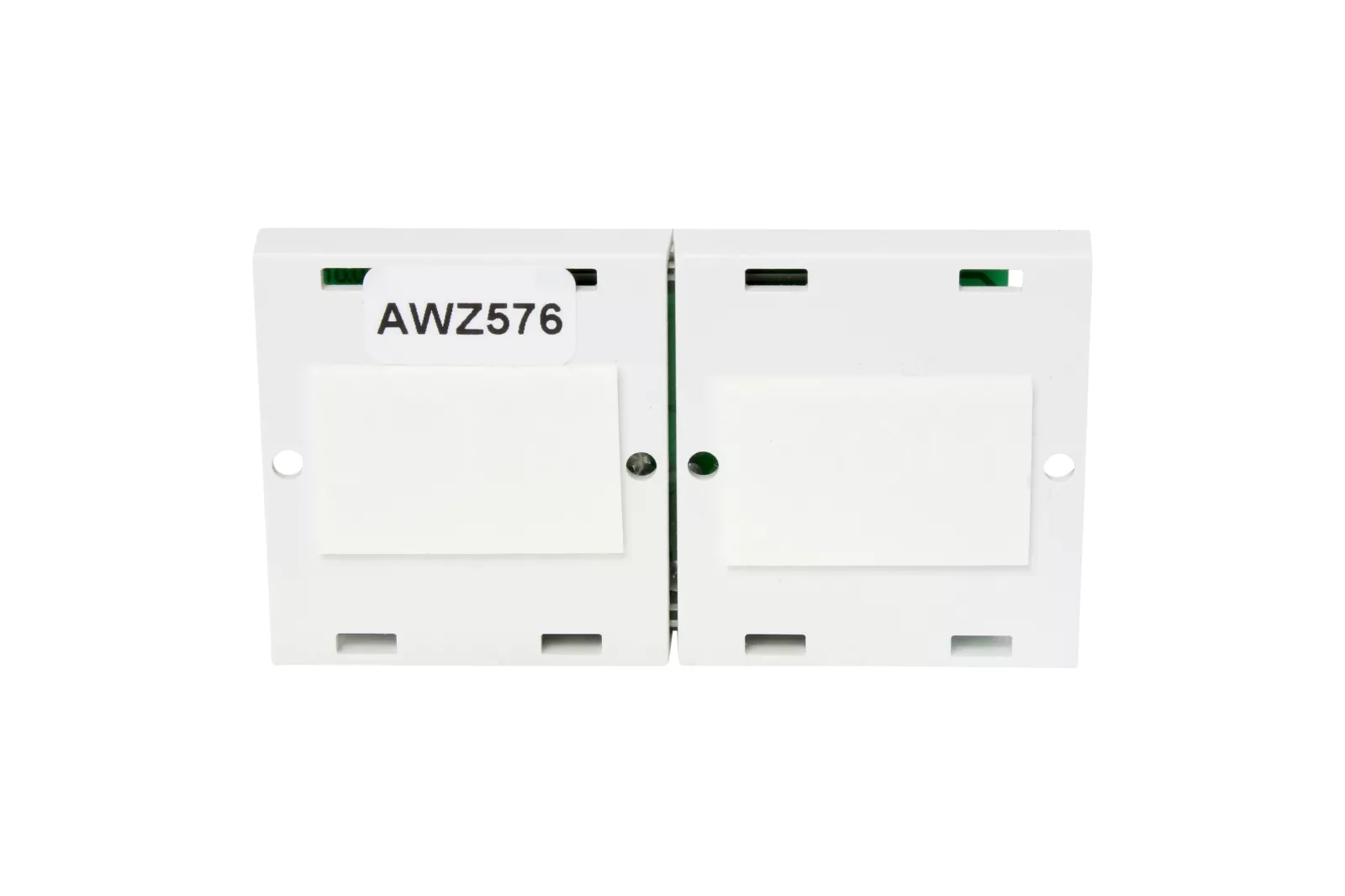

Mounting: adhesive tape or screws

Mounting: adhesive tape or screws


The module board is mounted on a plastic base plate, which can be mounted to a flat substrate by means of two screws
ø3mm or integrated adhesive tape.

TECHNICAL PARAMETERS:
  • supply voltage range: 10-30V DC
  • output voltage: Uout = Uin
  • power consumption: 5mA - 30mA
  • power inputs: 1x the DC 5.5/2.1, 1x screw terminals
  • number of outputs: 4x screw terminals
  • operating temperature: -10°C..50°C
  • size: 80x43x21mm
  • weight: 50g

Download
CE Declaration 0.29 MB
Datasheet 0.15 MB
Instruction 0.23 MB
