Fuse module in housing PulsarAWZ593 5x1A TOPIC

9,72 EUR including 20.00% VAT
Product code: #10662
Manufacturer: Pulsar
  • Outputs: 5
  • Input: 2
  • Fuse: 5x1A - TOPIC
  • Input voltage: 10-30V DC
  • additional power input - DC jack (5.5 / 2.1)
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fuse module in housing Pulsar AWZ 591 8x F1,0A

Pulsar AWZ593 - fuse module with enclosure LBC5/5x1A/FTA

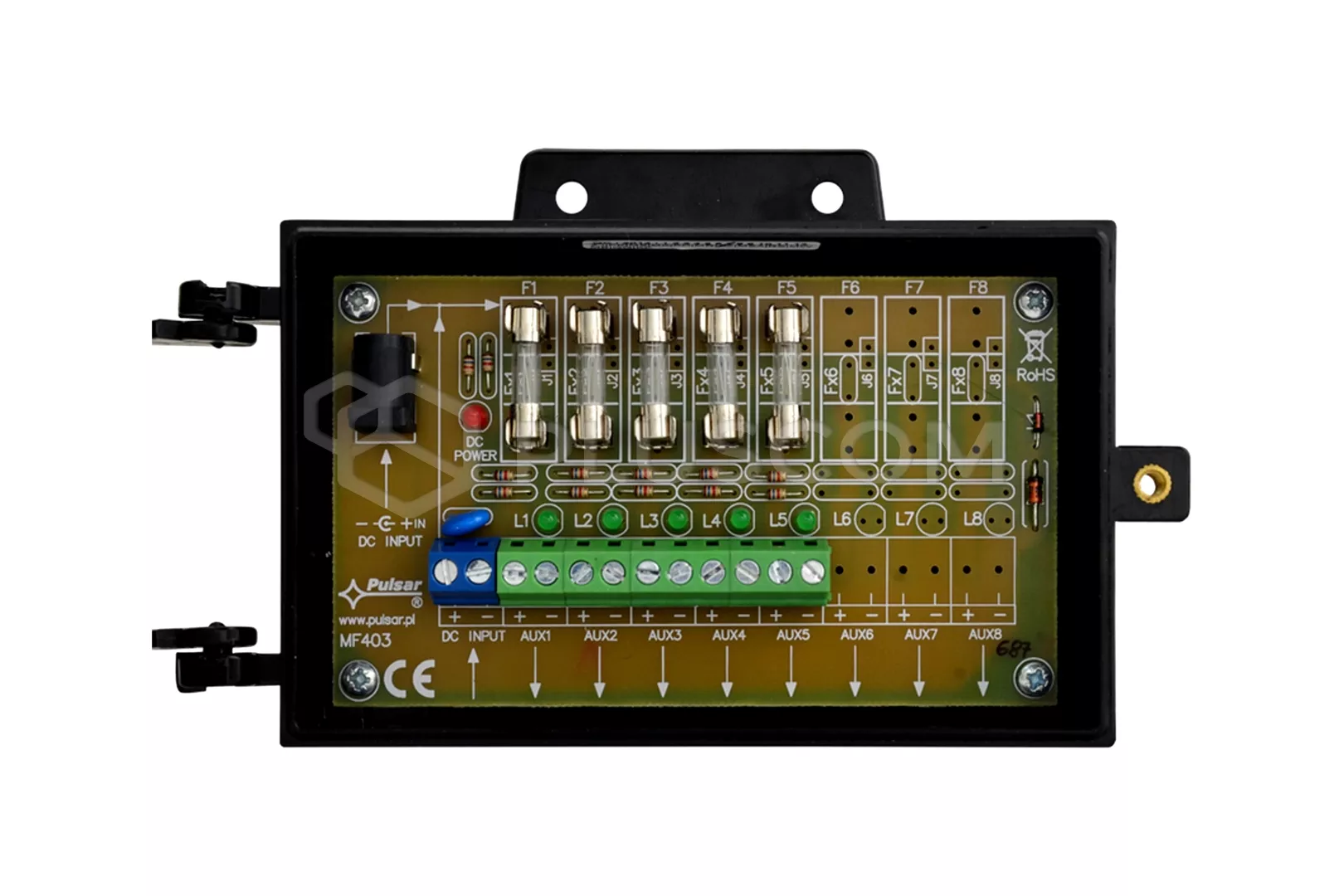

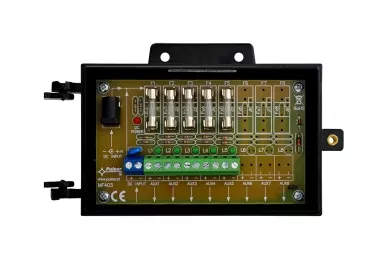

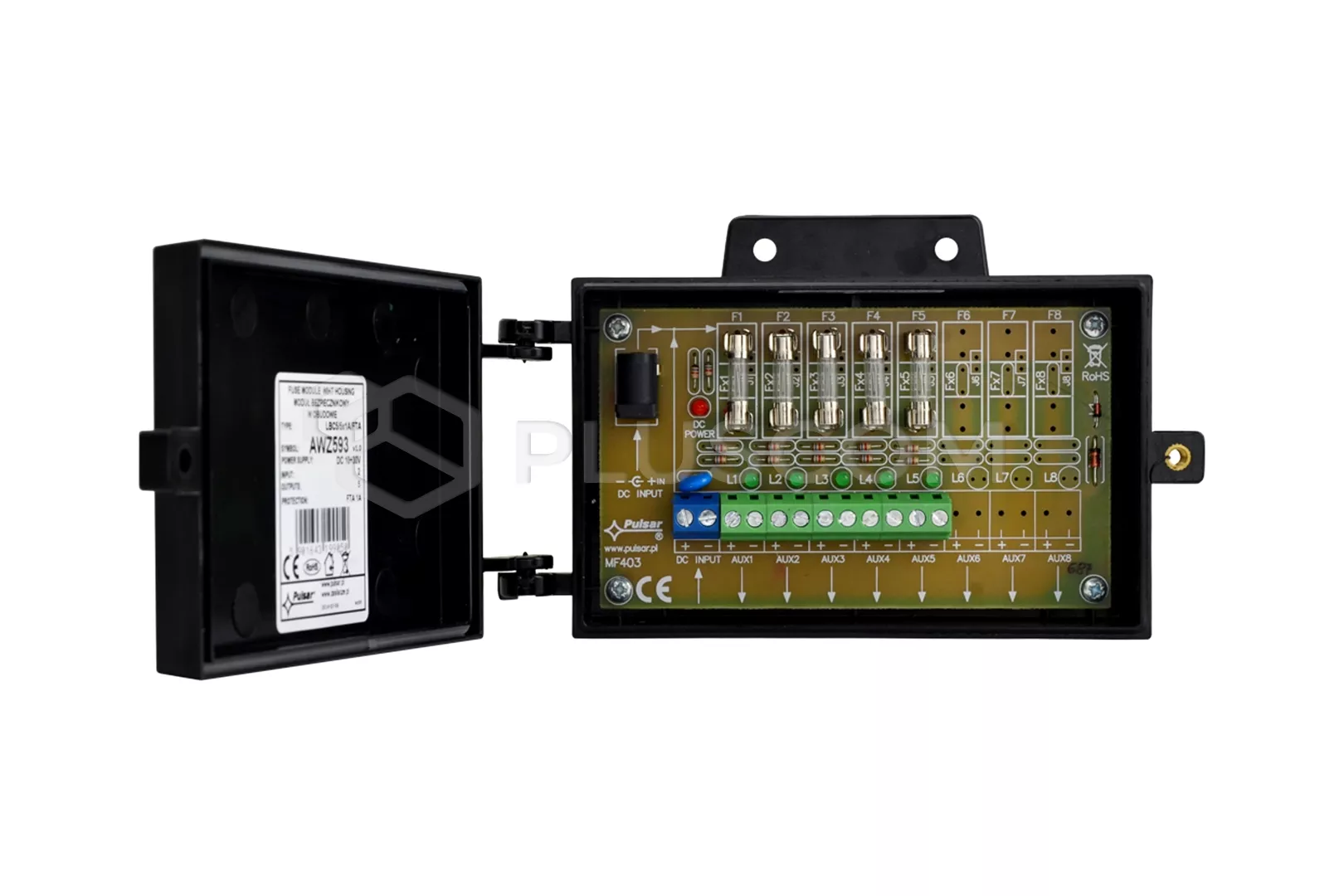

The LBC5 fuse module is designed for power distribution in CCTV systems requiring the voltage in the range 10V ÷ 30V DC. It is equipped with two power inputs: screw connection and DC jack 5.5/2.1 and five AUX1 ÷ AUX5 power outputs independently protected with 1A melting fuses. PTC fuse activation is indicated by switching off the corresponding LED of the module: L1 for AUX1, L2 for AUX2 etc. Additionally, the module's input is protected by a varistor, protecting the power supply against surges in the power supply system.

Protections against:
  • a short circut SCP
  • an overload OLP
  • a surge

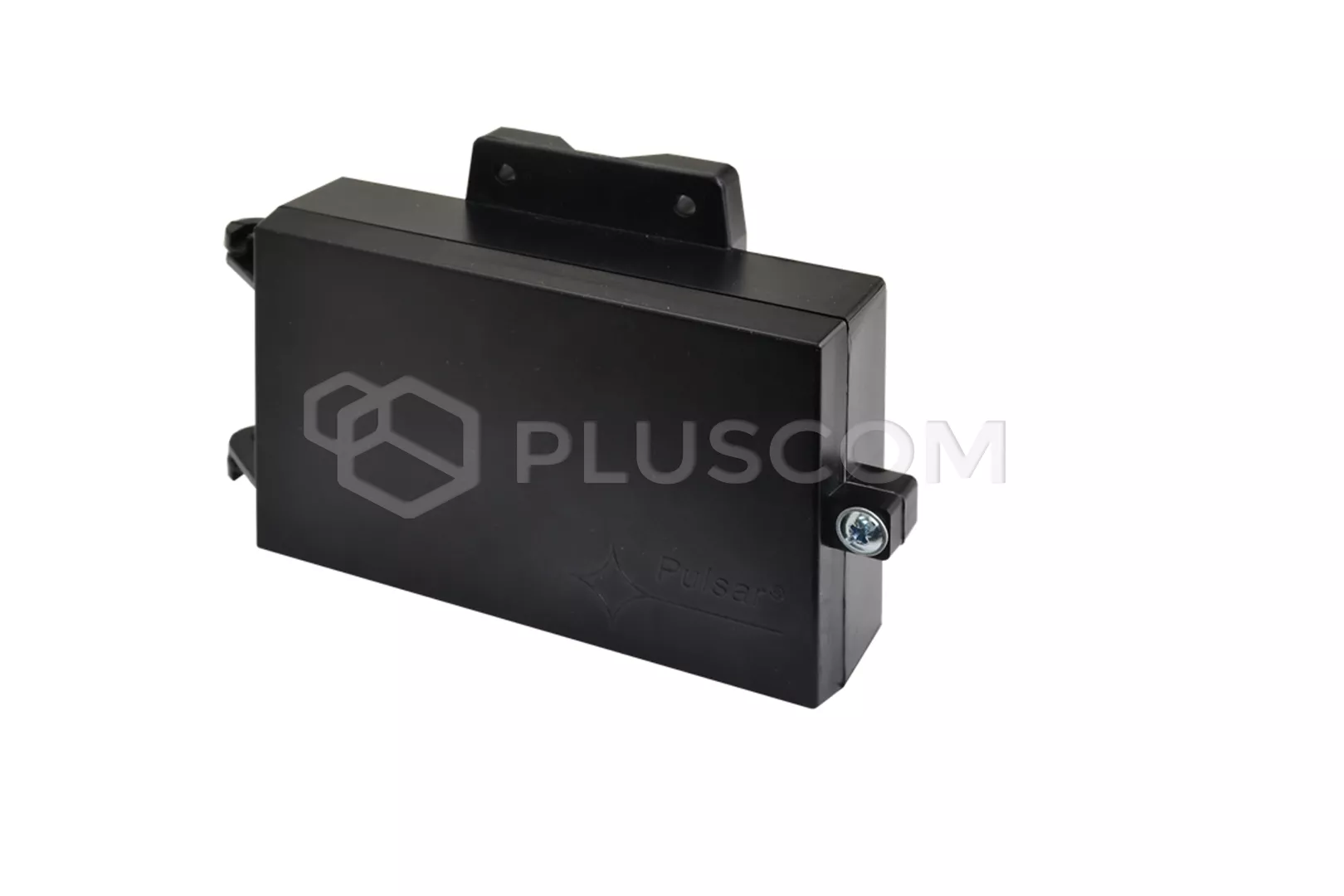

Fuse module in housing PulsarAWZ593 5x1A

Fuse module in housing PulsarAWZ593 5x1A


Mounting options: wall mounting – mounting screws x 2, mounting on a mast - hose clamp

TECHNICAL PARAMETERS:
  • voltage range: 10-30VDC
  • Mounting options: wall mounting – mounting screws x 2, mounting on a mast - hose clamp
  • power consumption: 5mA - 50mA
  • power inputs 2: DC jack 5,5/2,1 or screw connection
  • number of outputs: 5 (AUX terminals)
  • 5x1A – TOPIK
  • operating temperature: -10°C..40°C
  • dimensions: 150x94x42mm
  • weight: 0.23kg
Download
Datasheet 0.26 MB
Declaration CE 0.32 MB
Instruction 0.26 MB
