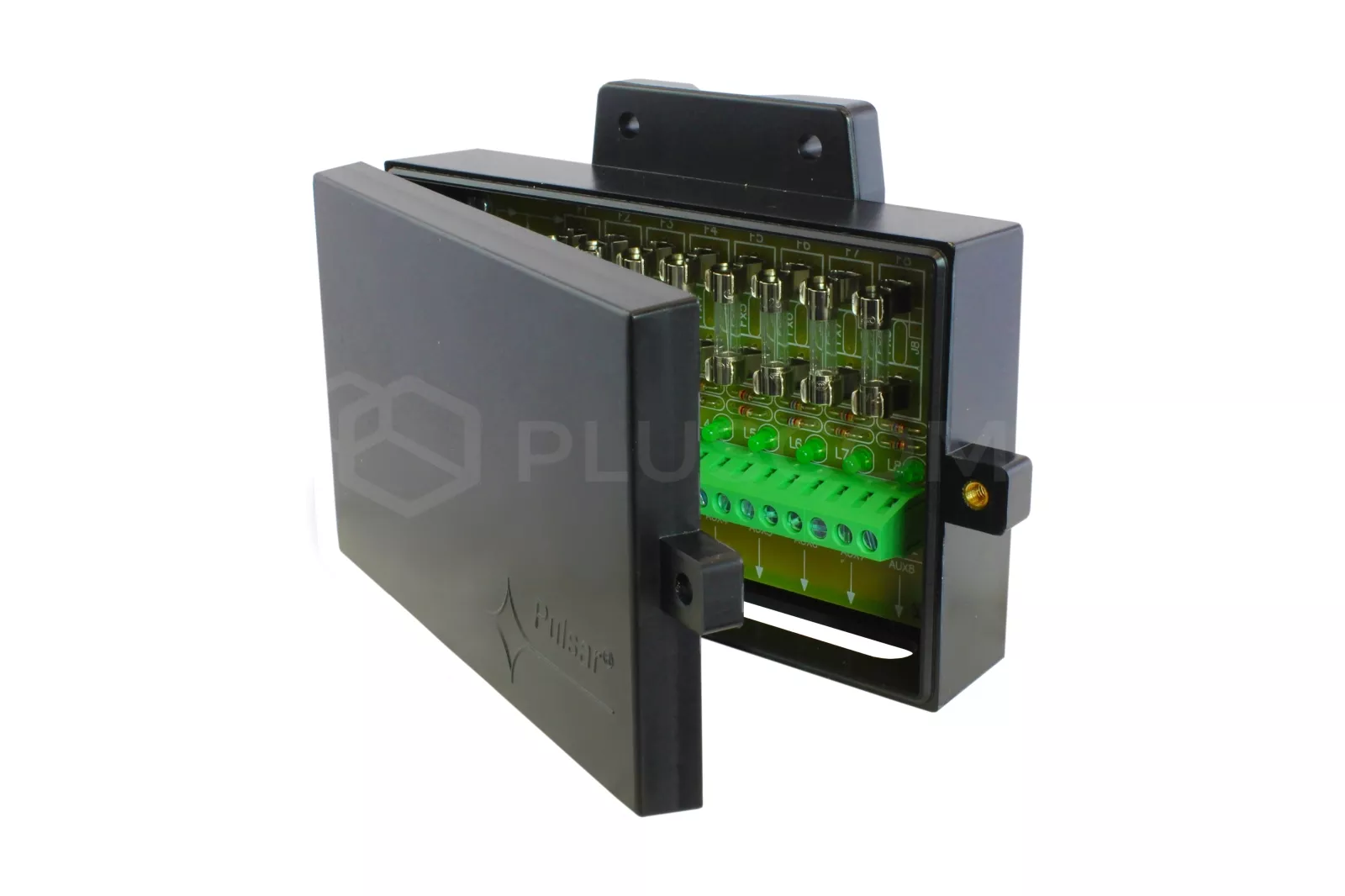

Fuse module in housing Pulsar AWZ 591 8x F1,0A

12,14 EUR including 23.00% VAT
Product code: #7623
Manufacturer: Pulsar
  • Outputs: 8x
  • Input: 2, plug the DC 5.5 / 2.1, screw terminals
  • Fuse: F1,0A
  • Input voltage: 10-30V DC
  • Fuse module in housing
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fuse module in housing PulsarAWZ593 5x1A TOPIC
AWZ591 - fuse module, a power distribution module
  • 2 inputs the DC 5.5/2.1, screw connection
  • 8 outputs, screw connection
  • safety: fuse F1,0A
  • robust housing
  • mount, 2x screws (holes Ø4mm) or using a hose clamp

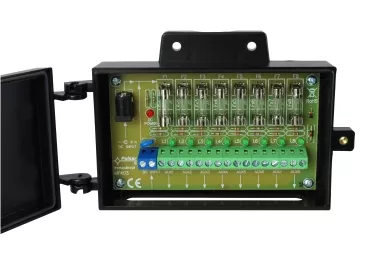

The interior of the module:

The interior of the module:


The module enables the power supply section 8 independent channels. Short circuit, sabotage or other attempt to damage the terminal does not affect the operation of other devices connected to the same power source.

The correct work function is indicated by LED.

Protections against:
  • a short circut SCP
  • an overload OLP
  • a surge
The module will check the alarm installations, CCTV systems.
An additional advantage is that by using the divider can reduce and arrange the amount of power cables in the installation.

The module board was placed in a sturdy plastic housing. The flap edge sealing gasket is placed by the intrusion into the water.

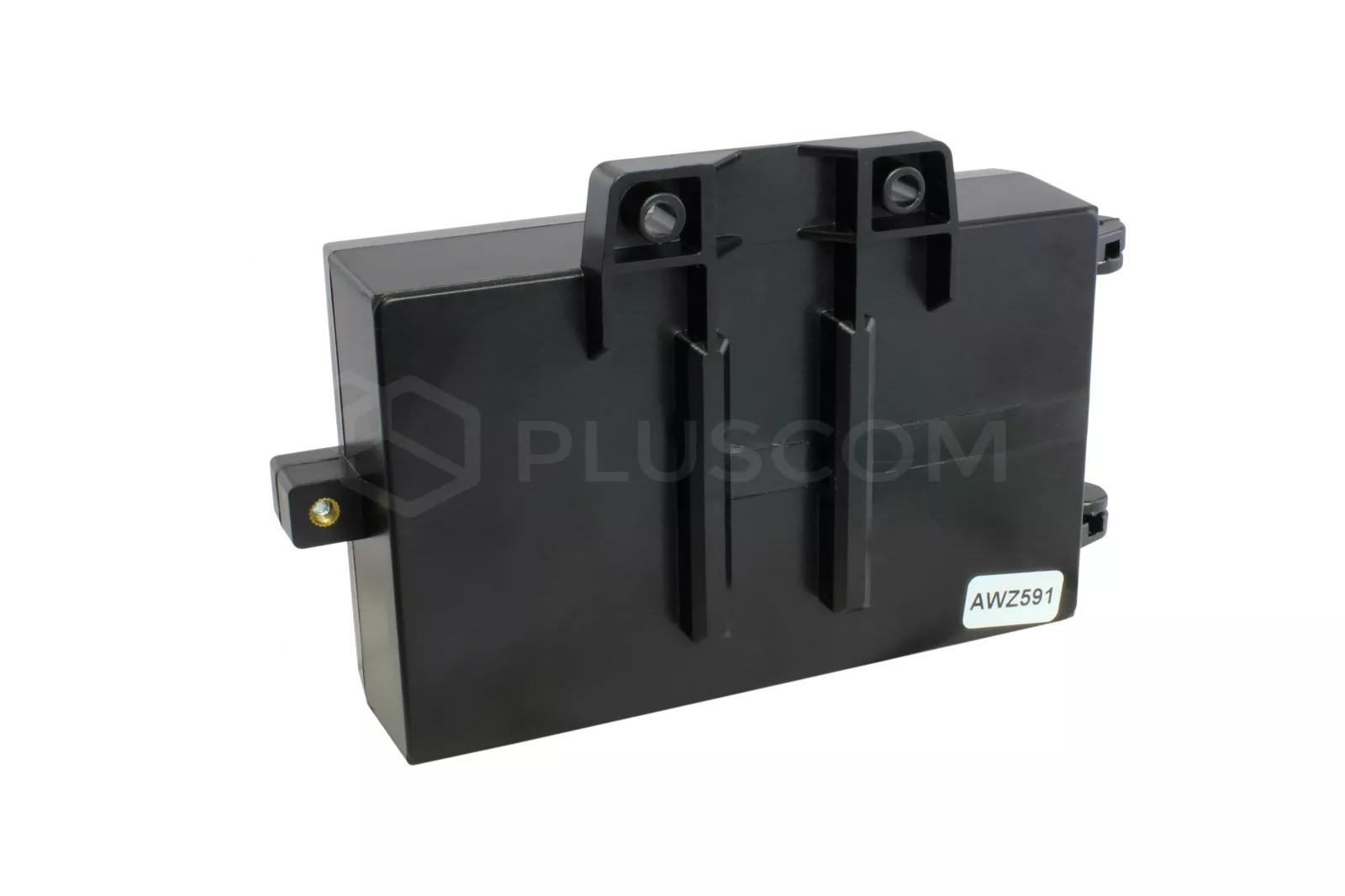

Mounting: screws or clamp

Mounting: screws or clamp


The housing fastened to the base by means of screws (two holes Ø4mm) and the hose clamp to the mast.

TECHNICAL PARAMETERS:
  • supply voltage range: 10-30V DC
  • output voltage: Uout = Uin
  • power consumption: 8mA - 70mA
  • power inputs: 1x the DC 5.5/2.1, 1x screw terminals
  • number of outputs: 8x screw terminals
  • operating temperature: -10°C..40°C
  • size: 126x78+16x42mm
  • weight: 170g
Download
CE Declaration 0.16 MB
Datasheet 0.22 MB
Instruction 0.31 MB
