Fadini JUNIOR 650 K650.2L Sliding gate kit

Fadini JUNIOR 650 K650.2L Sliding Gate Kit

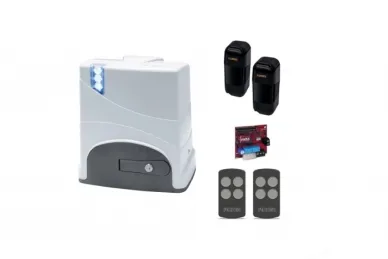

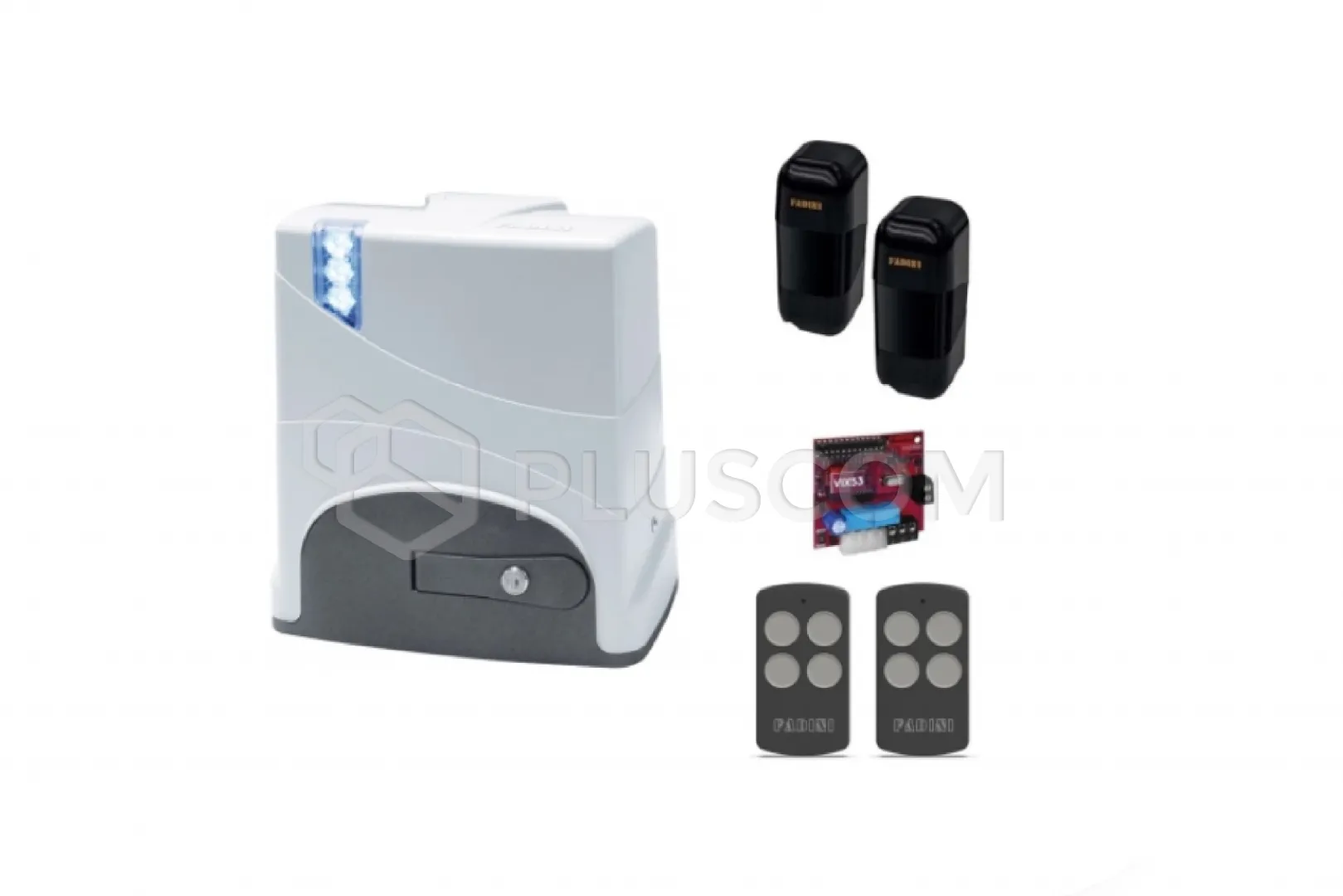

The kit includes: Motor for sliding gates weighing up to 1200kg FADINI JUNIOR 650, BUILT-IN ELPRO 65 CONTROL UNIT Pair of adjustable photocells 570L ORBITA 57 Radio receiver 5311L VIX 53/2 R 2x 4-channel remote control, 868.19 MHz graphite 5313SL VIX 53/4 TR

Fadini JUNIOR 650 K650.2L Sliding gate kit

DESIGN

Modern design with blue LED on the housing to identify the automation status.

SILENT

230 V AC gear motor, equipped with a worm gear in oil bath and bronze pinion, on ball bearings.

INTUITIVE AND SAFE

Programming of the gate movement with a single button, acceleration and deceleration with each movement. Magnetic limiter.
Anti-crushing system thanks to the combined action of the encoder and amperometric obstacle detection, designed to reverse the direction of movement. Unlocking by means of an aluminum lever with key.

UNIVERSAL

To automate two gates with opposite wings by selecting the master/slave function in ELPRO 65.

TESTED AND CERTIFIED

Compliant with European standards EN 12445 and EN 12453 and CE marking.

Technical data:

• Power supply (Vac – Hz): 230 - 50
• Max. power consumption (W): 510
• Max. current consumption (A): 2.4
• Max. torque (N): 1,000
• Engine speed (rpm): 1,350
• Speed (m/min): 10
• Gear ratio: 1:32
• IP protection class: 54
• Oil type: 706L
• Operating temperature (°C): -20 ÷ +50
• Engine thermal protection (°C): 160
• Weight (kg): 13.5
• Usage frequency: intensive
