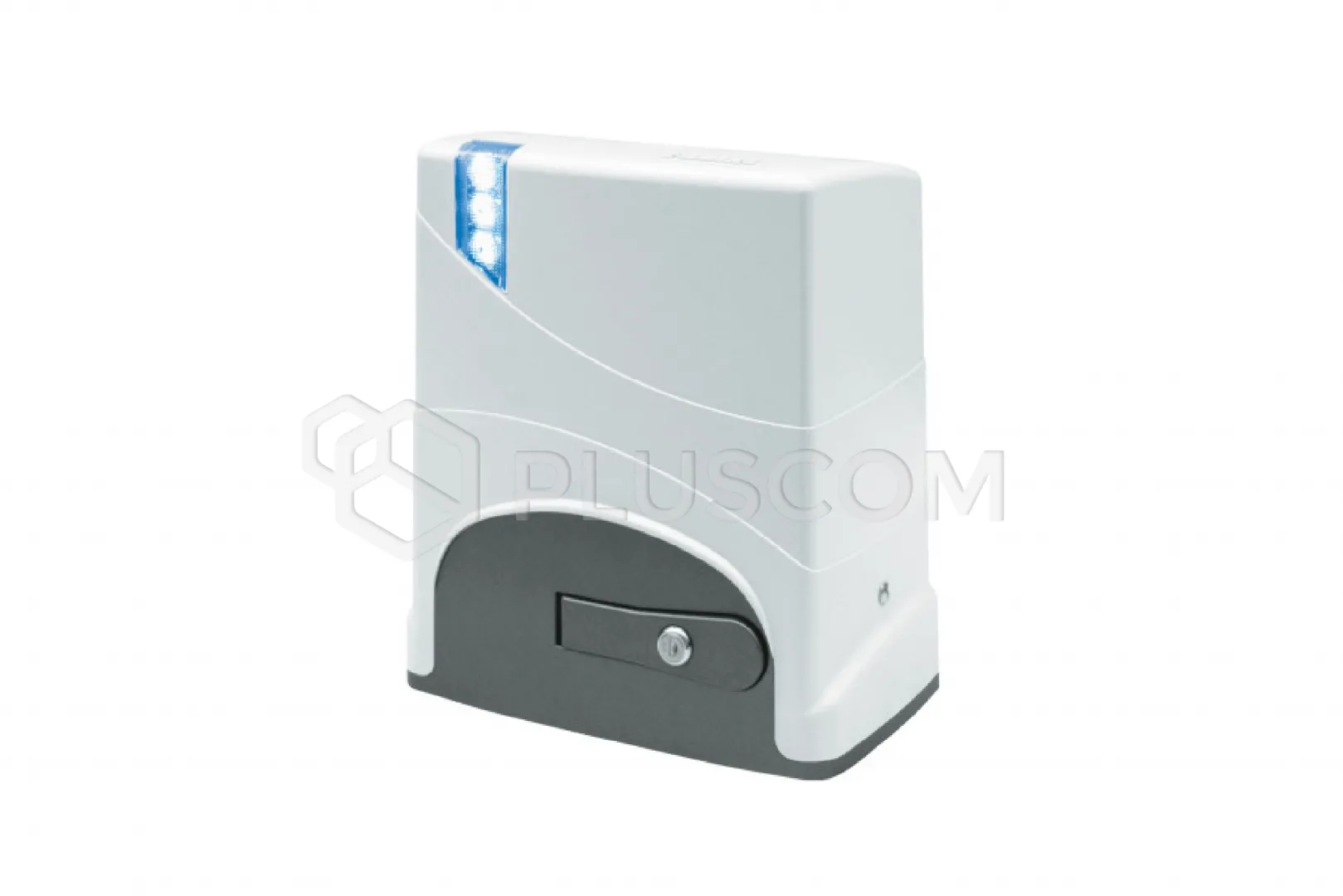

FADINI JUNIOR 650 Sliding gate operator 230V 1 PH with built-in control
unit up to 1200 kg
JUNIOR 650 230V 1PH (0.37 kW / 0.5 HP) electromechanical gear drive with
built-in ELPRO 65 control unit, rated for up to 1200 kg, for industrial use.
An encoder for anti-crush safety, a gear for the rack, a mounting plate with
ground anchors, two emergency opening keys, a magnetic limit switch, and a pair
of limit switch holders.
DESIGN
Modern design with a blue LED on the housing to indicate the
automation status.
QUIET
230V AC motor, equipped with an oil-bath worm gear and a bronze
gear wheel with ball bearings.
INTUITIVE AND SAFE
Program the gate's movement with a single
button, accelerating and decelerating with each movement. Magnetic limit
switch.
Anti-crushing system using a combined encoder and amperometric obstacle
detection to reverse the movement.
Unlocks using an aluminum lever with a key.
Universal
For automating two gates with opposing leaves by selecting
the master/slave function in ELPRO 65.
Tested and certified
Complies with European standards EN 12445 and EN
12453 and CE marking.
Safety device with automatic testing
Automatic testing technology for
photocells connected to the system.
If any fault is detected in a photocell, the system will cease operation until
the problem is detected and repaired.
This solution guarantees a high level of safety.
Device with automatic testing function - safety edges
Safety edge
monitoring technology integrated into the system (meets the requirements of EN
12978 and EN 13849-1).
The actual integrity and correct operation of the safety system are constantly
monitored using a dedicated and separate microcontroller installed on the
board.
Any malfunctions or loss of performance will be signaled by continuous flashing
of the diagnostic indicator lights on the safety edges.
Self-locking device
Hydraulic actuator with a self-locking device that
slows down the movement of the gate leaf, depending on the model, during the
opening, closing, or both phases.
Electromechanical actuator equipped with an electronic brake and a slowing
system during the opening and closing of the gate leaf.
RT DATA
Real-time control system capable of quickly responding to any
possible external events (weather conditions, temperature, mechanical friction,
etc.) that could compromise the proper operation of the installation.
The microprocessor's data processing speed allows the control unit to
increase the contact force (motor torque) to properly close and open the gate
leaf while maintaining safety conditions.
This real-time reading process is designed to provide effective support to the
installer during system adjustments.
LED DIODES
LED technology saves up to 95% energy and provides up to 50
times longer lifespan than incandescent bulbs.
High brightness and visibility. Environmentally friendly, meeting the
requirements of Directive 2005/32/EC.
Electromechanical Technology
The actuator uses a motion transmission
system using an electric motor and a speed reducer (worm and gear).
Technical Specifications:
- Power Supply: 230V - 50Hz
- Max. Power Consumption: 510W
- Max. Current Consumption: 2.4A
- Max. Torque: 1000 N
- Motor Speed: 1,350 rpm
- Speed: 10 m/min
- Gear Ratio: 1:32
- Protection Rating: IP54
- Oil Type: 706L
- Operating Temperature: -20°C ÷ +50°C
- Motor Thermal Protection: 160°C
- Weight: 13.5 kg
- Frequency of Use: intense
