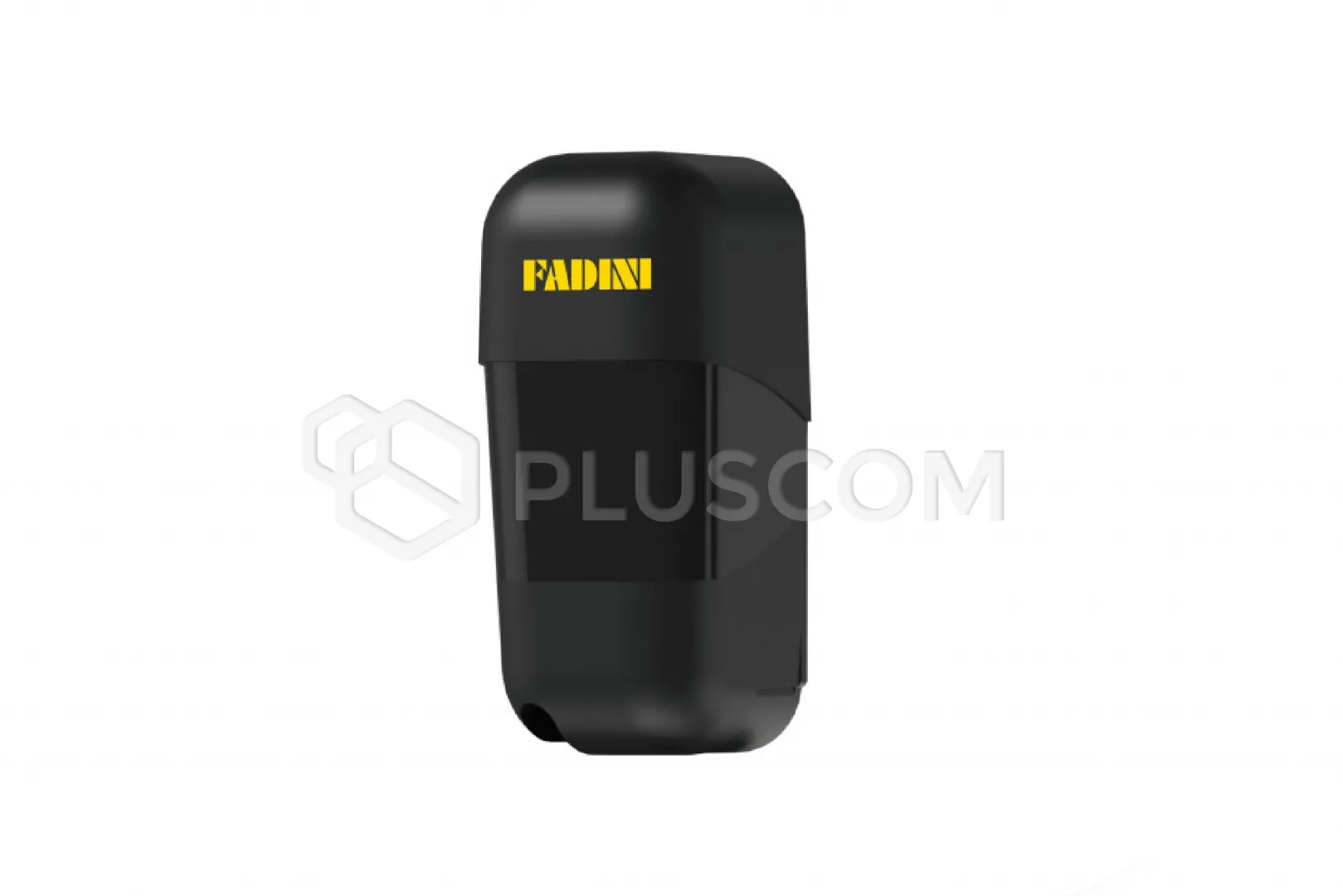

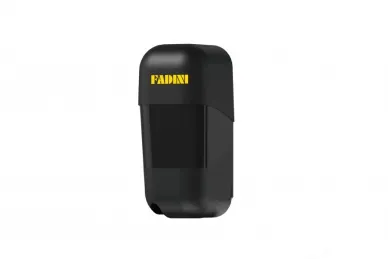

Fadini 5802L ARPO 58 Pilot

Fadini 5802L ARPO 58 Remote Control

WIRELESS RADIO TRANSMITTER FOR EDGE STRIPS

Radio safety device designed to operate edge strips used in automated installations such as sliding, swing, roller, tilt, segment, high-speed gates and barriers. The device does not require a cable connecting the transmitter to the receiver.

FLEXIBLE

A transmitter with 2 configurable outputs supporting both NC mechanical edges and 8.2 kΩ resistive ones. The possibility of pairing up to four transmitters per receiver allows for the management of as many installations located close to each other without interference.

INTELLIGENT

The actual integrity and correct operation of the safety system are constantly monitored by means of a dedicated and separate microprocessor system installed on the board. Meets the requirements of the EN 12978 and EN 13849-1 standards.

SAFE

Real-time control of connected accessories and automatic reading of the battery charge level and range between the receiver and transmitters. Two-way radio communication at 868 MHz. Stop contact in the event of an error, to stop the automation movement, thanks to a third dedicated NC relay. Range: 100 m with antenna and 30 m without antenna. Power supply voltage 12 or 24 V AC/DC or 2 AA batteries with a voltage of 1.5 V.

Technical data:

• Power supply: 2 x 1.5 AA
• Battery life: 4 years
• Frequency: 868MHz
• Range: 100m
• Max number of transmitters: -
• Frequency possibilities: 4
• Outputs: -
• Relay contact load capacity: -
• Operating temperature: -20°C ÷ +70°C
• Current consumption: 12 mA
• Protection class: IP55
• Compatible safety edges: mechanical and/or resistive 8.2kΩ
