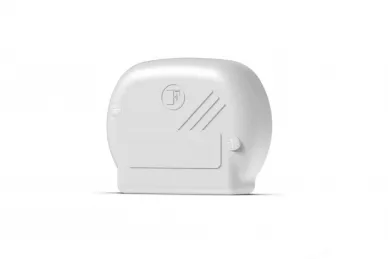

Fadini 5801L ARPO 58 Receiver Module

Fadini 5801L ARPO 58 Receiver Module

WIRELESS RADIO TRANSMITTER FOR EDGE STRIPS

Radio safety device designed to operate edge strips used in automated installations such as sliding, swing, roller, tilt, sectional, high-speed gates and barriers. The device does not require a cable connecting the transmitter to the receiver.

FLEXIBLE

Transmitter with 2 configurable outputs supporting both NC mechanical strips and 8.2 kΩ resistive ones. The possibility of pairing up to four transmitters per receiver allows management without interference of just as many installations located close to each other.

INTELLIGENT

The actual integrity and correct operation of the safety system are constantly monitored by a dedicated and separate microprocessor system installed on the board. Complies with the requirements of the EN 12978 and EN 13849-1 standards.

SAFE

Real-time control of connected accessories and automatic reading of the battery charge level and range between the receiver and transmitters. Two-way radio communication at 868 MHz. Stop contact in the event of an error, to stop the movement of the automation, thanks to a third dedicated NC relay. Range: 100 m with antenna and 30 m without antenna. Power supply voltage 12 or 24 V AC/DC or 2 AA batteries with a voltage of 1.5 V.

Technical data:

• Power supply: 12/24V
• Battery life: -
• Frequency: 868MHz
• Range: 100m with antenna, 30m without antenna
• Max. number of transmitters: 4
• Frequency options: 4
• Outputs: 2 (NO or NC selectable) + 1 safety stop
• Load capacity from relay contact: 1A / 24V DC
• Operating temperature: -20°C ÷ +70°C
• Current consumption: 66 mA
• IP53 rating
• Compatible safety edges: -
