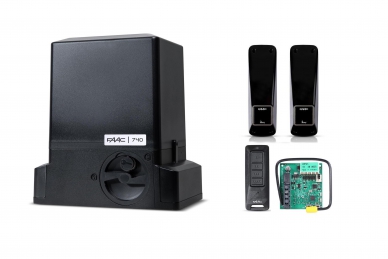

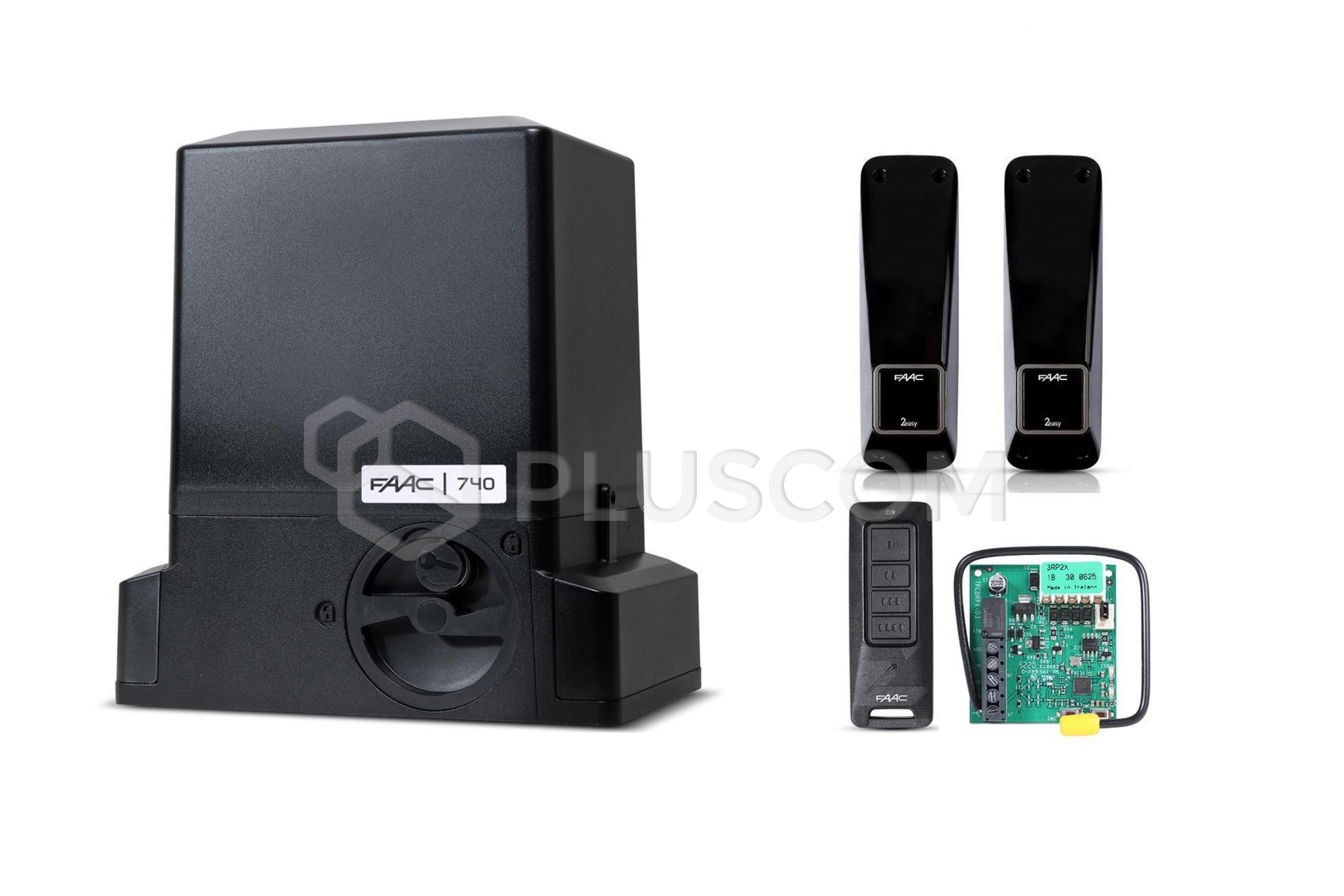

Faac Delta 2-740 Starter Kit for Sliding Gates up to 500kg
THE SET INCLUDES:
|
Faac DELTA 2 Kit 230V drive for gates up to 500kg
|
The DELTA 2-740 is an electromechanical operator designed for sliding
gates. An irreversible reduction system ensures mechanical locking of the gate
when the gearmotor is not working, eliminating the need to install an electric
lock. A convenient manual release mechanism with a personalized key allows the
gate to be operated in the event of a power outage or drive malfunction.
The operator is equipped with a mechanical limit switch with a spring lever,
which controls the gate's stop when the profiled sheet metal mounted on the
top of the rack activates the spring until the microswitch is activated. The
sheet metal support can be mounted on all racks with a maximum width of 13 mm.
The key advantages of the drive and the kit include:
- Quick and easy installation thanks to the built-in central unit
- Self-locking drive - no electromagnetic lock required, even in the event
of a power outage
- In the event of a power outage, the key-operated unlocking device allows
manual opening and closing of the gate
- Simplified display programming
- Magnetic limit switch
The FAAC XT4 FDS 433-868 SLH LR remote control enables
convenient and efficient control of automation systems. Thanks to advanced
technology, the remote control features a rolling code, ensuring a high level
of security and protection against unauthorized access. It features maximum
anti-cloning protection. This is ensured by an advanced security scheme based
on Secure Vault hardware technology (PSA Level 3 certification) and TrustZone,
a state-of-the-art method for securing digital financial transactions and IoT
High Security devices/networks. FDS is a frequency modulation-based radio
protocol with the highest performance in terms of range and battery life; radio
transmission is secured by an AES-128 symmetric encryption algorithm with a
128-bit key. The authenticity of the remote controls is verified using a chain
of personalized FAAC security certificates.
The modern XP 20B D photocell with a 180° horizontal viewing
angle is equipped with a vertical, optical self-adjustment function,
particularly useful when the monitored area is not completely flat. The device
is equipped with a BUS power supply system – just two non-polarized wires,
allowing up to 16 pairs of photocells to be connected. The XP 20BD is protected
against interference from external light sources (e.g., vehicle headlights).
The RP2 FDS 433-868 MHz 2-channel radio receiver is designed
for gate automation, operating in two frequency bands: 433 MHz and 868 MHz.
Equipped with a 5-pin quick connector, it allows for quick and easy
installation without additional wiring. The receiver ensures reliable
communication with FAAC remote controls, allowing you to control various system
functions.
FEATURES:
- Dual-channel radio receiver – can control two devices or functions
- Operating frequency: 433 MHz and 868 MHz
- 5-pin quick connector – quick plug-in installation in compatible FAAC
control units
- Coding: compatible with FAAC remote controls compatible with the FDS
system
DANE TECHNICZNE:
- Napięcie zasilania: 220-240 V AC 50/60 Hz
- Rodzaj silnika: asynchroniczny, jednofazowy
- Maksymalny pobór mocy: 350 W
- Maksymalny moment obrotowy: 18 Nm
- Maksymalna siła ciągu: 450 N
- Stopień redukcji: 1:25
- Maksymalna szerokość skrzydła bramy: 15 m
- Prędkość przesuwu skrzydła bramy: 12 m/min
- Wyłącznik krańcow: mechaniczny
- Koło zębate: Z16 M4
- Enkoder: optyczny, inkrementalny
- Centrala sterująca: 740 D (wbudowana)
- Regulacja siły: poprzez centralę sterującą (50 poziomów)
- Maksymalny ciężar skrzydła bramy: 500 kg
- Częstotliwość użytkowania: S3 - 30%
- Temperatura otoczenia podczas pracy: -20°C ÷ +55°C
- Zabezpiczenie termiczne: 140°C
- Stopień ochrony: IP44
- Waga: 10 kg
- Wymiary urządzenia: 295x181x320 mm
- Power supply voltage: 220-240 V AC 50/60 Hz
- Motor type: asynchronous, single-phase
- Maximum power consumption: 350 W
- Maximum torque: 18 Nm
- Maximum thrust force: 450 N
- Reduction ratio: 1:25
- Maximum gate leaf width: 15 m
- Gate leaf speed: 12 m/min
- Limit switch: mechanical
- Gear: Z16 M4
- Encoder: optical, incremental
- Control unit: 740 D (built-in)
- Force adjustment: via control unit (50 levels)
- Maximum gate leaf weight: 500 kg
- Use frequency: S3 - 30%
- Ambient operating temperature: -20°C ÷ +55°C
- Thermal protection: 140°C
- Protection rating: IP44
- Weight: 10 kg
- Device dimensions: 295x181x320 mm
