Faac D700HS 24V Starter Kit

387,66 EUR including 23.00% VAT
Product code: #26718
Manufacturer: Faac
  • Pulling force: 700N
  • Max. gate width: 5m
  • Built-in E700HS control unit
  • Adjustable speed limiter with electronic deceleration
  • No rail included
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Single rail with 3600mm strip Faac XL24 L Flashing signal ligh Faac Single rail with 3000mm strip Faac XF 433 433 MHz frequency module Faac Single rail with 2400mm strip Faac Double rail with 4200mm strip Faac XBAT 24 emergency battery Faac 424591001-10 External unlocking mechanism Faac 63002425 Control unit spare parts D700 Faac 390768 Profiled arm for sectional doors

Faac D700HS Starter Kit

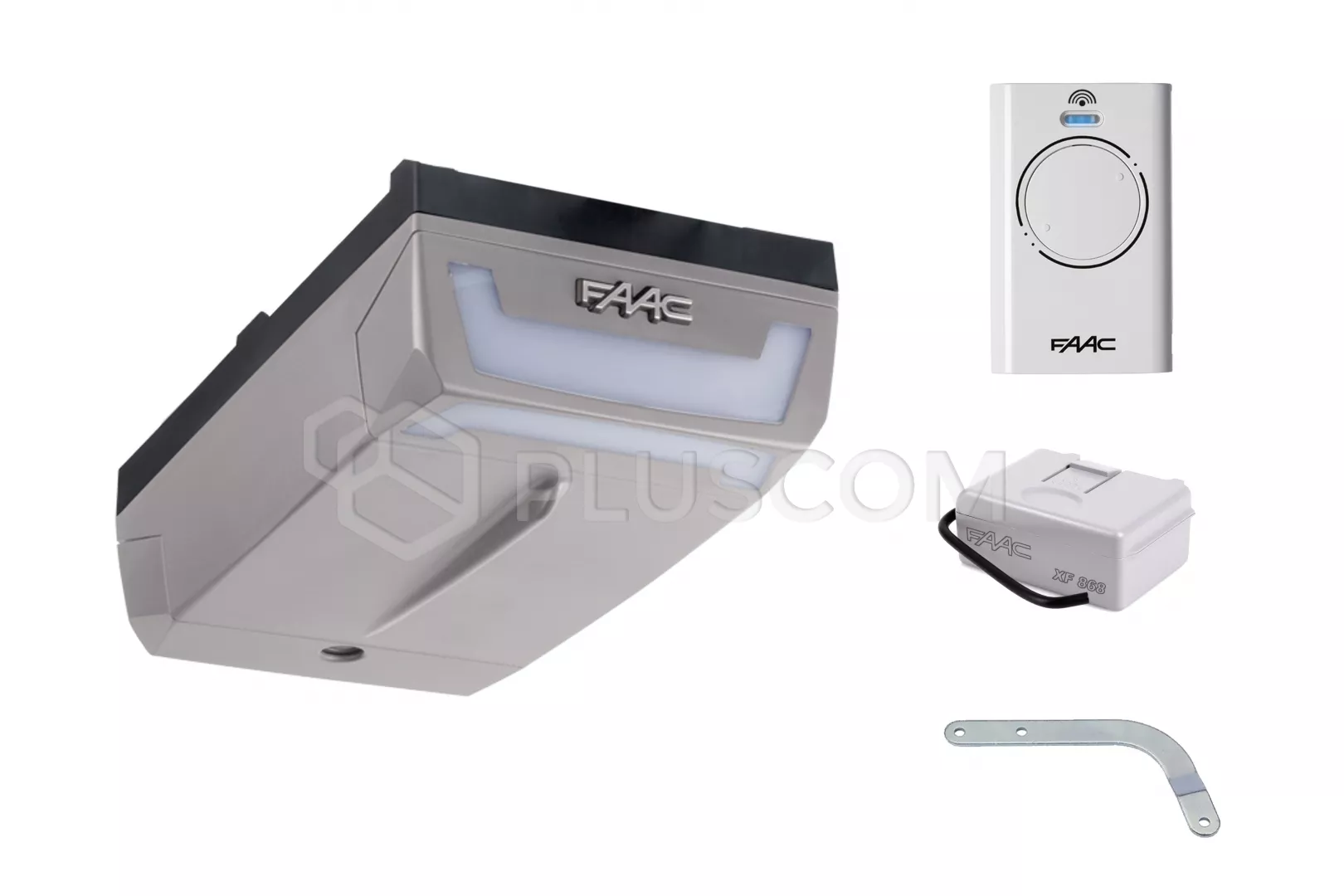

SET COMPOSITION:
  • 24V D700HS electromechanical drive
  • XT2 868SLH white remote control
  • XF 868 radio module
  • arm for sectional doors
Faac 105551 D700HS Starter Kit

Faac 105551 D700HS Starter Kit

The D700HS electromechanical drive with a 24V engine is dedicated to garage and sectional doors. It has a built-in E700 HS control unit, an encoder, an internal unlocking mechanism and lighting lamp.
The drive is self-locking, so the gate locks mechanically after stopping the engine. There is no castle so necessary. Two release cables are available, one from the inside and the other from the outside (optional). allow you to unlock the gate in the event of a breakdown or power failure. The drive is equipped with an electronic sensor that detects the presence of an obstacle blocking the gate movement.

Drive features:
  • max. dimensions of the swing gate: 3.00 m x 3.80 m
  • max. sectional gate dimensions: 5.00 m x 3.80 m
  • HIGH SPEED drive
  • speed up to 0.20 m/s - twice compared to traditional drives
  • usage frequency 100%
  • 24V brush motor
  • ideal for home use
  • self-locking anti-burglary mechanism: no additional locks required
  • double stabilized unlocking (FAAC PATENT)
  • quick, simple installation thanks to pre-assembled rail and tool-free drive installation via connector
  • adjustable speed limiter with electronic deceleration
  • chain/belt transmission
  • possibility to use a battery (XBAT 24) in the event of a power failure
The D700HS can only be equipped with the XL 24 L warning light.
Set without rail, which must be ordered additionally.

SPECIFICATION
  • Supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: brushed 24 V DC
  • Maximum power consumption: 440 W
  • Maximum thrust force: 700 N
  • Min lintel height: 35 mm
  • Interior lighting: 230 V - 40 W
  • Light time: 120 sec
  • Max. trolley speed: 12 m/min
  • Speed of the trolley when decelerating: 2.5 m/min
  • Max. door dimensions:
    • tilting gates: 3.00 m x 3.80 m
    • sectional gates: 5.00 m x 3.80 m
  • Control unit: E700HS built-in
  • Usage frequency: 100%
  • Encoder: electronic
  • Loudness: 45 dbA
  • Ambient temperature during operation: -20 °C ÷ +55 °C
  • Protection rating: for indoor use only (IP20)
  • Weight: 6.3 kg
  • Dimensions: 360x200x145 mm
