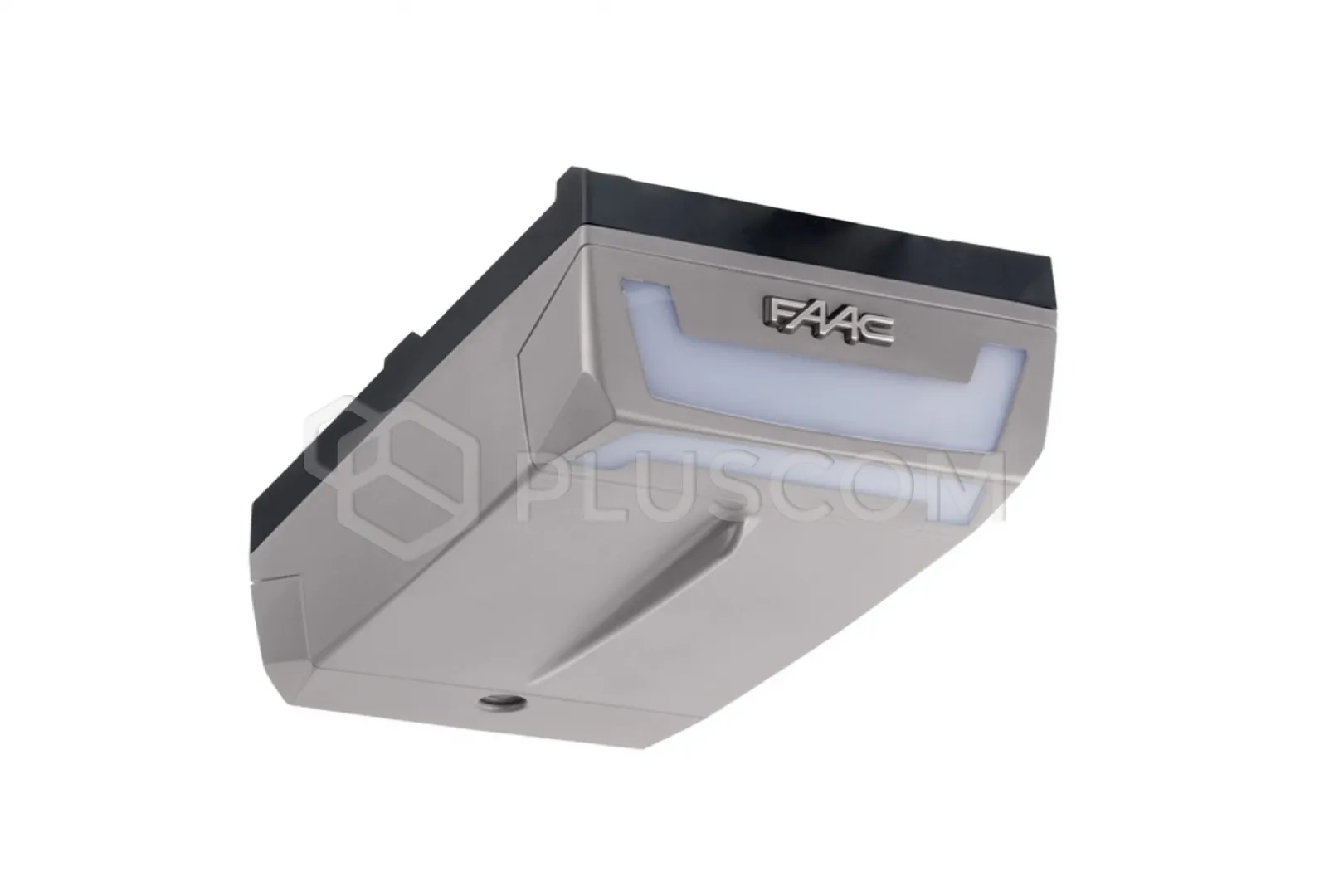

Faac D700HS Garage door actuator

Product code: #43874
Manufacturer: Faac
  • Pulling force: 700N
  • Max. gate width: 5m
  • Built-in E700HS control unit
  • Adjustable speed limiter with electronic deceleration
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac D700HS Garage door actuator


The D700HS electromechanical drive with a 24V motor is designed for garage and sectional doors. It features a built-in E700 HS control unit, an encoder, an internal unlocking mechanism, and a courtesy light. The drive is self-locking, so the door locks mechanically when the motor stops. A lock is therefore not necessary. Two release rods are available, one from the inside and one from the outside (optional), which allow you to unlock the door in the event of a power failure or power outage. The drive is equipped with an electronic sensor that detects the presence of an obstacle blocking the door's movement.

Drive features:
  • Max. dimensions of the overhead door: 3.00 m x 3.80 m
  • Max. Sectional door dimensions: 5.00 m x 3.80 m
  • High-speed drive (HIGH SPEED)
  • Speed ​​up to 0.20 m/s - twice as fast as traditional drives
  • 100% use frequency
  • 24V brushed motor
  • Ideal for home use
  • Self-locking anti-theft mechanism: no additional locks required
  • Double-stabilized release (FAAC patent)
  • Quick, easy installation thanks to the pre-assembled rail and tool-free drive installation using a connector
  • Adjustable speed limiter with electronic slowdown
  • Chain/belt drive
  • Battery option available (XBAT 24) in the event of a power outage. The D700HS can only be equipped with the XL 24 L warning light.
    Kit without rail, which must be ordered separately.

    SPECIFICATIONS
    • Power supply voltage: 220-240 V AC 50/60 Hz
    • Motor type: brushed 24 V DC
    • Maximum power consumption: 440 W
    • Maximum thrust force: 700 N
    • Min. headroom: 35 mm
    • Interior lighting: 230 V - 40 W
    • Lighting time: 120 sec
    • Max. carriage speed: 12 m/min
    • Carriage speed when decelerating: 2.5 m/min
    • Max. Door dimensions:
      • Over-and-over doors: 3.00 m x 3.80 m
      • Sectional doors: 5.00 m x 3.80 m
    • Control unit: E700HS built-in
    • Use frequency: 100%
    • Encoder: electronic
    • Noise level: 45 dbA
    • Operating ambient temperature: -20 °C ÷ +55 °C
    • Protection rating: For indoor use only (IP20)
    • Weight: 6.3 kg
    • Dimensions: 360x200x145 mm
