Faac D600 24V Starter Kit

367,41 EUR including 23.00% VAT
Product code: #26717
Manufacturer: Faac
  • Pulling force: 600N
  • Max. gate width: 5m
  • Built-in E600 control unit
  • Adjustable speed limiter with electronic deceleration
  • No rail included
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Double rail with 4200mm strip Faac XBAT 24 emergency battery Faac 424591001-10 External unlocking mechanism Faac 390768 Profiled arm for sectional doors Faac 390765 Central support of the running rail Faac 390488 External unlocking mechanism Faac Double rail with 3600mm strip Faac Double rail with 3000mm strip Faac Single rail with 4200mm strip Faac Single rail with 3600mm strip

Faac D600 Starter Kit

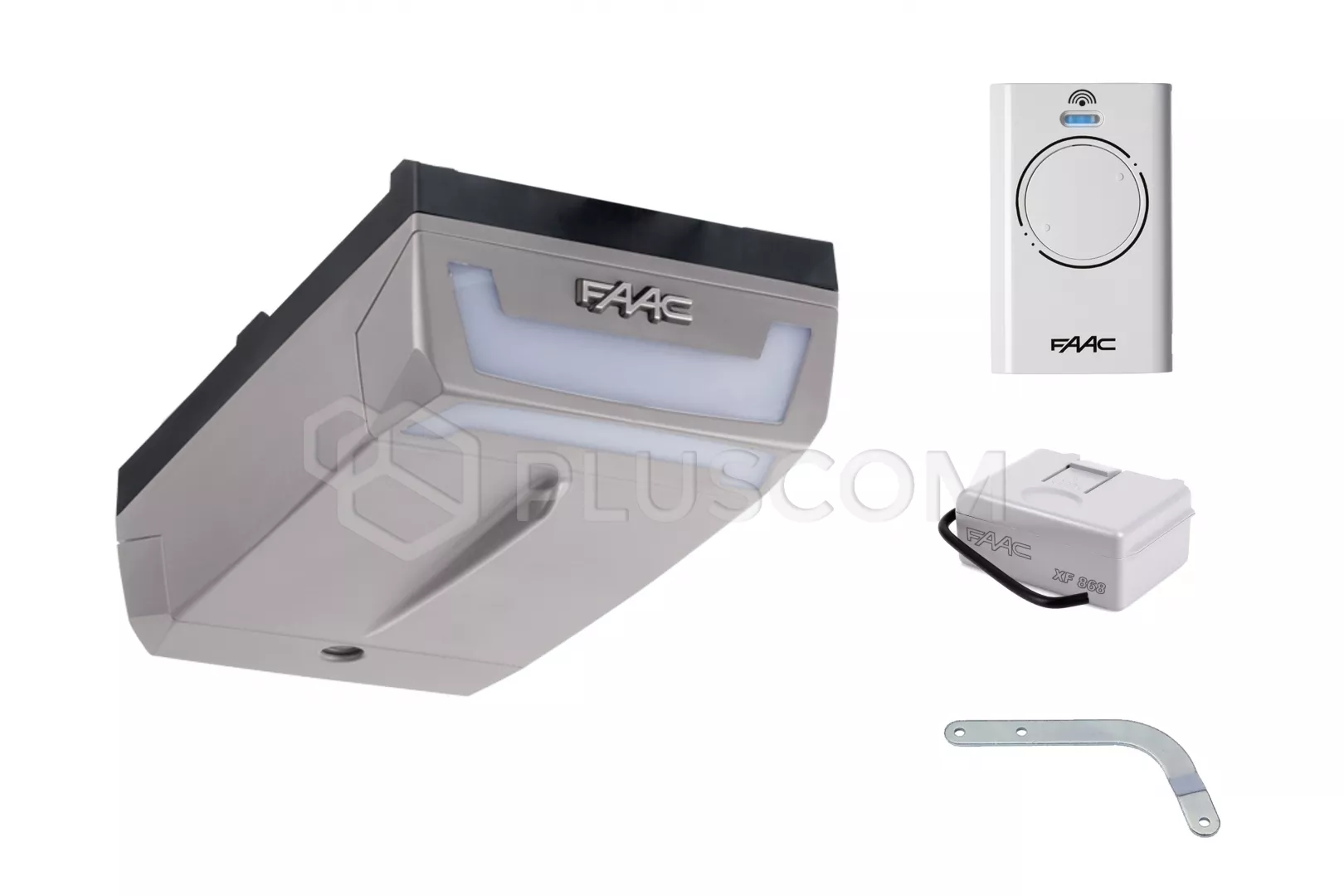

SET COMPOSITION:
  • 24V D600 electromechanical drive
  • XT2 868SLH white remote control
  • XF 868 radio module
  • arm for sectional doors
Faac D600 24V Starter Kit

Faac D600 24V Starter Kit

The D600 electromechanical drive with a 24V motor is dedicated to gates garage and sectional. It has a built-in E600 control unit, encoder, internal unlocking mechanism and lighting lamp.
The drive is self-locking, so the gate locks mechanically after stopping engine. So a lock is not necessary. Two release cables are available, one from the inside and one from the outside (optional), which allows you to unlock gate in the event of breakdown or power failure. The drive is equipped with an electronic sensor that detects the presence of an obstacle blocking the gate's movement.

Drive features:
  • max. dimensions of the swing gate: 3.00 m x 3.80 m
  • max. sectional gate dimensions: 5.00 m x 3.80 m
  • speed 6.6 m/min
  • usage frequency 100%
  • 24V brush motor
  • ideal for home use
  • self-locking anti-burglary mechanism: no additional components required block
  • double stabilized unlocking (FAAC PATENT)
  • quick, simple installation thanks to pre-assembled rail and tool-free drive installation via connector
  • adjustable speed limiter with electronic deceleration
  • chain/belt transmission
  • possibility to use a battery (XBAT 24) in case of power outage power
D600 can only be equipped with an XL 24 L warning light.
Set without rail, which must be ordered additionally.

SPECIFICATION
  • Supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: brushed 24 V DC
  • Maximum power consumption: 220 W
  • Maximum thrust force: 600 N
  • Min lintel height: 35 mm
  • Interior lighting: 230 V - 40 W
  • Light time: 120 sec
  • Max. trolley speed: 6.6 m/min
  • Speed of the trolley when decelerating: 1.3 m/min
  • Max. door dimensions:
    • tilting gates: 3.00 m x 3.80 m
    • sectional gates: 5.00 m x 3.80 m
  • Control unit: E600 built-in
  • Usage frequency: 100%
  • Encoder: electronic
  • Loudness: 45 dbA
  • Ambient temperature during operation: -20 °C ÷ +55 °C
  • Protection rating: for indoor use only (IP20)
  • Weight: 6.2 kg
  • Dimensions: 360x200x145 mm
