Faac 11060001 D600 Garage door operator 24V

313,55 EUR including 23.00% VAT
Product code: #26834
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Encoder: Electronic
  • Max. carriage speed: 6.6 m/min
  • Control unit: E600 built-in
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac XBAT 24 emergency battery Faac 424591001-10 External unlocking mechanism Faac 2024015 Control unit 1-e600 Faac 390768 Profiled arm for sectional doors Faac 390765 Central support of the running rail Faac 390488 External unlocking mechanism Faac Double rail with 3600mm strip Faac Double rail with 3000mm strip Faac Single rail with 4200mm strip Faac Single rail with 3600mm strip

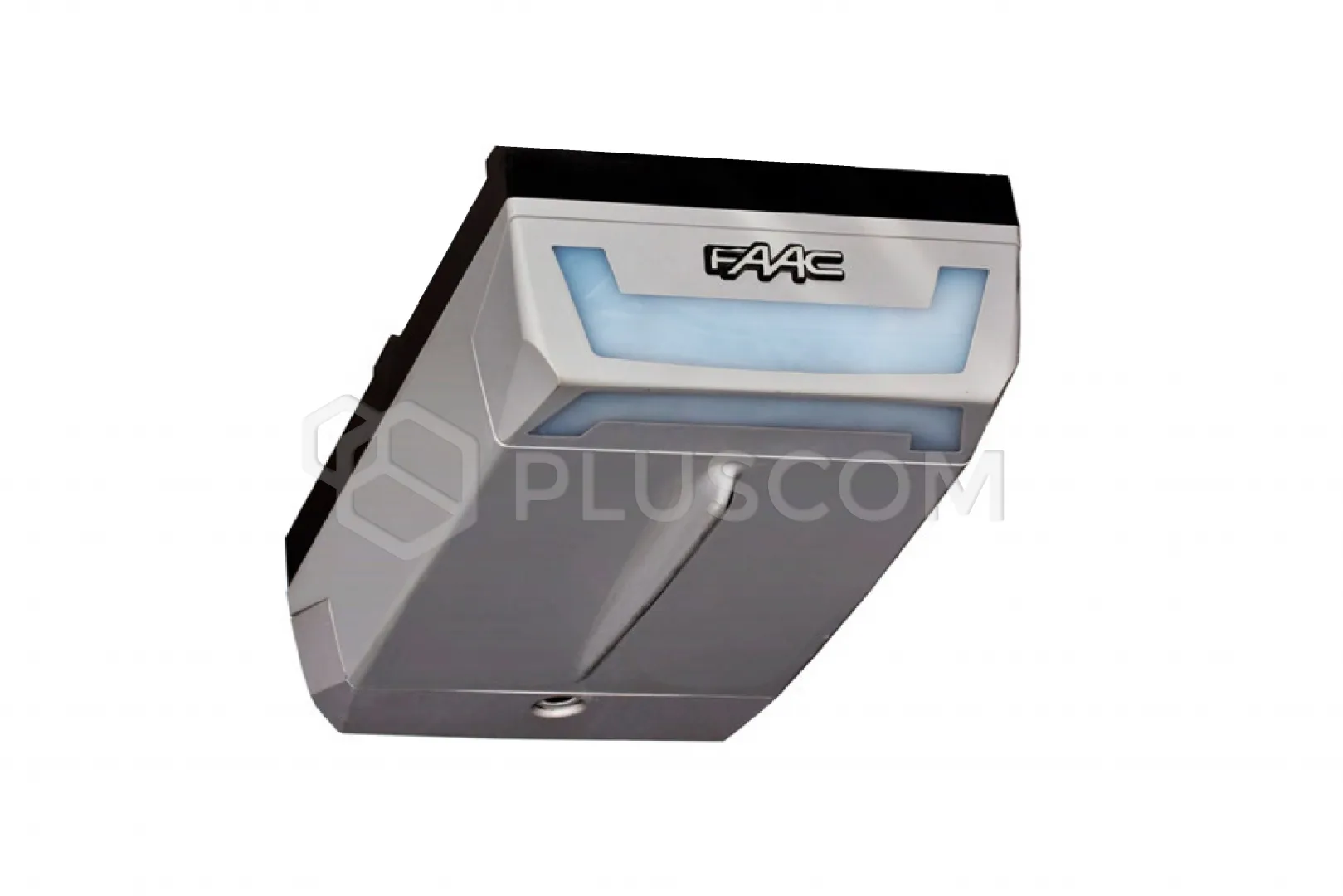

Faac 11060001 D600 Garage door operator 24V


24V electromechanical drive for residential tilting and sectional garage doors.

FEATURES:

  • Self-locking anti-theft mechanism: no additional locks required
  • Double stabilized release (patented)
  • Quick, easy installation thanks to the pre-assembled rail and tool-free drive installation using the connector
  • Chain/belt transmission
  • Adjustable speed limiter with electronic slow-down
Included: electromechanical drive with control unit and temporary garage interior lighting, mounting accessories and internal release mechanism.

Rail not included.

Technical data:

  • Power supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Brushed 24 V DC
  • Maximum power consumption - 220 W
  • Maximum traction force - 600 N
  • Min. lintel height - 35 mm
  • Interior lighting - 230 V - 40 W (max)
  • Lighting time - 120 sec.
  • Max. carriage speed - 6.6 m/min
  • Carriage speed when slowed down - 1.3 m/min
  • Encoder - Electronic
  • Noise level - 45 dbA
  • Ambient temperature during operation -20 °C ÷ +55 °C
  • Protection class - For indoor use only (IP20)
  • Weight of the device - 6.2 kg
  • Dimensions (LxWxH) - 360x200x145 mm
  • Max. door size (WxH) - See table RAILS
  • Control unit - E600 built-in
  • Use frequency - 100%
