Faac CYCLO 24V Starter Kit - C720

Faac CYCLO 24V - C720 starter kit for sliding gates up to 400kg

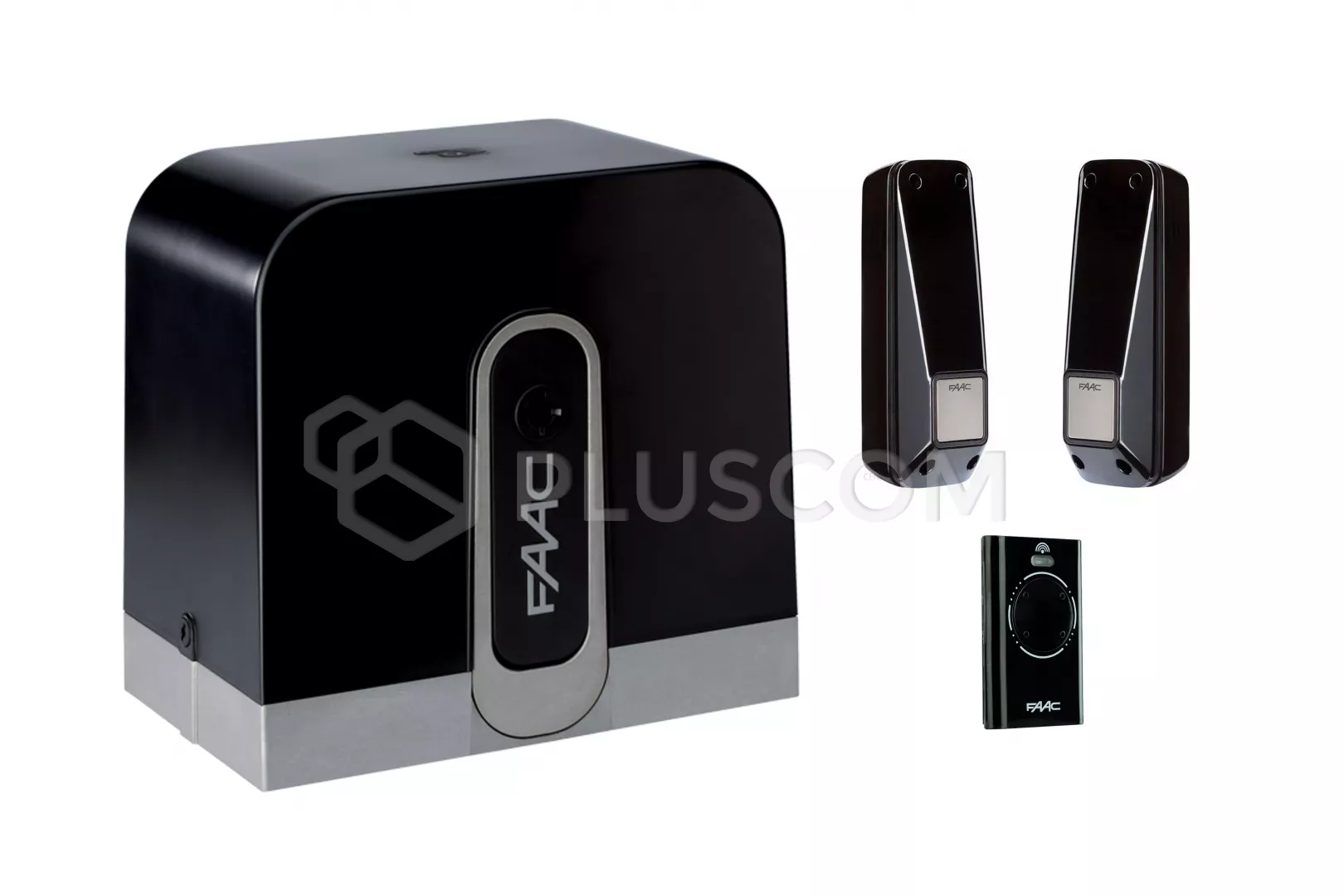

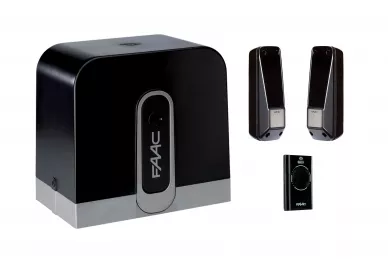

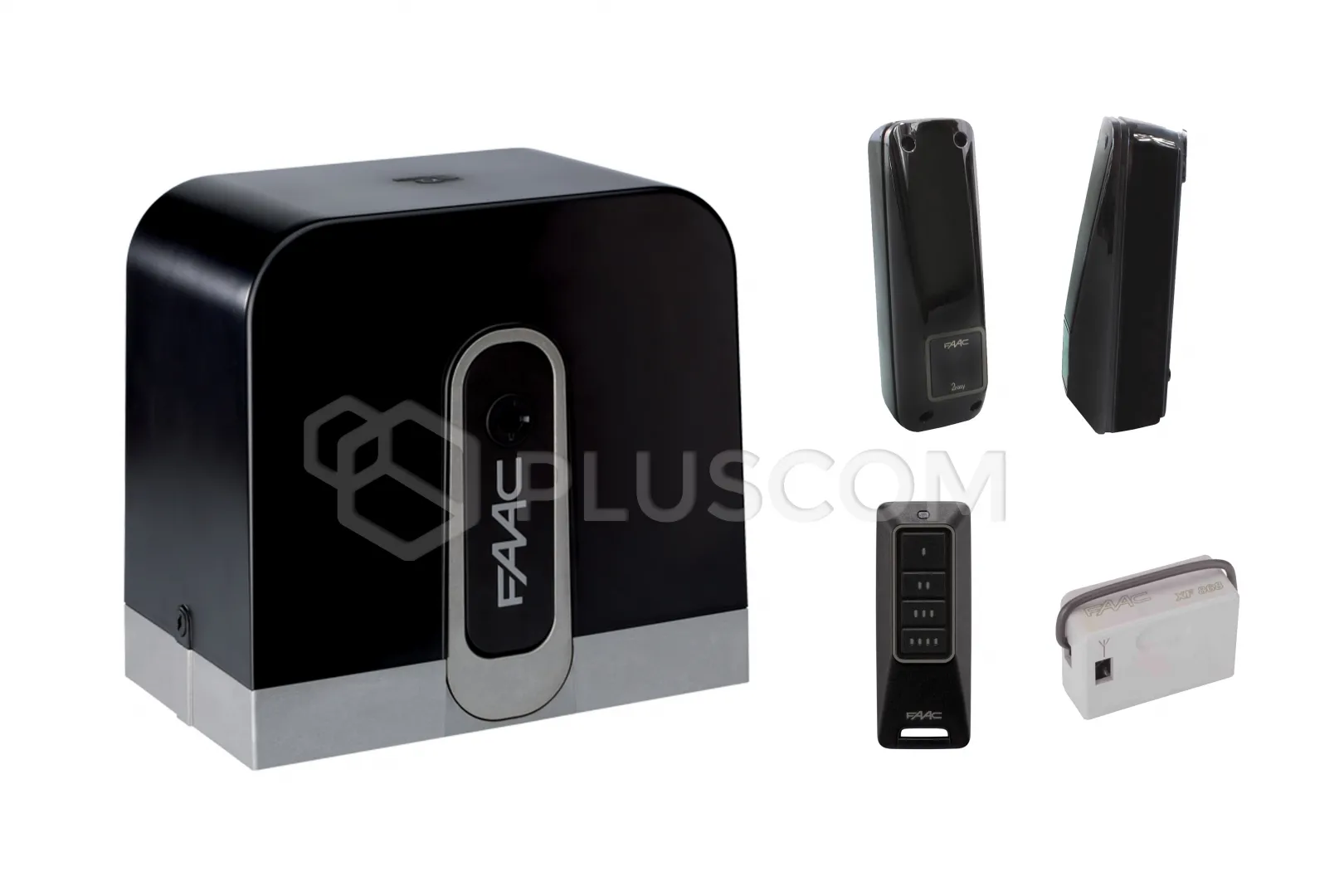

SET CONTAINS: C720 electromechanical drive with built-in E720 control unit XF 868 radio module 1 x remote control XT4 868 SLH LR black pair of XP 20B D photocells mounting base

Faac CYCLO 24V Starter Kit - C720

CYCLO 24 V - C720 is an electromechanical drive designed for sliding gates. Practical and functional engine lock, acting directly on the engine, guarantees that the gate remains closed when the actuator is not working, i.e therefore, there is no need to install an electric lock. Practical handheld the release mechanism allows the gate to move in the event of a power failure, if a battery backup system or actuator is not installed doesn't work.

The actuator is equipped with a built-in magnetic limit switch directly into the control module. The gate is stopped while closing or opening when the magnet, attached to the top of the rack, activates sensor.

The most important advantages of the drive and set include:

• Cycloidal gear reducing vibration and noise. FAAC PATENT
• exceptional mechanical efficiency >80%
• control panel with drive force regulation and a virtual encoder that serves as a anti-crushing protection (reversing the leaf movement after detecting an obstacle)
• magnetic limit switch
• Master-Slave function allowing the connection of two drives in the application of opposite rotating gates

TECHNICAL DATA:

• Supply voltage: 230 V AC 50/60 Hz
• Maximum power consumption: 170 W
• Maximum torque: 18 Nm
• Maximum thrust force: 320 N
• Reduction ratio: 1:49
• Maximum gate leaf width: 15 m
• Gate leaf travel speed: 18 m/min
• Limit switch: magnetic
• Gear: Z28 M4
• Encoder: virtual
• Control unit: 720 (built-in)
• Force regulation: via the control panel (50 levels)
• Maximum gate leaf weight: 400 kg
• Usage frequency: 100%
• Ambient temperature during operation: -20°C ÷ +55°C
• Protection rating: IP44
• Weight: 8 kg
• Dimensions: 304x180x282 mm
