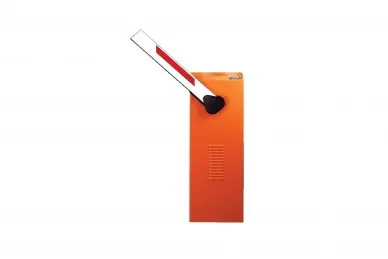

Faac Barrier 620 STD for 5m arm, right

Product code: #43815
Manufacturer: Faac
  • Permissible arm length: 5m
  • Minimum opening time: 4.5s
  • Electric drive: single-phase, bidirectional
  • Frequency of use: continuous operation
  • Housing RAL 2004
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 428090 Standard rectangular arm 3815mm Faac 428089 Standard rectangular arm 2815mm Faac 428088 Standard rectangular arm 2315mm Faac 428045 Oval arm Faac 428163 Oval swing arm mounting bracket Faac 428043 One-piece oval arm Faac 390828 Oval arm tilt sensor Faac 428042 One-piece oval arm Faac 490058 Mounting plate for barrier 620 STD Faac 428002 Oval arms

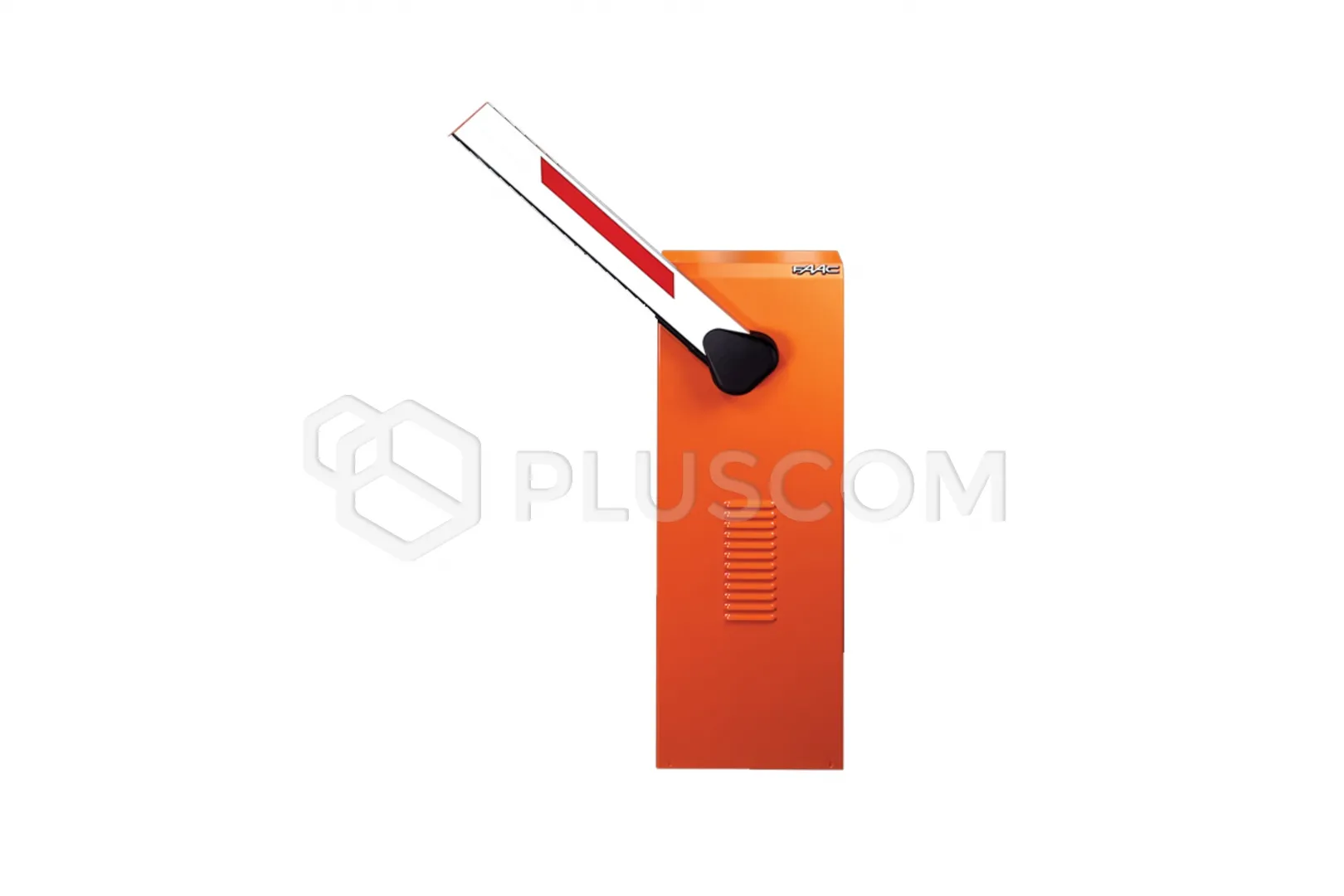

Faac 620 STD Barrier for 5m arm, right


The barrier's central unit features an opening and closing lock and a 230V power supply. It has a built-in control unit and a built-in two-channel loop detector.
The 620 STD barrier is an ideal solution for high-traffic areas. It features a patented electronic system for releasing and reporting the barrier's status to traffic management devices.

FEATURES:
  • Hydraulic drive with opening and closing lock
  • Barrier statuses can be transmitted to traffic control devices
  • Automatic, semi-automatic, parking, residential, and home applications
  • External release with a triangular key
  • BUS technology
  • New oval arm with a lightweight support

TECHNICAL DATA:

  • Power supply voltage: 230 V (+6% - 10%) 50 (60) Hz
  • Electric drive: single-phase, bidirectional
  • Power consumption: 220 W
  • Current consumption: 1 A
  • Motor speed: 1400 - 2800 rpm
  • Pump capacity: 1.5-2 l/min
  • Thermal protection on the winding: 120°C
  • Effective torque: 0 to 100 Nm / 0 to 80 Nm
  • Arm braking: electronic, adjustable
  • Capacitor: 8uF 400V
  • Open time: 4.5s
  • Use frequency: continuous operation
  • Oil type: FAAC HP OIL
  • Operating temperature range: -20°C to +55°C
  • Barrier body machining: 100 microns Resin-zinc, anti-corrosion protection
  • Paint: Polyester RAL 2004
  • Protection Rating: IP 44
  • Cooling: Forced air
  • Arm type: rectangular - rectangular articulated - oval - oval pivoting
  • Dimensions: 350 x 170 x 1080 mm
  • Weight: 73 kg
Download
User manual 1.38 MB
