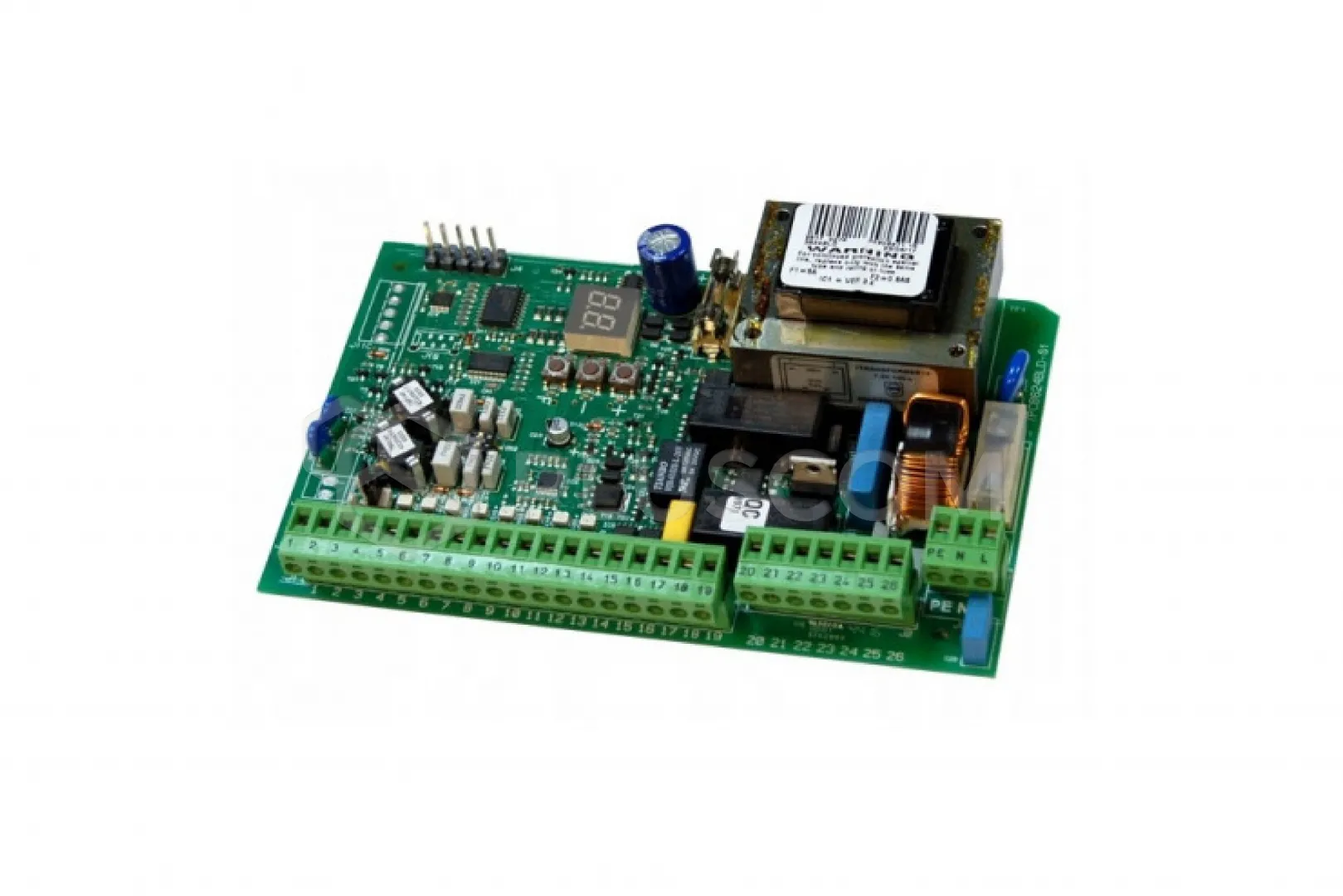

Faac 2022715 624 BLD Control unit for barriers (built-in)

Faac 2022715 624 BLD Control unit for barriers (built-in)

Control unit 624BLD dedicated to 230V hydraulic barriers FAAC: 620 STD, 620 RAPID, 620 SR and 640 with arms up to 7 m long.

2easy - marking of electronic control units that allow simplified, parallel connection of many accessories to the 2easy bus using a two-wire accessory cable in accordance with FAAC's own communication protocol.

Technical data:

• Power supply voltage: 230 V AC (+6%-10%) 50 (60) Hz
• Max. power consumption: 7 W
• Max. motor power: 300 W
• Max. output load: 500 mA
• Accessories power supply: 24 V DC
• Programming: 3 buttons (+, -, F) and display
• Operating logic: Semi-automatic (E), automatic (A), automatic 1 (A1), parking (P), automatic parking (PA), housing estate (Cn), automatic housing estate (CA), underground barriers (rb), dead-man (C), remote (r), custom (Cu)
• Programmable functions: Operating logic, pause time, thrust, loop 1 and loop 2, max. thrust at start of movement, warning light pre-flashing, slow closing, slow movement, operating time, lighting output, fail-safe, BUS 2easy, service request
• Operating time: Programmable (0 to 4 min)
• Pause time: Programmable (0 to 4 min)
• Thrust: Adjustable in 50 levels
• Inputs: Loop 1, loop 2, open, close, closing protection, emergency stop, emergency open, mains power supply
• Outputs: Warning light, fan, motor, accessory power supply, 4 programmable outputs (18 functions to choose from)
• Quick connectors: 5-pin for radio receivers RP/DECODERS
• Built-in loop detector, 2 independent channels: Real-time auto-calibration, sensitivity independent of loop geometry, loop frequency adjustment, “loop running” message on the LED display, loop status addressable to programmable outputs, adjustment above 2 levels
• Fuses: F1=F 5 A, F2=T 0.8 A
• Ambient temperature during operation: -20°C ÷ +55°C
