Faac B680H Kit with oval arm S 5m

Faac B680H Kit with S 5m Oval Arm

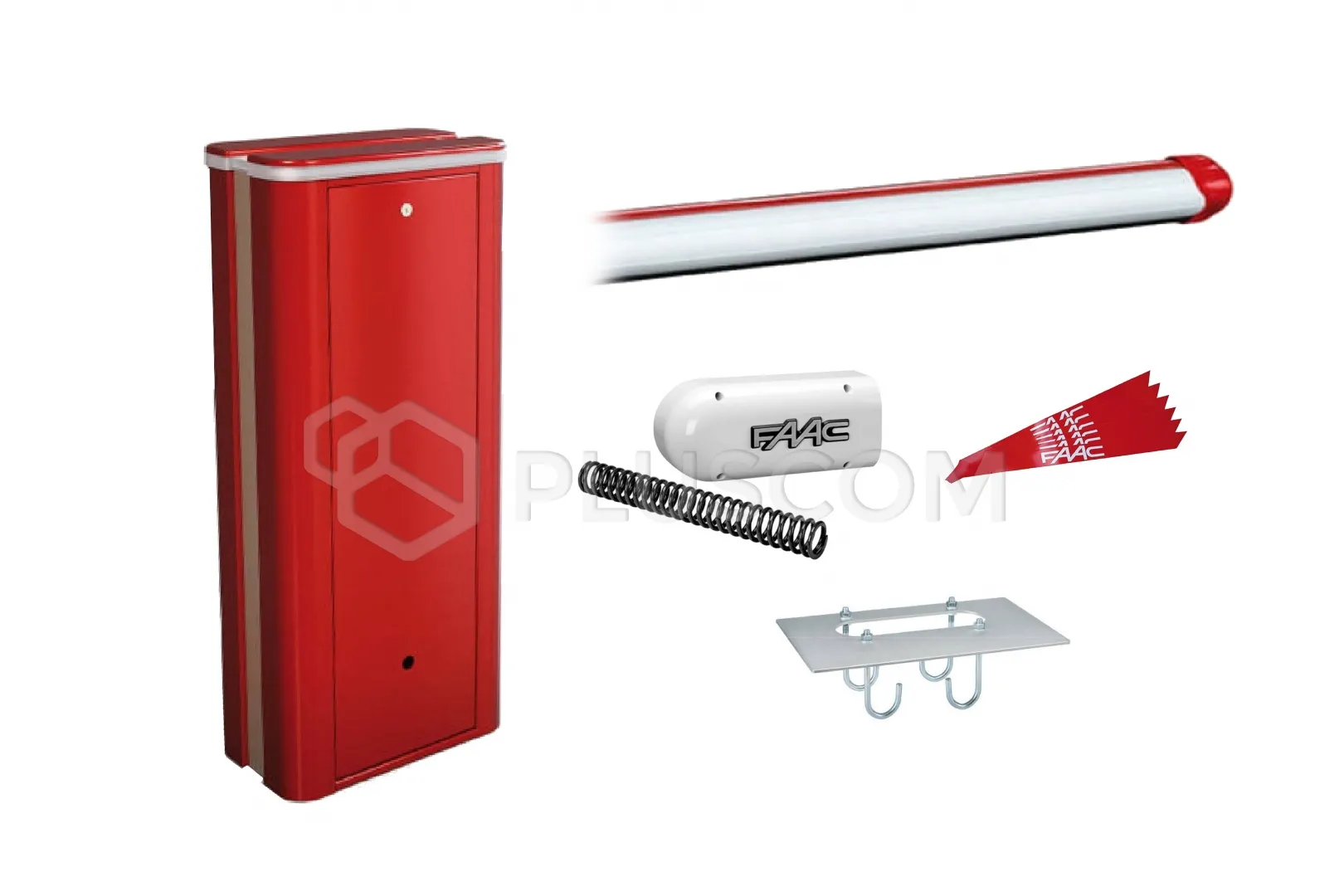

The set includes:

• Faac 104680 B680H Hybrid automatic barrier 24V
• Faac 416016 Red casing RAL 3020 for B680H barrier
• Faac 428436 Spring with arm mounting bracket "S"
• Faac 428044 One-piece oval arm "S" 5.3 m for barrier
• Faac 490139 Mounting plate for B680H barrier
• Barrier arm stickers (6 pcs.)

The FAAC B680H is a revolutionary automatic barrier combining a brushless motor with hydraulic technology, offering exceptional performance even in continuous use. Completely safe thanks to the reverse function on encountering an obstacle.

The infinitely durable springs are designed to exceed 2,000,000 opening and closing cycles, making the FAAC B680H the ideal solution for regulating heavy vehicle traffic in any context: residential, apartment, and industrial.

The barrier is unmatched.
The encoder integrated into the control unit allows full control and enables the reverse function on encountering an obstacle: thus ensuring pedestrian protection and meeting safety standards.
An energy-efficient switching power supply with a wide input voltage range – from 100 to 240V – protects the barrier against large fluctuations in the power grid.
A hydraulic pump with a brushless motor allows the long and short arms to move at maximum speed during continuous operation (100% utilization).
Installation of an XBAT 24 module (high-performance Nickel-Metal Hydride batteries) with a charger ensures the barrier's operation during power outages.

The B680H housing has an internal support frame and an external, replaceable housing. This design provides the system with excellent stability and allows for easy housing replacement.

The kit includes a one-piece oval "S" arm, 35a mounting base.

TECHNICAL DATA

• Power supply voltage: 100 ÷ 240 V AC 50/60 Hz
• Motor type: Brushless 36 V DC
• Motor speed: 1,000 ÷ 6,000 rpm
• Max. Power consumption: 240 W
• Pump capacity: 3.2 l/min
• Housing material: Steel
• Protection type: 100 micron anti-corrosion protection + polyester paint
• Encoder: Absolute encoder
• Decel. type: Electronic via encoder
• Arm type: Oval
• Arm length: 5300 mm
• Use frequency: 100%
• Control unit: E680S (built-in)
• Oil type: FAAC HP
• Barrier housing: red RAL 3020
• Ambient operating temperature: -20°C ÷ +55°C
• Protection rating: IP56
• Weight: 85 kg (65 kg base + 20 kg housing)
• Dimensions: 469 x 279 x 1100 mm
