Faac 104680 B680H Hybrid automatic barrier 24V

2624,59 EUR including 19.00% VAT
Product code: #26919
Manufacturer: Faac
  • Power supply: 230V AC
  • Arm type: Oval
  • Control unit: E680S (built-in)
  • Encoder: Absolute encoder
  • For arms: from 2 to 8 m
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,83 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 63000128 E680 Control unit dedicated to barriers built into the automation Faac 428176 Oval swing arm for barriers 3 m long Faac 390080 xBAT Battery Cable Kit Faac 737621 Foundation base for fixed support Faac 428615 Faac 428175 Oval swing arm for barriers 2.5 m long Faac 490139 Mounting plate for B680H barrier Faac 428805 Adjustable barrier arm support Faac 428436 Spring with arm mounting bracket Faac 401051 ANTI-PANIC valve for barrier

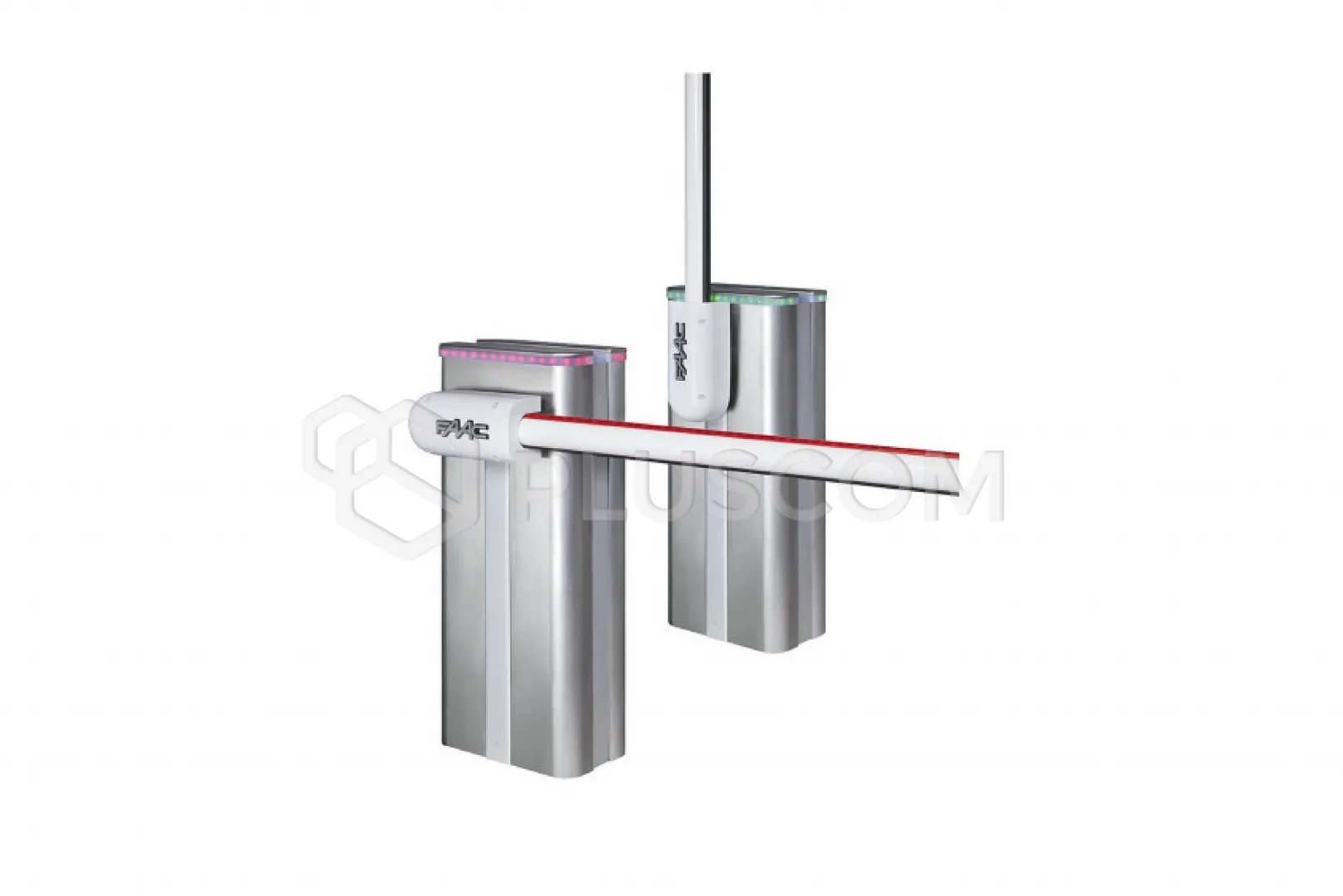

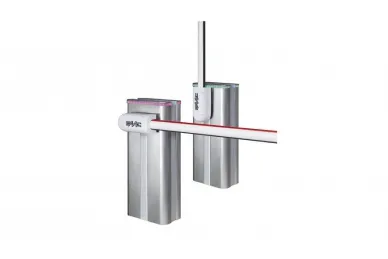

Faac 104680 B680H Automatic hybrid barrier 24V


B680H - Automatic hybrid barrier 24V from 2 to 8 m long.

FEATURES:

  • Hybrid technology: hydraulics + brushless motor
  • Barrier with "eternal" spring: over 2 million continuous operating cycles without special maintenance
  • Exclusive design: only one barrier model and two springs for split arms from 2 to 8 m long, right or left version and different speeds

Technical data

  • Power supply voltage - 100 ÷ 240 V AC 50/60 Hz
  • Type of motor - Brushless 36V DC
  • Engine speed - 1,000 ÷ 6,000 rpm
  • Max. power consumption - 240 W
  • Pump capacity - 3.2 l/min
  • Housing material - Steel
  • Protection type - 100 micron anti-corrosion protection + polyester paint or stainless steel (inox)
  • Encoder - Absolute encoder
  • Slowdown type - Electronic by encoder
  • Arm type - Oval
  • Ambient temperature during operation - -20°C ÷ +55°C
  • Protection class - IP56 (TWV certification)
  • Weight of the device - 85 kg (65 kg base + 20 kg housing)
  • Oil type - FAAC HP
  • Dimensions (LxDxH) - 469x279x1100 mm
  • Max. arm length - 2 ÷ 8 m
  • Opening time - 1.5 sec. (90° - 2m) - 6 sec. (90° - 8m)
  • Use frequency - 100%
  • Control unit - E680S (built-in)
