Faac B680H Kit with oval arm S 3m

4276,71 EUR including 23.00% VAT
Product code: #43792
Manufacturer: Faac
  • KIT COMPOSITION:
  • 104680 - B680H Barrier Unit
  • 416016 - Red housing RAL 3020
  • 428436 - Spring with S arm mounting bracket
  • 428042 - Oval arm S 3300mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 410033 Integrated lamp B680H Faac 401069 ANTI-VANDAL valve for B680H barrier Faac 390828 Oval arm tilt sensor Faac 428176 Oval swing arm for barriers 3 m long Faac 428175 Oval swing arm for barriers 2.5 m long Faac 401051 ANTI-PANIC valve for barrier Faac 428045 Oval arm Faac 428446 3m Apron for barrier arm Faac 713002 Release key 402 Faac XBAT 24 emergency battery

Faac B680H Kit with S 3m Oval Arm


The set includes: The FAAC B680H is a revolutionary automatic barrier combining a brushless motor with hydraulic technology, offering exceptional performance even in continuous use. Completely safe thanks to the reverse function on encountering an obstacle.

The infinitely durable springs are designed to exceed 2,000,000 opening and closing cycles, making the FAAC B680H the ideal solution for regulating heavy vehicle traffic in any context: residential, apartment, and industrial.

The barrier is unmatched.
The encoder integrated into the control unit allows full control and enables the reverse function on encountering an obstacle: thus ensuring pedestrian protection and meeting safety standards.
An energy-efficient switching power supply with a wide input voltage range – from 100 to 240V – protects the barrier against large fluctuations in the power grid.
A hydraulic pump with a brushless motor allows the long and short arms to move at maximum speed during continuous operation (100% utilization).
Installation of an XBAT 24 module (high-performance Nickel-Metal Hydride batteries) with a charger ensures the barrier's operation during power outages.

The B680H housing has an internal support frame and an external, replaceable housing. This design provides the system with excellent stability and allows for easy housing replacement.

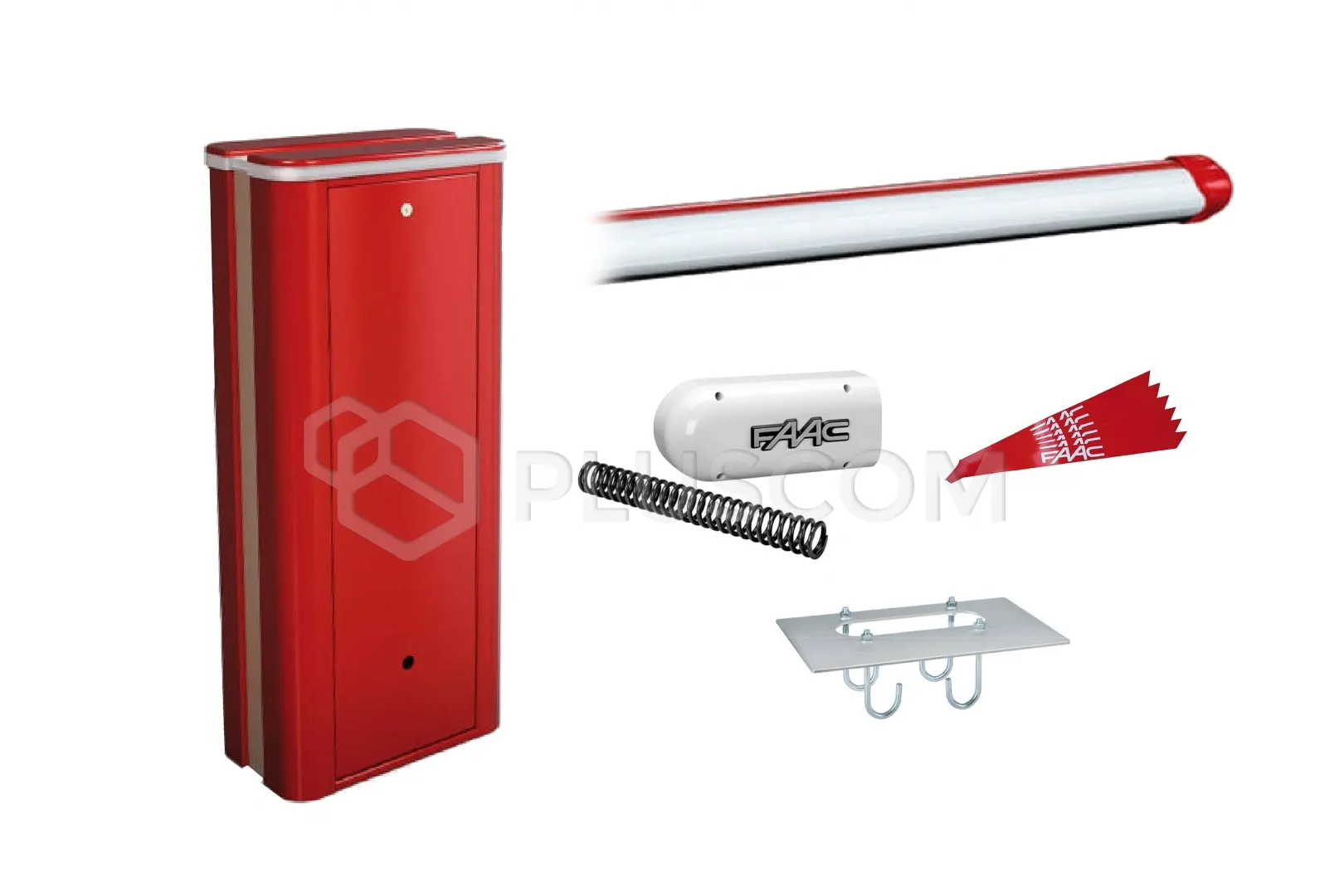

The kit includes a one-piece oval "S" arm, 3300mm long, with stickers, a spring with a bracket for mounting the S arm, and a mounting base.

TECHNICAL DATA

  • Power supply voltage: 100 ÷ 240 V AC 50/60 Hz
  • Motor type: Brushless 36 V DC
  • Motor speed: 1,000 ÷ 6,000 rpm
  • Max. Power consumption: 240 W
  • Pump capacity: 3.2 l/min
  • Housing material: Steel
  • Protection type: 100 micron anti-corrosion protection + polyester paint
  • Encoder: Absolute encoder
  • Decel. type: Electronic via encoder
  • Arm type: Oval
  • Arm length: 3300 mm
  • Use frequency: 100%
  • Control unit: E680S (built-in)
  • Oil type: FAAC HP
  • Barrier housing: red RAL 3020
  • Ambient operating temperature: -20°C ÷ +55°C
  • Protection rating: IP56
  • Weight: 85 kg (65 kg base + 20 kg housing)
  • Dimensions: 469 x 279 x 1100 mm
