Faac B680H Kit with elliptical arm L 7m
The set includes:
Faac B680H Kit with elliptical arm L 7m
The FAAC B680H is a revolutionary automatic barrier combining
a brushless motor with hydraulic technology, offering exceptional performance
even in continuous use. Completely safe thanks to the reverse function on
encountering an obstacle.
The infinitely durable springs are designed to exceed 2,000,000 opening and
closing cycles, making the FAAC B680H the ideal solution for regulating heavy
vehicle traffic in any context: residential, apartment, and industrial.
The barrier is unmatched.
The encoder integrated into the control unit allows full control and enables
the reverse function on encountering an obstacle: thus ensuring pedestrian
protection and meeting safety standards.
An energy-efficient switching power supply with a wide input voltage range –
from 100 to 240V – protects the barrier against large fluctuations in the power
grid.
A hydraulic pump with a brushless motor allows the long and short arms to move
at maximum speed during continuous operation (100% utilization).
Installation of an XBAT 24 module (high-performance Nickel-Metal Hydride
batteries) with a charger ensures the barrier's operation during power
outages.
The B680H housing has an internal support frame and an external, replaceable
housing. This design provides the system with excellent stability and allows
for easy housing replacement.

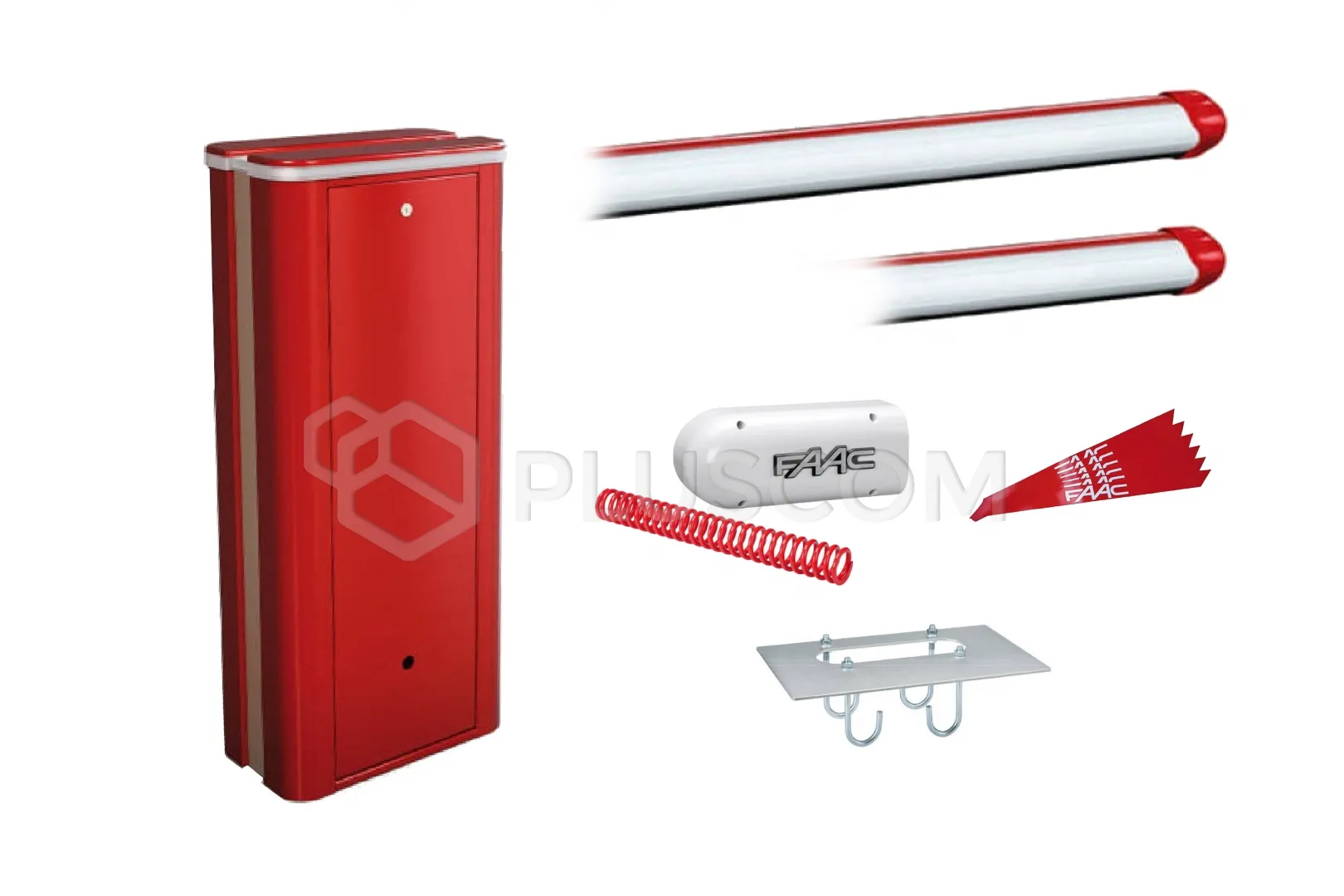

The set includes a 4000mm long elliptical "L" arm, a
3300mm "L" arm extension, an "L" arm connector with
stickers, a spring with a bracket for attaching the L arm, and a mounting base.
TECHNICAL DATA
- Power supply voltage: 100 ÷ 240 V AC 50/60 Hz
- Motor type: Brushless 36 V DC
- Motor speed: 1,000 ÷ 6,000 rpm
- Max. Power consumption: 240 W
- Pump capacity: 3.2 l/min
- Housing material: Steel
- Protection type: 100 micron anti-corrosion protection + polyester
paint
- Encoder: Absolute encoder
- Decel. type: Electronic via encoder
- Arm type: elliptical
- Arm length: 7300 mm
- Use frequency: 100%
- Control unit: E680S (built-in)
- Oil type: FAAC HP
- Barrier housing: red RAL 3020
- Ambient operating temperature: -20°C ÷ +55°C
- Protection rating: IP56
- Weight: 85 kg (65 kg base + 20 kg housing)
- Dimensions: 469 x 279 x 1100 mm
