Faac B614 Kit with oval arm S 4.3m

2670,33 EUR including 23.00% VAT
Product code: #43788
Manufacturer: Faac

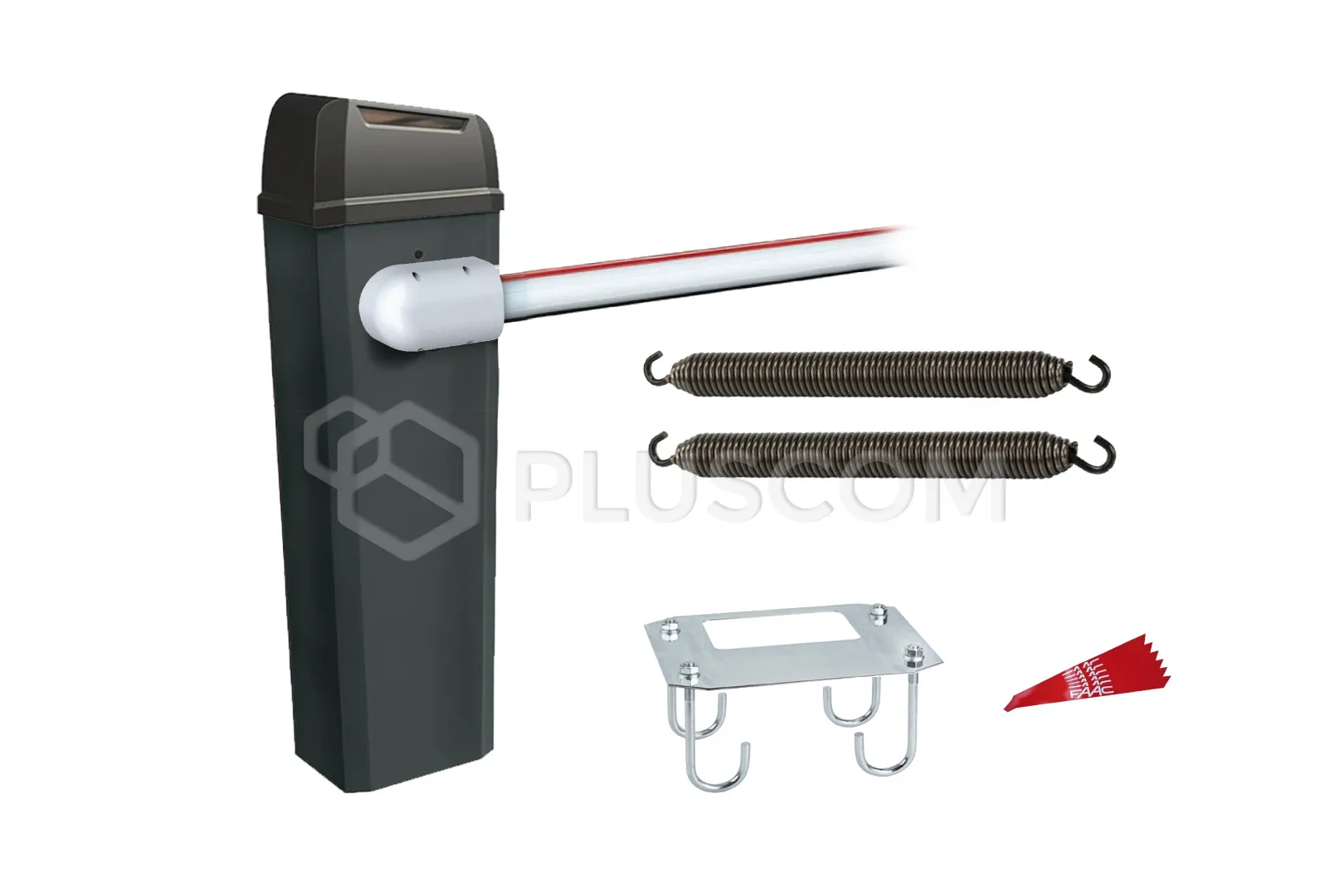

  • KIT COMPOSITION:
  • 1046142 - Barrier unit B614
  • 721209 - Spring for barrier B614 2pcs
  • 428445 - S arm mounting bracket
  • 428043 - 4.3 m "S" arm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 490183 Mounting plate for B614 barrier Faac 428043 One-piece oval arm Faac 63001034 E614 B614 barrier control unit Faac 428805 Adjustable barrier arm support Faac 428446 3m Apron for barrier arm Faac 428441 2m apron for barrier arm Faac 713002 Release key 402 Faac 428090 Standard rectangular arm 3815mm Faac 721209 Balancing spring B614

Faac B614 Kit with Oval Arm S 4.3m



The kit includes:
Faac B614 Kit with oval arm S 4.3m

Faac B614 Kit with oval arm S 4.3m

The B614 electromechanical barrier is designed for vehicle access control in residential areas/apartment communities.

Thanks to its 24V motor with an integrated encoder, it provides a high degree of control over the device's operation and meets safety standards for reversing movement upon encountering an obstacle. Additionally, a four-lever system with two reduction stages makes the arm movement even smoother.

Two Faac 721209 springs are dedicated to the B614 barrier with a 4m arm.

The set includes a one-piece oval "S" arm, 4300mm long, with stickers and a bracket for mounting the S arm.

TECHNICAL SPECIFICATIONS:

  • Power supply voltage: 220–240V~ 50/60 Hz
  • Motor power supply: 24V
  • Max. power consumption: 165W
  • Max. Torque: 300 Nm
  • Material: Steel
  • Surface Treatment: Hot-dip galvanized, 20 μm thick + polyester powder coating
  • Encoder: Incremental, integrated with the motor
  • Release Type: Electronic + Mechanical
  • Use Frequency: Continuous Operation
  • Control Unit: E614
  • Operating Temperature: -20°C to +55°C
  • Protection Rating: IP55 (control unit) – IP44
  • Dimensions: 247x357x1163mm
  • Weight: 40 kg
