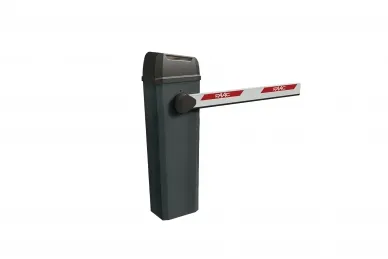

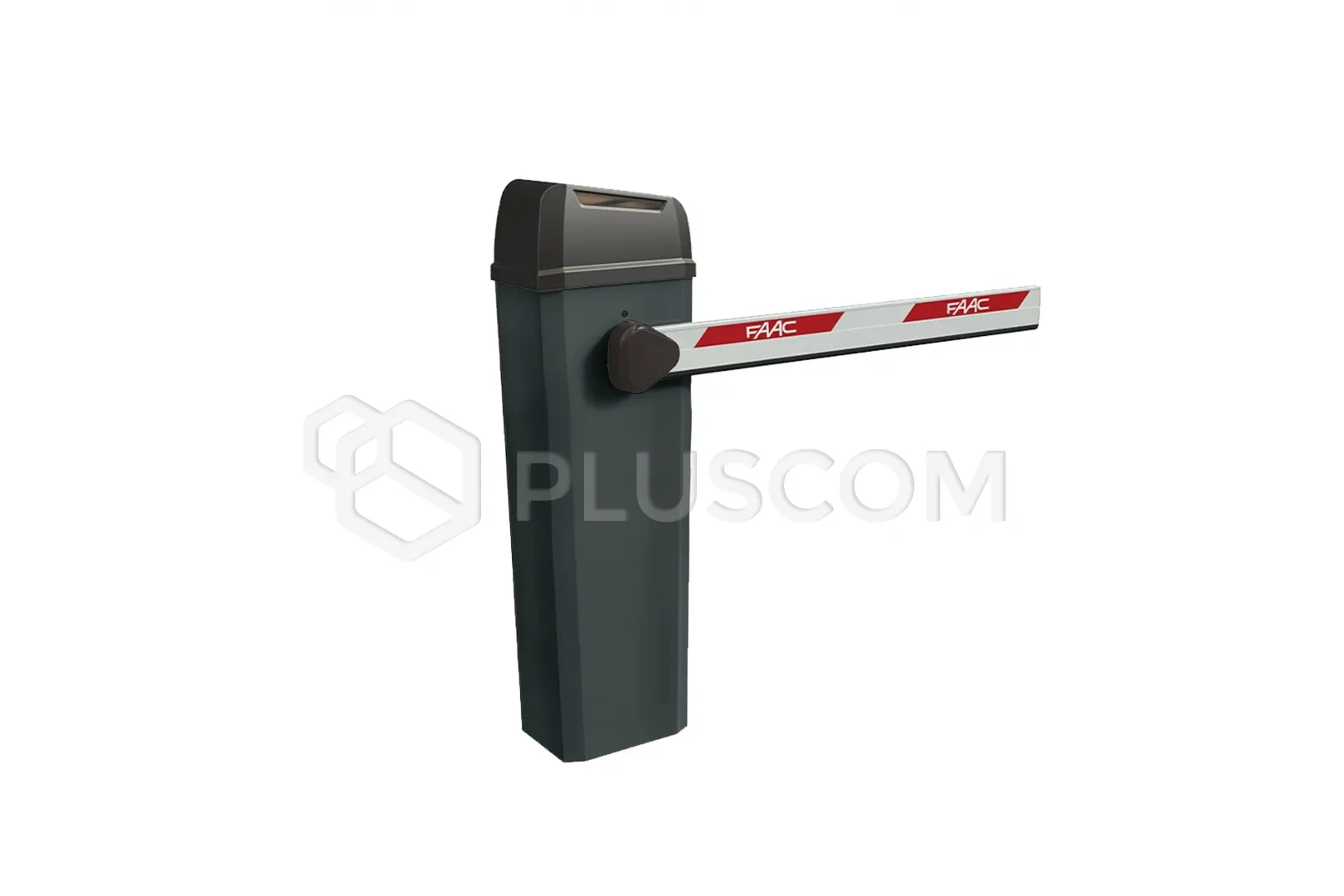

Faac 1046142 Electromechanical barrier B614 24V dark gray

Product code: #43849
Manufacturer: Faac
  • Bar length up to 6m
  • Minimum opening time: 2s
  • 24V engine power supply
  • Built-in E614 control unit
  • Housing RAL 7021
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 490183 Mounting plate for B614 barrier Faac 428045 Oval arm Faac 428043 One-piece oval arm Faac 428042 One-piece oval arm Faac 428002 Oval arms Faac 63001034 E614 B614 barrier control unit Faac 428805 Adjustable barrier arm support Faac 428446 3m Apron for barrier arm Faac 428441 2m apron for barrier arm Faac 713002 Release key 402

Faac 1046142 B614 Automatic Barrier with 24V Motor, Dark Gray


The B614 electromechanical barrier is designed for vehicle access control in residential/condominium areas. It has a compact design offering ample internal space for wiring and any additional accessories. The self-supporting housing is made of steel with a polyester powder coating, with a distinctive "V" shape.

Maximum anti-crushing protection
Thanks to the 24V motor with integrated encoder ensures a high degree of device control and meets safety standards for reversing movement upon encountering an obstacle. Additionally, a four-lever system with two reduction stages makes the boom movement even smoother.

Customized and intuitive electronics system
Electronic components located on the top, protected by a colored plastic cover that improves the visibility of the LEDs. Intuitive programming using buttons and a display. Wide selection of operating logic and configurable parameters. Universal OMNIDEC radio signal decoding system. System protection and BUS 2easy accessories can be easily connected using just two non-polarized wires.

TECHNICAL SPECIFICATIONS:

  • Power supply voltage: 220–240V~ 50/60 Hz
  • Motor power supply: 24V
  • Max. power consumption: 165W
  • Max. Torque: 300 Nm
  • Material: Steel
  • Surface Treatment: Hot-dip galvanized, 20 μm thick + polyester powder coating
  • Encoder: Incremental, integrated with the motor
  • Release Type: Electronic + Mechanical
  • Use Frequency: Continuous Operation
  • Control Unit: E614
  • Operating Temperature: -20°C to +55°C
  • Protection Rating: IP55 (control unit) – IP44
  • Dimensions: 247x357x1163mm
  • Weight: 40 kg
