Faac 615 STD Barrier kit with 3m rectangular arm

2256,13 EUR including 23.00% VAT
Product code: #43805
Manufacturer: Faac

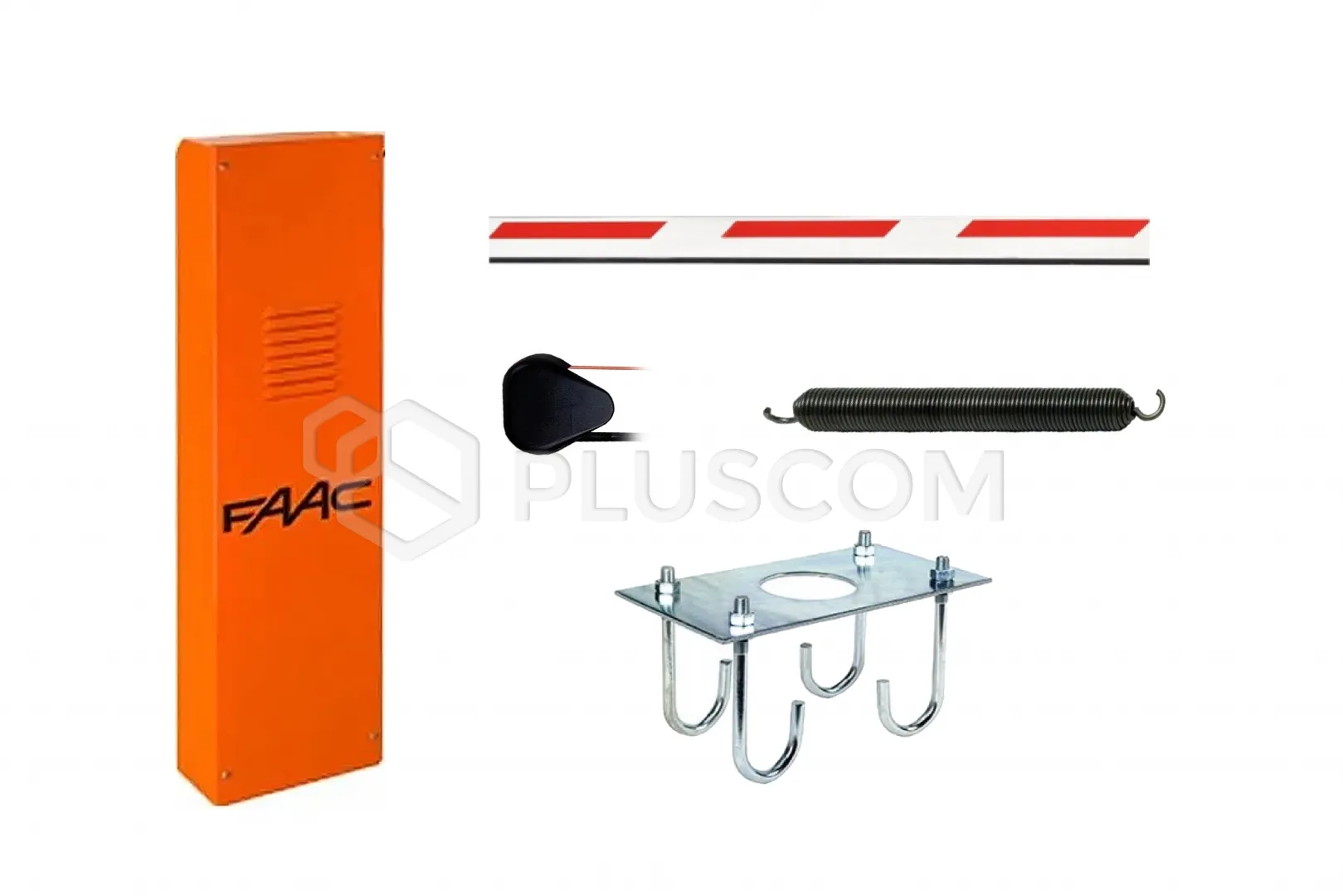

  • KIT COMPOSITION:
  • 104906 - Barrier Unit 615BPR STANDARD
  • 721005 - Oval arm mounting spring S 6.5 mm
  • 428342 - Mounts for rectangular or oval arms
  • 428089 - Standard rectangular arm 2815mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 390993 LED lighting strip 12 m for barrier Faac 737621 Foundation base for fixed support Faac 428805 Adjustable barrier arm support Faac 428446 3m Apron for barrier arm Faac 428441 2m apron for barrier arm Faac 713002 Release key 402 Faac 401066 ANTI-VANDAL valve for barrier Barrier arm stickers (6 pcs.) Faac 428806 Adjustable boom arm support

Faac 615 STD Barrier kit with 3m rectangular arm


The set includes:
Faac 615 STD Barrier kit with 3m rectangular arm

Faac 615 STD Barrier kit with 3m rectangular arm

The 615 BPR automatic barrier assembly consists of an aluminum barrier arm with reflectors and a steel column, cataphoretically treated and painted with polyester paint.
The column houses the hydraulic drive mechanism and electronic control system.
The drive mechanism that rotates the barrier arm consists of a hydraulic power unit and a double-acting cylinder. The system includes an adjustable torque limiting system. The system also includes a device that stops the barrier arm in any position and a manual release system for use in the event of a power outage or barrier failure.

The 615BPR is always supplied in the right-hand version.

FEATURES:

  • Hydraulic drive with opening and closing lock
  • Ideal for medium traffic loads and controlling small and medium-sized private areas
  • Hydraulic anti-theft protection
  • Manual unlocking mechanism with triangular key
  • Equipped with limit switches
  • Allows the use of the “Anti-Vandal” valve
  • Also available with the new oval arm with light support

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Type of motor - Single-phase asynchronous
  • Motor speed - 1,400 rpm
  • Max. power consumption - 220 W
  • Max. torque - 0 ÷ 400 Nm
  • Pump capacity - 1.5 l/min
  • Housing material - Steel
  • Protection type - 100 microns anti-corrosion protection, polyester paint RAL 2004-RAL 9006
  • Encoder - None
  • Slowdown type - Electronic with regulation
  • Arm type - Rectangular - Rectangular with apron - Articulated - Oval with lighting
  • Ambient temperature during operation - -20°C ÷ +55°C
  • Thermal protection - 120°C
  • Protection class - IP44
  • Weight of the device - 34 kg
  • Oil type - FAAC HP
  • Dimensions (LxDxH) - 270x140x1015 mm
  • Max. arm length - 5 m
  • Opening time - 5.7 sec. (90°)
  • Use frequency - 50%
  • Control unit - 615BPR (built-in)
Download
User manual 0.69 MB
