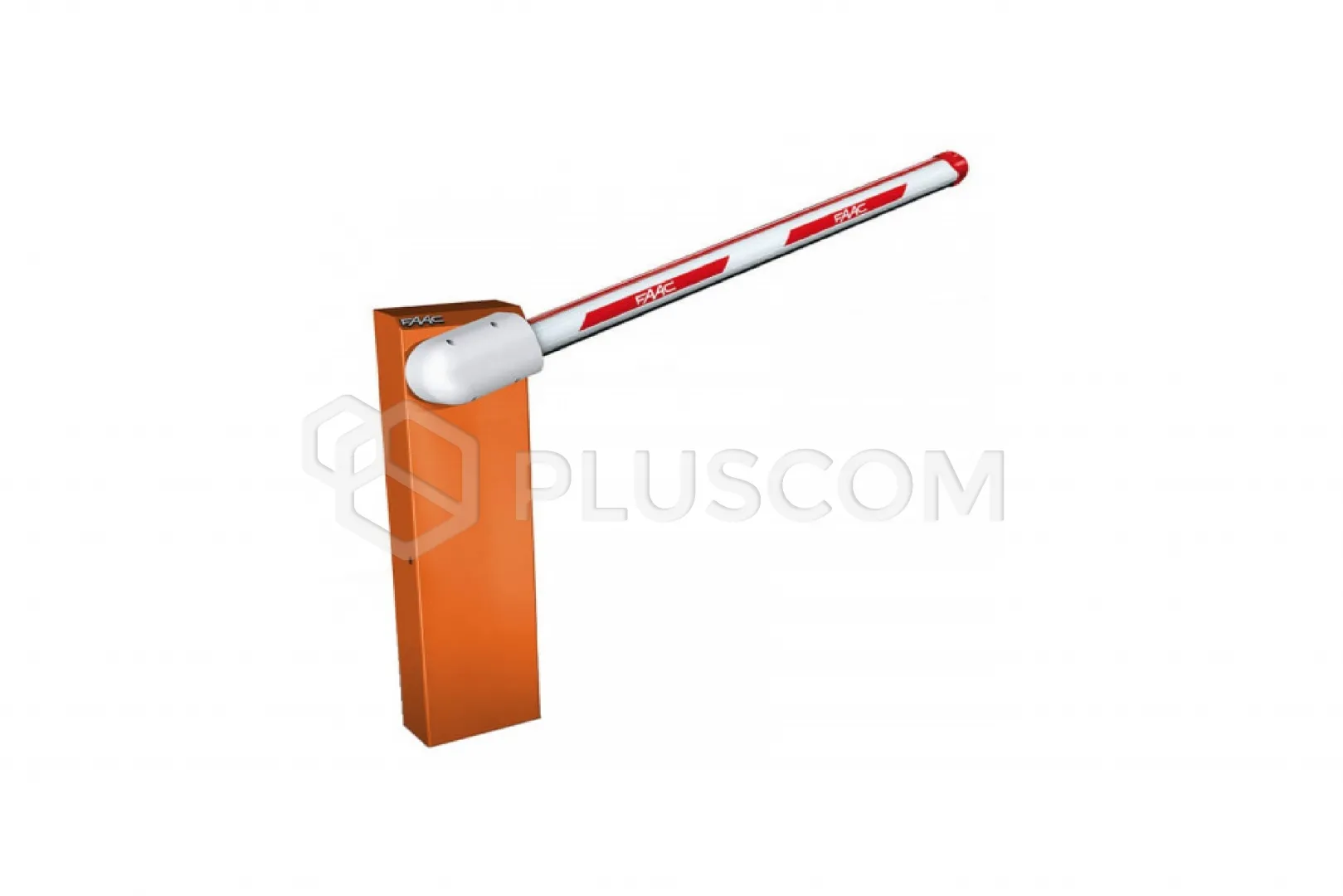

Faac 104906 615BPR STANDARD orange Barrier unit 230V

1835,84 EUR including 23.00% VAT
Product code: #26896
Manufacturer: Faac
  • Power supply: 230V AC
  • Arm type Rectangular - Rectangular with apron - Articulated - Oval with lighting
  • Max. arm length: 5 m
  • Control unit: 615BPR (built-in)
  • RAL 9006
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 428441 2m apron for barrier arm Faac 721018 Spring wire diameter 8 Faac 428089 Standard rectangular arm 2815mm Faac 713002 Release key 402 Faac 721008 Spring wire dia. 5,5 Faac 428088 Standard rectangular arm 2315mm Faac 790281 Control unit 615/596 BPR (built-in) Faac 721007 Oval arm mounting spring S 7.5 mm Faac 428045 Oval arm Faac 721005 Oval arm mounting spring S 6.5 mm

Faac 104906 615BPR STANDARD orange Barrier unit 230V


Automatic barrier 230V 615BPR STANDARD orange.

FEATURES:

  • Hydraulic drive with opening and closing lock
  • Ideal for medium traffic loads and controlling small and medium-sized private areas
  • Hydraulic anti-theft protection
  • Manual unlocking mechanism with triangular key
  • Equipped with limit switches
  • Allows the use of the “Anti-Vandal” valve
  • Also available with the new oval arm with light support

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Type of motor - Single-phase asynchronous
  • Motor speed - 1,400 rpm
  • Max. power consumption - 220 W
  • Max. torque - 0 ÷ 400 Nm
  • Pump capacity - 1.5 l/min
  • Housing material - Steel
  • Protection type - 100 microns anti-corrosion protection, polyester paint RAL 2004-RAL 9006
  • Encoder - None
  • Slowdown type - Electronic with regulation
  • Arm type - Rectangular - Rectangular with apron - Articulated - Oval with lighting
  • Ambient temperature during operation - -20°C ÷ +55°C
  • Thermal protection - 120°C
  • Protection class - IP44
  • Weight of the device - 34 kg
  • Oil type - FAAC HP
  • Dimensions (LxDxH) - 270x140x1015 mm
  • Max. arm length - 5 m
  • Opening time - 5.7 sec. (90°)
  • Use frequency - 50%
  • Control unit - 615BPR (built-in)
