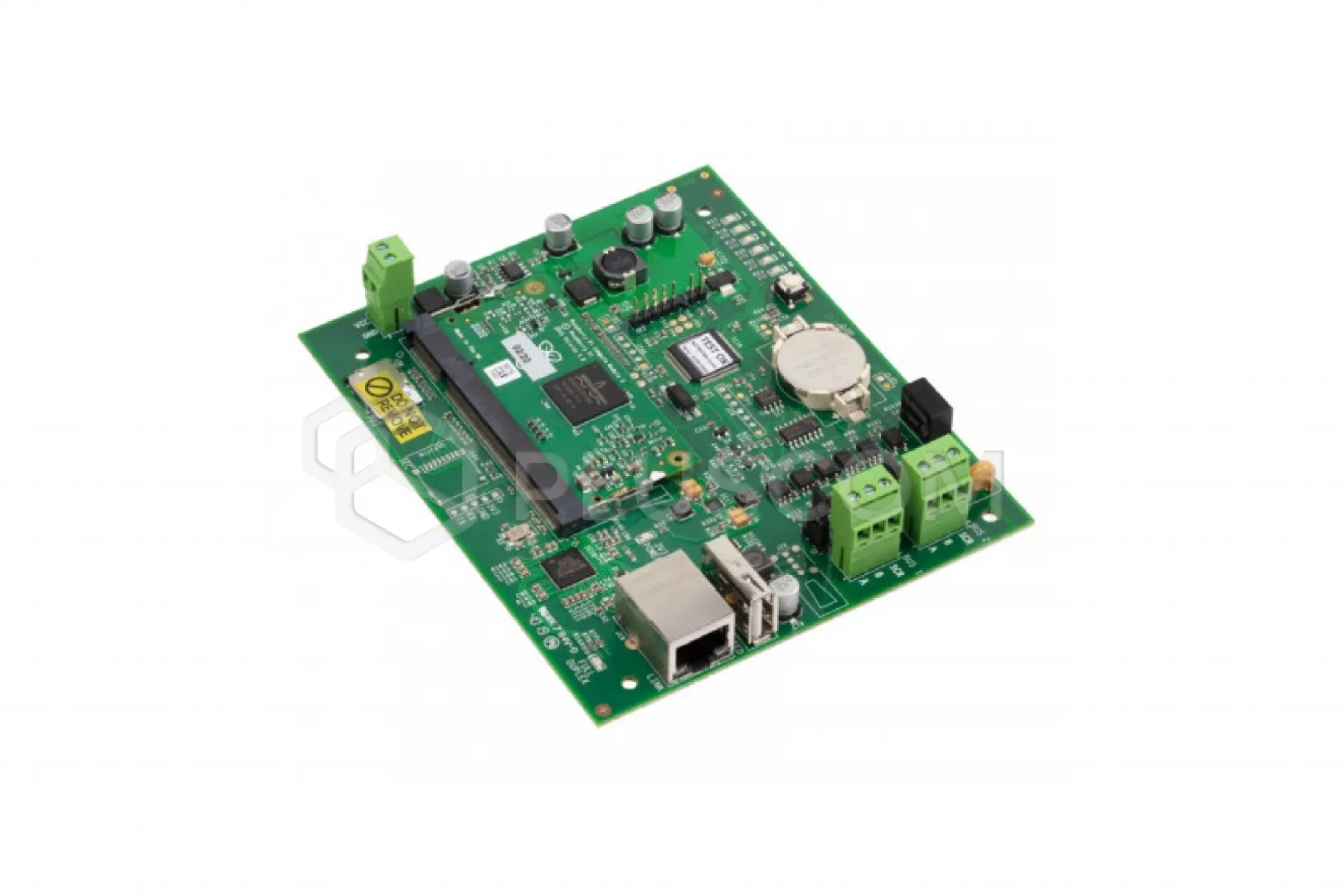

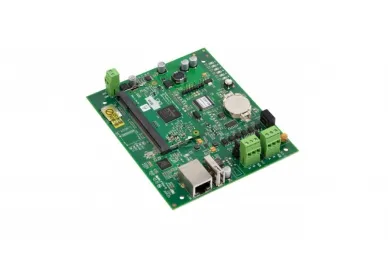

Faac 202317 Network Controller ENC 32

1074,54 EUR including 23.00% VAT
Product code: #27101
Manufacturer: Faac
  • Inputs: 1 x 10/100 Mb Ethernet port, 2 x RS 485 ports, 1 x USB port
  • Voltage: 12V DC
  • Manage up to 32 access points
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 202322 DIN rail power supply 12V DC/2 A/24W Faac Model E housing for the control unit

Faac 202317 ENC 32 Network Controller


ENC 32 Network Controller - control unit for managing the KEYDOM system.

FEATURES:

  • Based on SoM (System-On-Module) it is the basis of the entire KEYDOM access control system
  • Embedded KEYDOM software
  • Easy programming via web browser
  • Management of up to 32 access points

Technical data:

  • Inputs: 1 Ethernet port 10/100 Mb, 2 RS 485 ports, 1 USB port
  • Power supply voltage: 11÷15 V DC
  • Housing: Plastic, mod. E → see accessories
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Device dimensions: 132 x 110 mm
  • Housing dimensions (WxDxH): 204 x 85 x 265 mm
