Faac 2022805 Control unit 540 BPR

209,86 EUR including 23.00% VAT
Product code: #20636
Manufacturer: FAAC
  • Power supply: 230V AC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 109541 540 Industrial sectional door operator 230V Faac 109540 540 V Industrial sectional door operator 230V Faac 109512 540 V BPR Industrial sectional door operator 230V Faac 109511 540 BPR Industrial sectional door operator 230V

Faac 2022805 Control unit 540 BPR

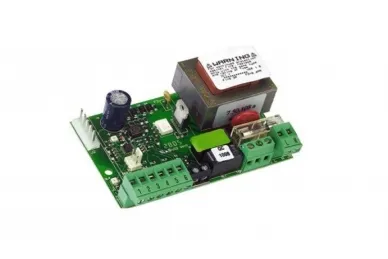

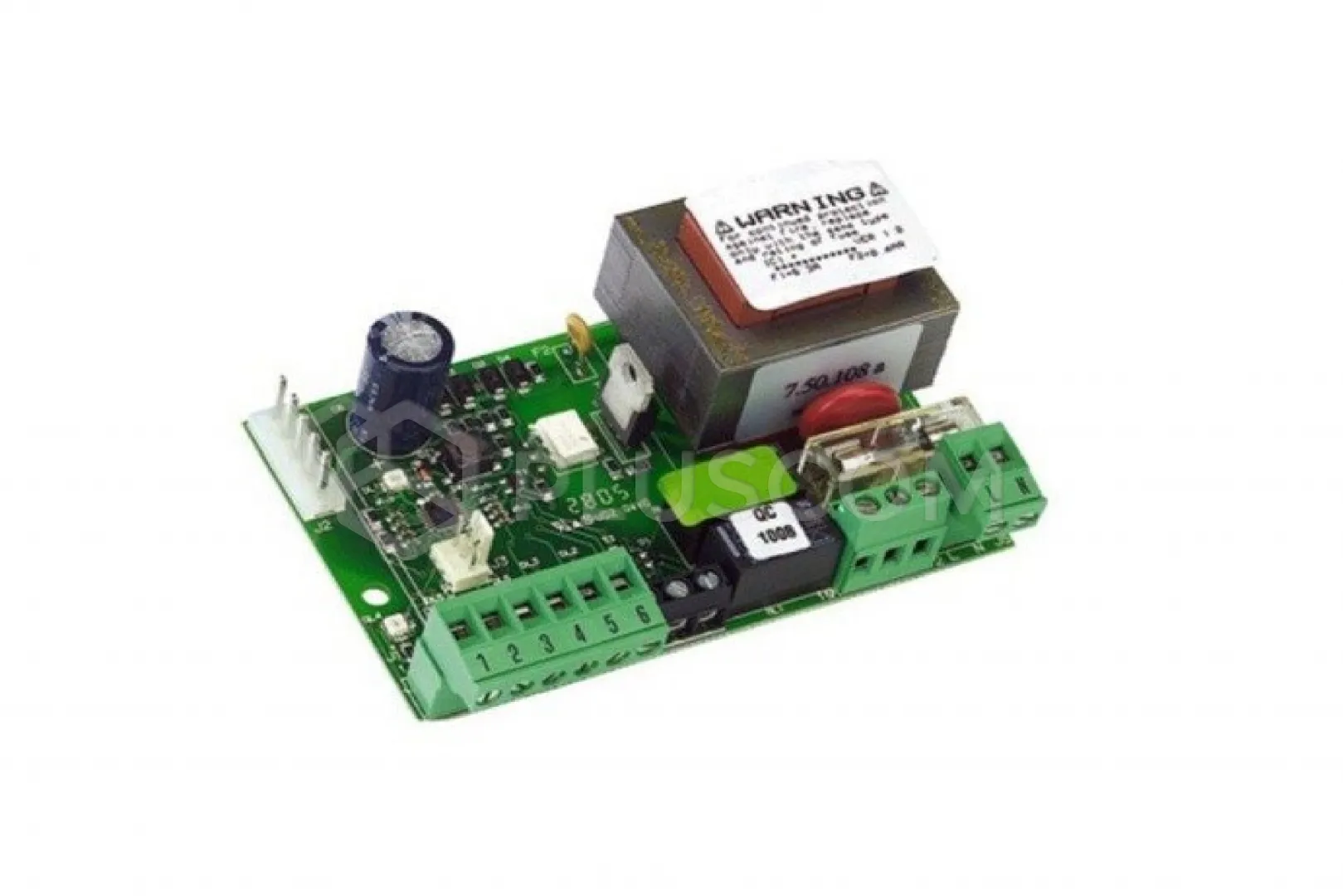

Faac 540BPR control unit built into the automation for sectional doors.

Technical data:

  • Power supply voltage: 230 V (+6% -10%) 50 (60) Hz
  • Power consumption (standby): 4 W
  • Max power consumption: 800 W
  • Max. load by accessories: 200 mA
  • Operating temperature range: -20°C +55°C
  • Fuses: F1= 6.3 A - 250 V ; F2= automatic reset
  • Working logic: B/C, B, C, EP, AP, P default = B/C
  • Working time (off): Automatic learning (0-10 min with steps of 2.5 sec) - default=10 min
  • Time to automatic closing: Automatic learning (0-5 min with steps of 1.5 sec) - default=30 min.
  • Control unit terminal inputs: Open/close/stop/closing protection/limiters/power supply
  • Control unit outputs: motor/24 V accessories power supply
  • Radio connector: Single-channel/dual-channel card receiver - decoding cards
  • Programmable functions: Logical
  • Memory functions: Working time, downtime

Compatible with:

Faac 2022805 Control unit 540 BPR in the diagram Faac 540
Faac 2022805 Control unit 540 BPR in the diagram Genius Mercury CV
